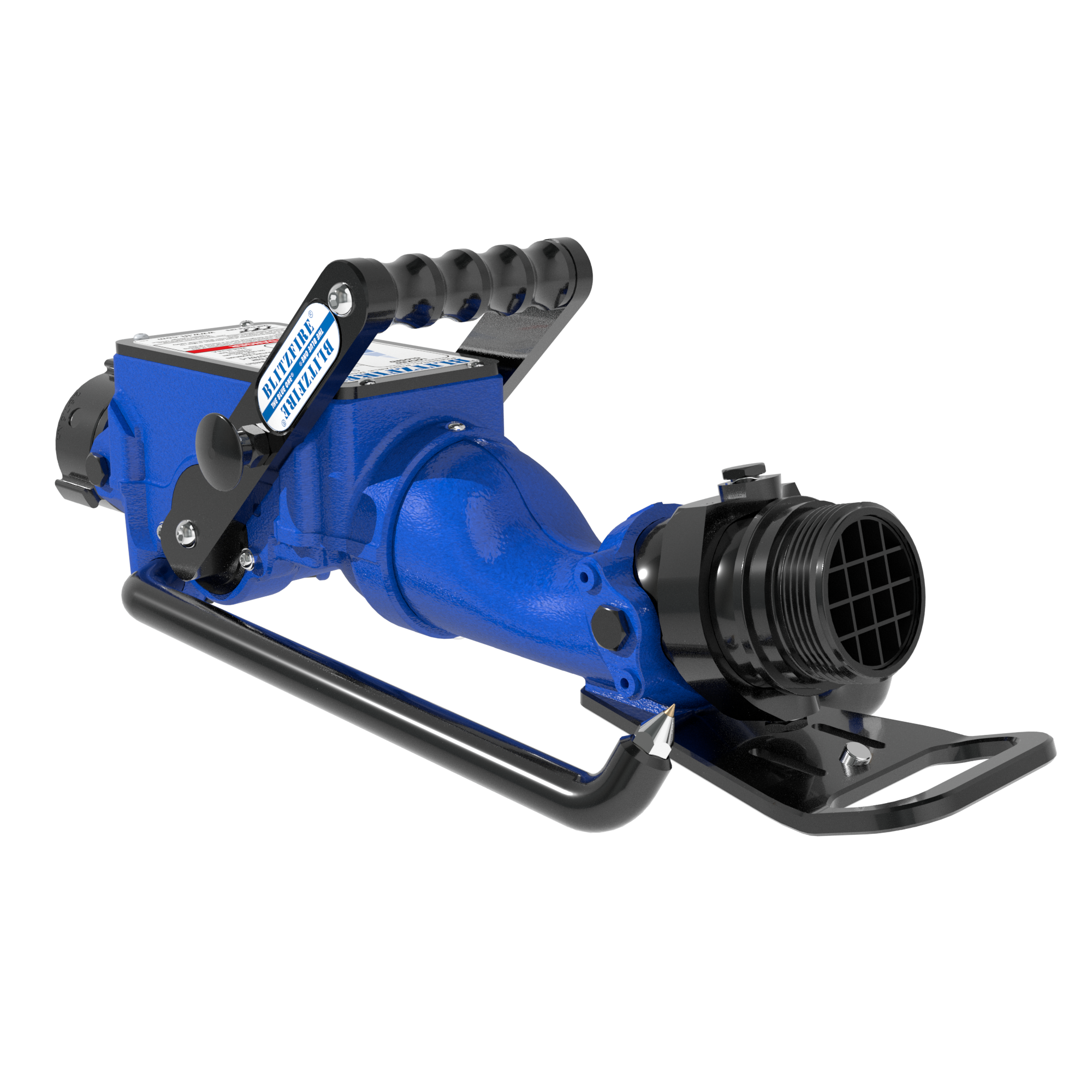

BlitzFire Portable Monitor – 2.5″ NHF Swivel Rocker Inlet, 2.5″ NHM Rigid Outlet

$4,680.00

SKU: XX111A Category: Tag: Brand:

The Best Ground Monitor Money Can Buy

Flow range up to 500 gpm (2000 l/min). The monitor features low friction inlet and outlet pivots. Outlet has built-in stream shaper. Elevation is manually adjustable between 10 and 46 degrees above horizontal. Horizontal rotation is manually adjustable 20 degrees either side of center. The SAFETY SHUT-OFF VALVE will shut off flow if monitor slides or lifts. It has six detent flow positions with a patented turbulence free slide valve for operator flow control. When the legs are folded, the carbide tips point up for carrying safety. The heavy-duty carbide tipped legs are easily folded out to a wide deployed stance. Stowed in storage bracket overall size is 29.5″L x 8.1″W x 8.5″H (74.9 x 20.6 x 21.6 cm). Standard inlet is 2.5″ NH (64mm) rocker lug swivel coupling. Standard outlet is 2.5″ NH (64mm) rigid male threads.

All Prices in USD

Specifications

Weight 24.500 lbs
Dimensions 36.00 × 9.00 × 9.00 in
Color

Brand

BlitzFire®

Bundle

Monitor Only

Monitor Type

Ground Attack

Monitor Supply Size (Imp)

2.5"

Monitor Supply Size (Met)

65 mm

Monitor Supply Type

NH Female

Monitor Supply Style

Rocker

Monitor Supply Swivel

Swivel

Monitor Horizontal Range

±20°

Monitor Vertical Range

10° – 46°

Monitor Control

Manual

Monitor Supply Inlets

Single

Monitor Outlet Size (Imp)

2.5"

Monitor Outlet Size (Met)

65 mm

Monitor Outlet Type

NH Male

Monitor Outlet Style

Male Threads

Monitor Outlet Swivel

Rigid

Max Flow Rate (GPM)

500 GPM

Max Flow Rate (LPM)

2000 LPM

Bundle Stream Straightener

Integrated

Monitor Valve Type

Slide Valve

Safety Features

Safety Shutoff & Tie Down Strap

Reviews

There are no reviews yet.

Be the first to review “BlitzFire Portable Monitor – 2.5″ NHF Swivel Rocker Inlet, 2.5″ NHM Rigid Outlet”

Your email address will not be published. Required fields are marked *

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
