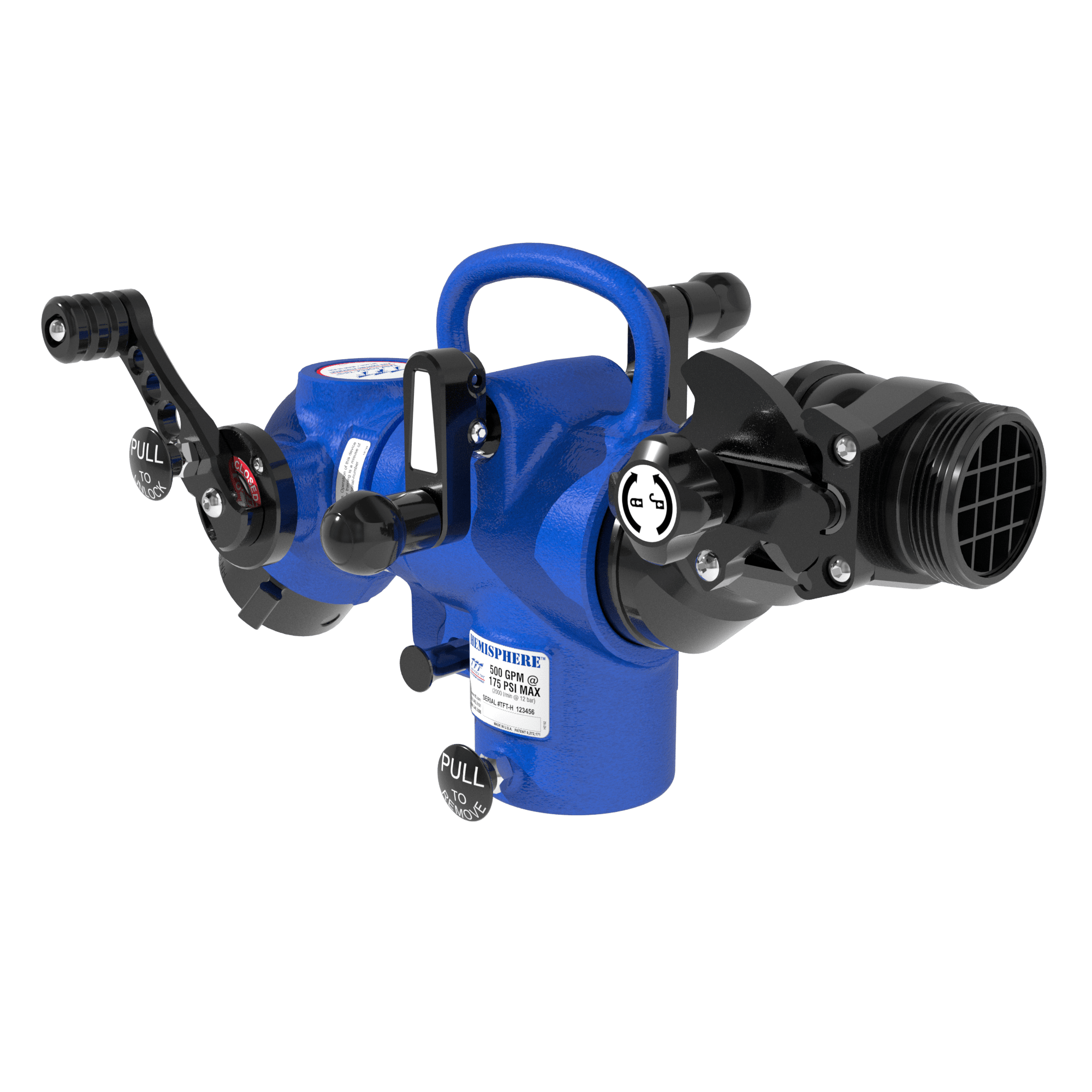

HEMISPHERE MONITOR-EN VERSION

$4,357.00

SKU: HPM132A Category:

2.5″BSP INLET & OUTLET

Flow range up to 500 gpm (2000 l/min). The monitor features a swiveling 90 degree valved inlet and a rotating swiveling outlet. The outlet is manually adjustable via a double ball swivel, angled 40 degrees from the main waterway, capable of sweeping 80 degrees, and can be rotated about the main waterway a full 360 degrees by a hand crank. Outlet has a built-in stream straightener. The quarter turn ball valve has a bail type handle, which locks in the closed position, to prevent accidental discharge. Attachment to the various mounting options is as easy as sliding the socket at the base of the monitor onto the quick attach mount. A rotation release lever that is separate from the release pin allows the monitor to be rotated about its mount without the need to release the monitor from its mount. Water pressurized pins prevent the monitor from rotating or releasing while flowing. A built-in carrying handle and lightweight aluminum construction make transport and deployment quick and easy. Standard inlet is 2.5″ NH (65 mm) rocker lug coupling. Standard outlet is 2.5″ NH (65 mm) rigid male threads.

All Prices in USD

Specifications

Weight 22.600 lbs
Package

Horizontal Movement (degrees)

Vertical Control

Oscillation

Valve Design

Safety Shutoff

Inlet

Horizontal Control

Alum Crank Handle

Vertical Movement (degrees)

Max Flow

Finish

Outlet

Operation Energy Source

High Elevation

N

Documents

Technical Specifications and Drawings

Service Procedures

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
