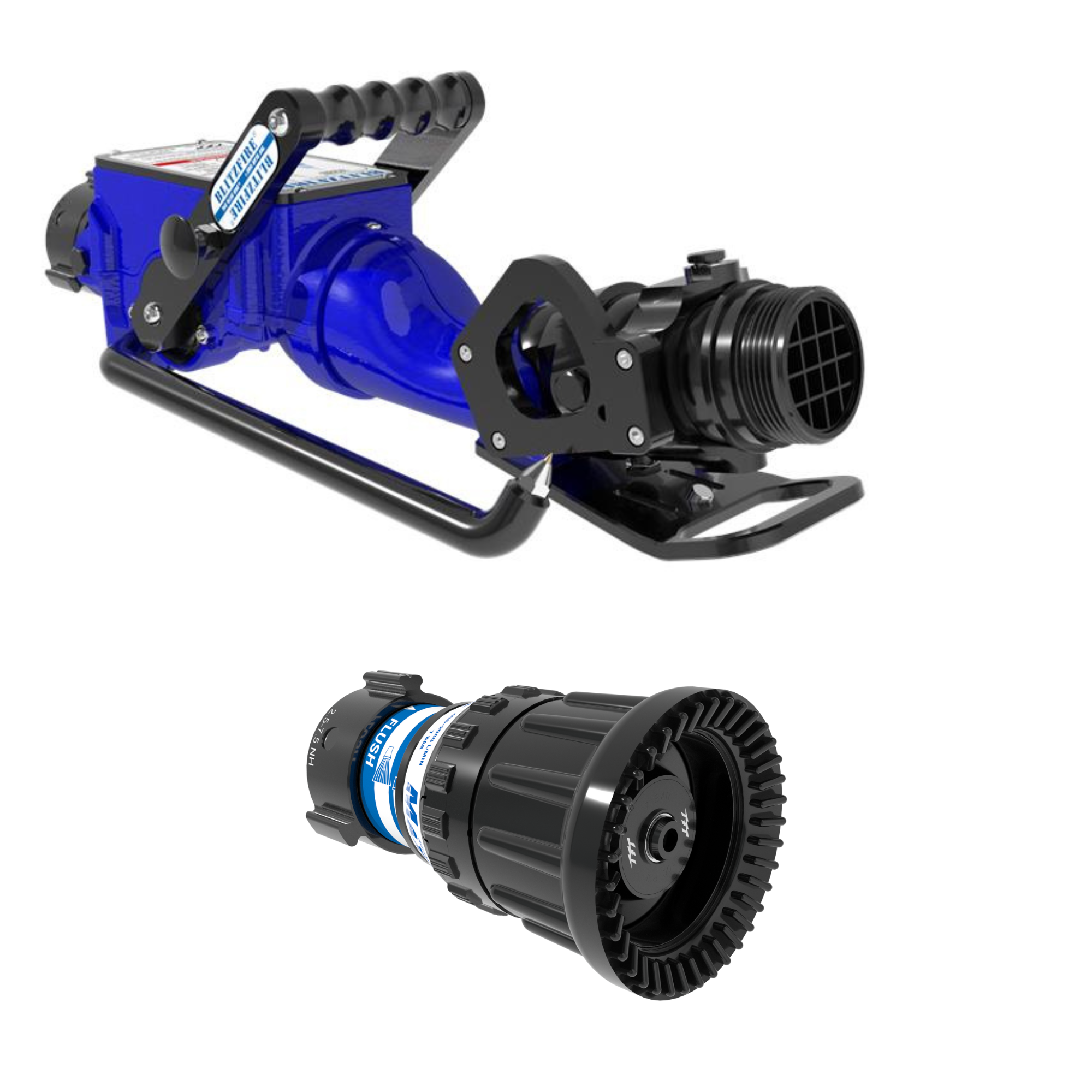

BlitzFire High Elevation Portable Monitor +Max-Matic Automatic Nozzle Package – 65 mm BSPF Swivel Rocker Inlet, 65 mm BSPM Outlet

$6,411.00

SKU: XXC32HENBBJ2 Category:

The Best Ground Monitor Money Can Buy

The BlitzFire® is an adaptable, high-performance portable water monitor, ideal for fire crews facing limited manpower or challenging firefighting conditions. Delivering up to 500 GPM (2000 LPM) with full control over water flow and attack angles, the BlitzFire® can be used in either attended or unattended mode. Its exclusive safety shutoff valve ensures operation under the safest possible conditions, while its compatibility with various nozzles and foam systems adds versatility to its use. Whether you need to adjust your stream angle to reach high or low locations, the BlitzFire® is a reliable, efficient solution that maximizes fireground capabilities.
BlitzFire® Storage Bracket (XX-B) Sold Separately

Key Features:

  • Flow Rate: Flows up to 500 GPM (2000 LPM) for powerful water delivery
  • Safety Shutoff Valve: Automatically shuts off water in case of unintentional monitor movement
  • Adjustable Attack Angles: 10°-46° for standard models; up to 86° for high elevation units
  • Slide Valve Control: Provides complete control with six distinct detent positions for precise stream management
  • Foam Compatibility: Compatible with various foam systems for enhanced fire suppression
  • Optional Oscillation: Covers a range of 20°, 30°, or 40° without manual adjustment for effective cooling and exposure protection
  • Carbide-Tipped Legs: Offers enhanced stability on uneven terrain
  • Compact Storage: Easily mounted or stored in apparatus compartments for rapid deployment

This Package Includes:

XX132A-HE – BlitzFire® High Elevation Monitor

  • 2.5” (65mm) BSPF Swivel Rocker Inlet
  • 2.5” (65mm) BSPM Outlet
  • Horizontal Movement: 20° left and right of center
  • Vertical Movement: 10°-86° above horizontal
  • Turbulence-free slide valve
  • Safety Shut-Off Valve

MD28A – Max-Matic Automatic Nozzle

  • 100 PSI (7 bar) Single Pressure Nozzle
  • Flow: 100-500 GPM (400-2000 LPM)
  • Stream: Straight stream to 120° wide fog

All Prices in USD

Specifications

Weight 0.000 lbs
Package

Oscillation

Safety Shutoff

Color

High Elevation

N

Brand

BlitzFire®

Storage Bracket

Not Included

Stream Straightener

Not Included

Horizontal Range

±20°

Vertical Range

10° – 86°

Max GPM

500 GPM

Max LPM

2000 LPM

Safety

Safety Shutoff & Tie Down Strap

Bundle

Monitor Package

Portable Monitor Valve Type

Slide Valve

Bundle Nozzle Type

Automatic

Bundle Nozzle Brand

Max-Matic

Portable Monitor Type

High Elevation

Monitor Hose Inlets

Single

Monitor Hose Size (Imp)

2.5"

Monitor Hose Size (Met)

65 mm

Monitor Hose Type

BSP Female

Monitor Hose Style

Rocker Lugs

Monitor Hose Swivel

Swivel

Monitor Nozzle Size (Imp)

2.5"

Monitor Nozzle Size (Met)

65 mm

Monitor Nozzle Type

BSP Male

Monitor Nozzle Style

Male Threads

Monitor Nozzle Swivel

Rigid

Documents

Technical Specifications and Drawings
