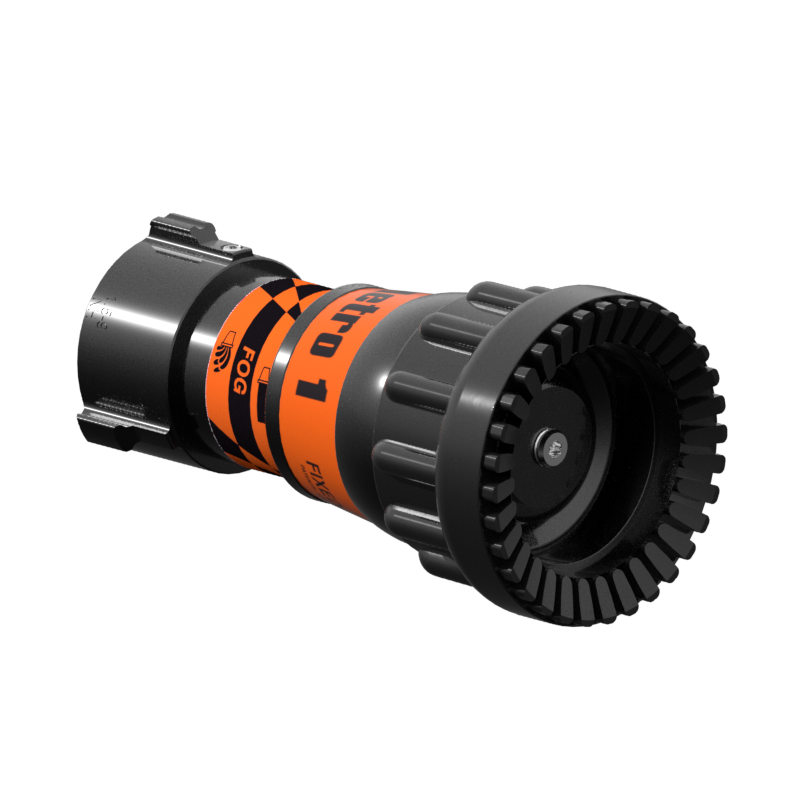

Metro 1 Fixed Flow Nozzle Tip – 160 GPM at 50 PSI, 1.5″ NHF Rigid Inlet, Rubber Teeth

$909.00

SKU: ME1TO-226 Category: Tag: Brand:

1.5″ Fixed Flow Handline Firefighting Nozzle

Fixed gallonage tip with flush without shutting down. Lightweight hard coat anodized aluminum for maximum resistance to corrosion and wear. Tip does not shut off and must be used with a separate valve or valved playpipe. 1.5″ NH (38mm) rigid rocker lug coupling is standard

All Prices in USD

Specifications

Weight 2.350 lbs
Dimensions 10.00 × 10.00 × 6.00 in
Color

Brand

Metro™

Nozzle Type

Fixed Flow

Nozzle Valve Style

Sold Separately

Nozzle K-Factor

22.6

Nozzle Teeth

Fixed Rubber

Certifications

NFPA Compliant

Nozzle Style

Tip Only

Target Nozzle Flow (Imp)

160 GPM

Target Nozzle Flow (Met)

600 LPM

Target Nozzle Pressure (Bar)

3 Bar

Target Nozzle Pressure (KPA)

300 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Rigid

Product Length (Imp)

7.2"

Product Length (Met)

18.29 cm

Product Weight (Imp)

2.5 lbs

Product Weight (Met)

1.13 kg

Target Nozzle Pressure (PSI)

50 PSI
