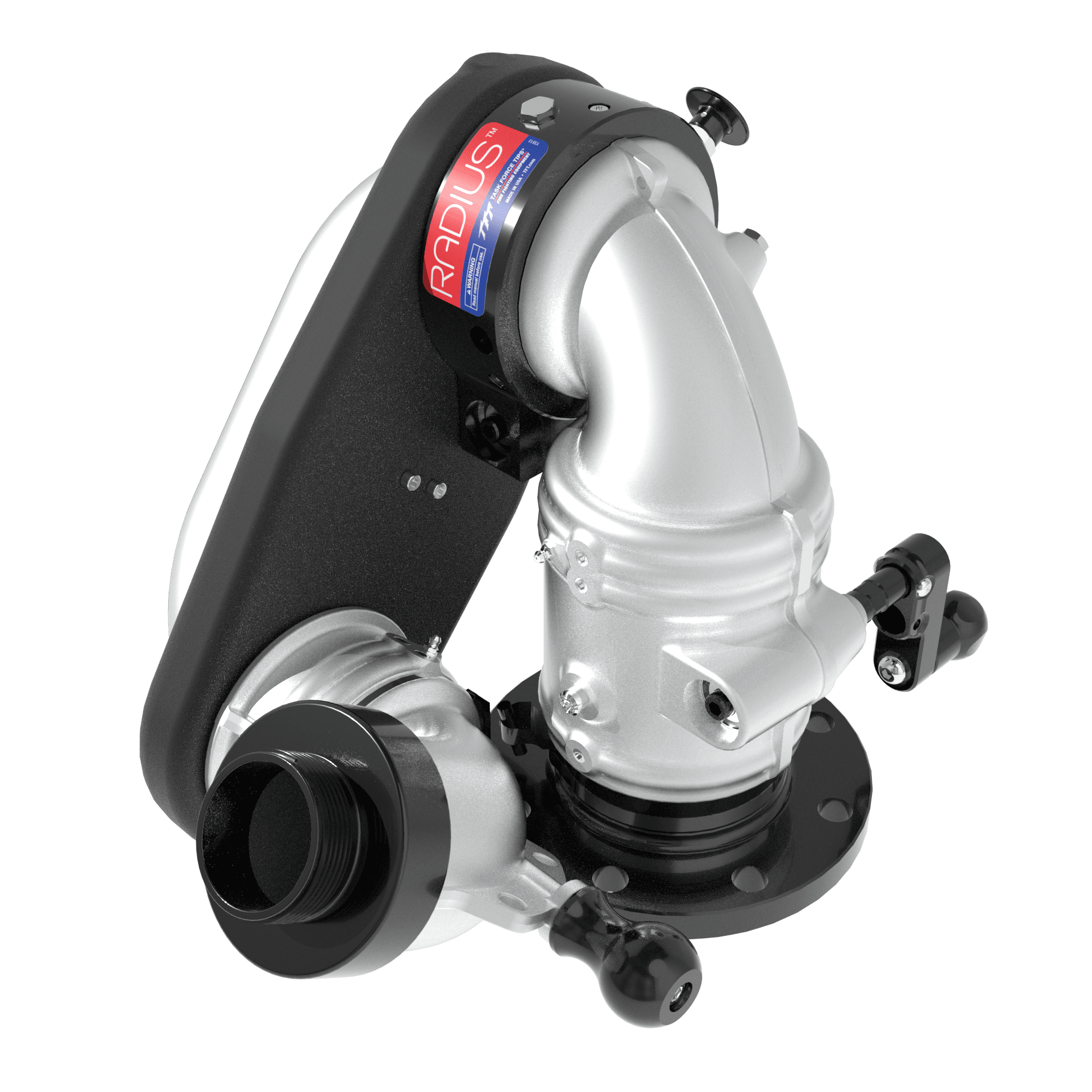

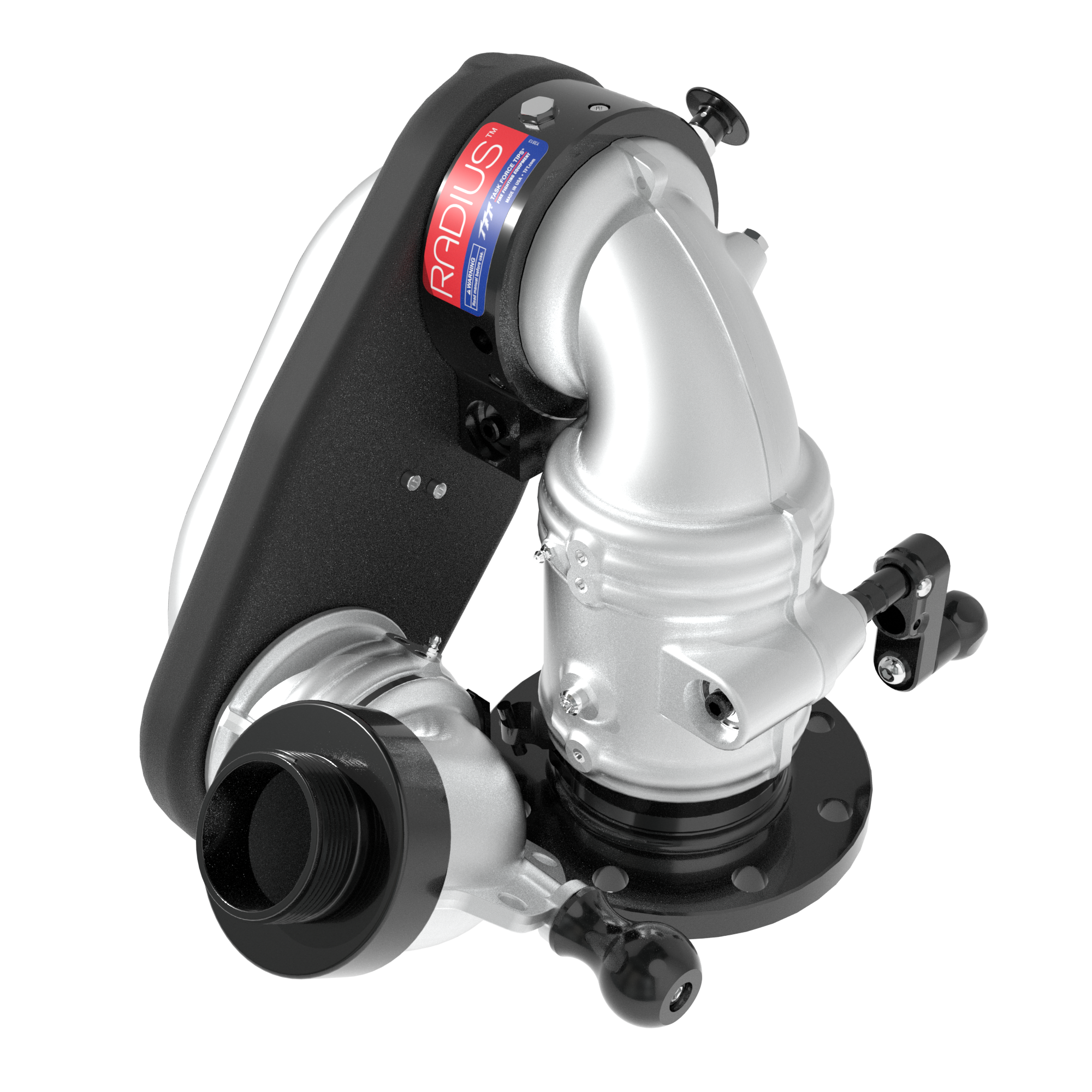

Radius Dual Crank 1500 GPM (6000 LPM) Extendable Monitor, Standard – 4″ (100 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 2.5″ (65 mm) BSPM Rigid Outlet, 12 VDC Acc. Power, Silver

$7,303.00

image_pdf
SKU: Y35-D15A Category:

Exceptional Reach & Maneuverability for High-Volume Water Flow

The Radius™ Fixed Monitor is designed to provide maximum height and water flow for deck-mounted firefighting applications. With a nozzle outlet capable of nearly 24” (600 mm) elevation and flows up to 1500 GPM (6000 LPM), Radius delivers unmatched performance for both new and retrofit apparatus installations.

Key Features:

  • High-Flow Capacity: Radius offers a flow rate of up to 1500 GPM (6000 LPM), making it ideal for high-demand firefighting scenarios
  • Elevated Nozzle Outlet: Achieve nearly 24” (600 mm) of nozzle height above the deck, enhancing stream reach and reducing obstructions for better targeting
  • Versatile Installation: Suitable for both new apparatus and retrofits, the above-deck mounting eliminates the need for below-deck extension tubes, ensuring compatibility with various vehicle designs
  • 360° Continuous Horizontal Rotation: The monitor provides unrestricted horizontal movement, allowing precise stream direction with a smaller swing radius compared to competitive models
  • Wide Vertical Range: Offers 90° elevation above horizontal and 45° downward travel, providing optimal coverage for diverse firefighting challenges
  • Flow in Any Position: Radius maintains full operational capability in both deployed and stowed positions, ensuring readiness for action at any time
  • Quick Deployment: The simple pull-and-lift mechanism with a quick-release knob enables rapid deployment – once locked in place, the monitor is ready to flow
  • Reliable Stow Sensor: Includes a standard stowed sensor kit to alert operators whether the monitor is stowed or deployed, enhancing operational safety
  • Flexible Connections: Easily mounts to 3” or 4” (75 mm or 100 mm) apparatus connections, making it compatible with a variety of vehicles and configurations
  • Durable Construction: Built with high-quality materials to withstand demanding firefighting conditions, ensuring long-lasting reliability and performance

All Prices in USD

Specifications

Weight 37.250 lbs
Oscillation

Remote Control

N

Color

Brand

Radius™

Max GPM

1500 GPM

Max LPM

6000 LPM

Monitor Nozzle Size (Imp)

2.5"

Monitor Nozzle Size (Met)

65 mm

Monitor Nozzle Type

BSP Male

Monitor Nozzle Style

Male Threads

Monitor Nozzle Swivel

Rigid

Fixed Monitor Type

Standard

Monitor Actuation Type

Dual Cranks

Monitor Accessory Power

12 VDC

Fixed Monitor Bundle

Monitor Only

Monitor Supply Size (Imp)

4"

Monitor Supply Size (Met)

100 mm

Monitor Supply Type

ANSI 150/DN100 PN16

Monitor Supply Style

Flange

Monitor Supply Swivel

Rigid

Monitor Horizontal Control

Crank

Monitor Horizontal Range

360°

Monitor Vertical Control

Crank

Monitor Vertical Range

-45° – 90°

Documents

Technical Specifications and Drawings

Service Procedures

Instructions For Installation, Safe Operation and Maintenance
