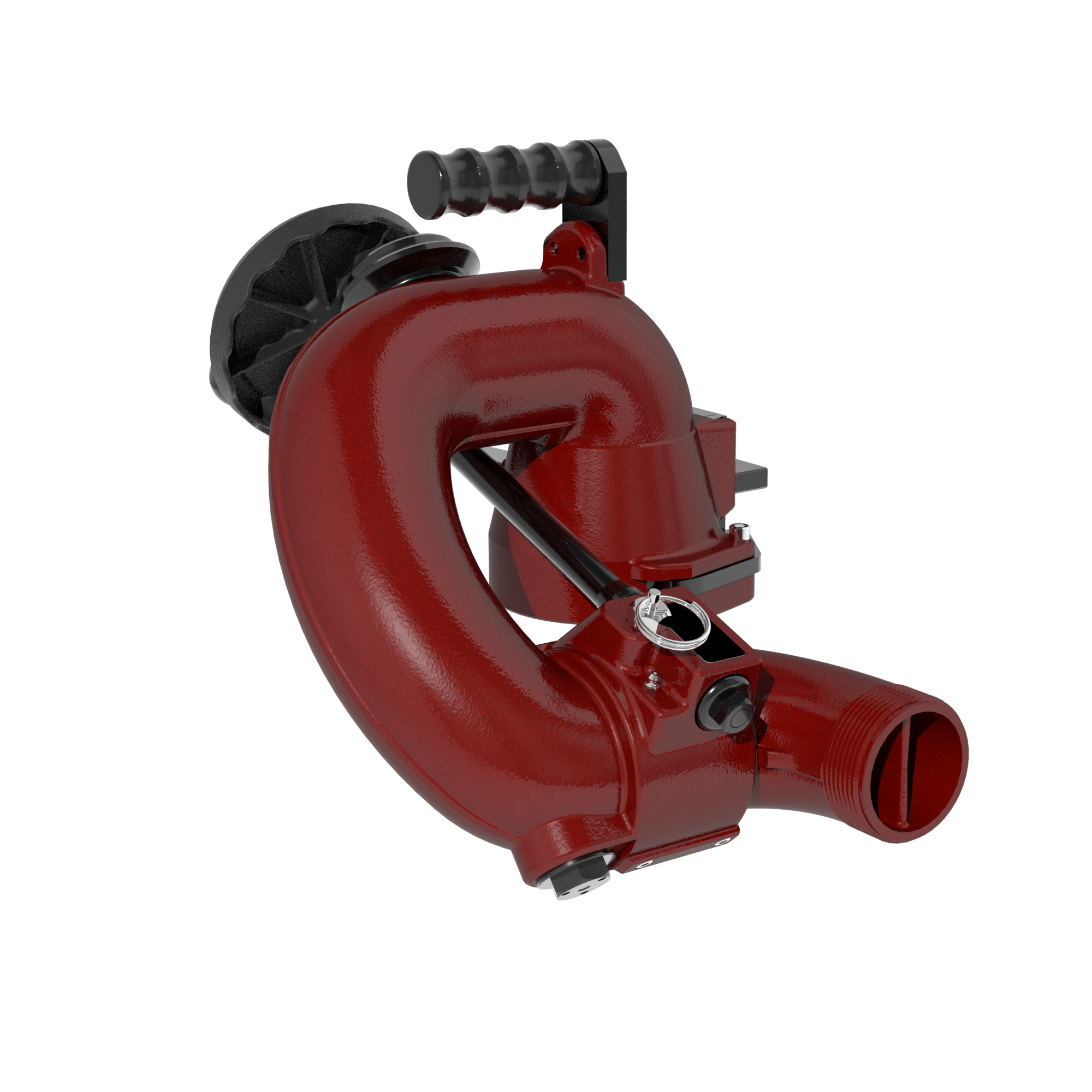

CrossFire Monitor Top – 65 mm BSPM Outlet

Call for Price: 219-462-6161

SKU: XFT-BJ Category:

Versatile Monitor Tops for Deck Guns or Bases

CrossFire® Monitor Tops offer versatile use as a truck-mounted deck gun or a portable monitor with easy attachment options. With a large 3.25” (83 mm) waterway, these tops provide powerful flow rates up to 1250 GPM (4500 LPM) with low friction loss. Featuring a secure connection, visual verification, and integrated pressure control, these monitors ensure stability and reliable performance during critical operations.
SafeTak Base & Nozzles Sold Separately

Key Features:

  • Flow Rate : Delivers up to 1250 GPM (4500 LPM) with low friction loss for powerful suppression
  • Connection Versatility : Easily attaches to a truck-mounted flange or portable base
  • Pressure-Controlled Lock : Water pressure-locked release prevents accidental disengagement
  • Quick Position Adjustment : Handwheel provides seven turns from vertical to stop elevation
  • 360° Rotation : Enables full horizontal range for coverage flexibility
  • Pressure Gauge : Highly visible gauge for precise monitoring
  • Automatic Drain Valve : Built-in valve for convenient maintenance

All Prices in USD

Specifications

Weight 16.100 lbs
Package

Oscillation

Safety Shutoff

Color

High Elevation

N

Brand

CrossFire®

Storage Bracket

Not Included

Stream Straightener

Not Included

Horizontal Range

360°

Vertical Range

90° – 90°

Max GPM

1250 GPM

Max LPM

4500 LPM

Safety

None

Bundle

Monitor Top Only

Portable Monitor Valve Type

Valveless

Bundle Nozzle Type

Not Included

Bundle Nozzle Brand

Not Included

Portable Monitor Type

Standard

Monitor Hose Inlets

None

Monitor Hose Size (Imp)

None

Monitor Hose Size (Met)

None

Monitor Hose Type

None

Monitor Hose Style

None

Monitor Hose Swivel

None

Monitor Nozzle Size (Imp)

2.5"

Monitor Nozzle Size (Met)

65 mm

Monitor Nozzle Type

BSP Male

Monitor Nozzle Style

Male Threads

Monitor Nozzle Swivel

Rigid

Documents

Technical Specifications and Drawings

Service Procedures

Instructions For Installation, Safe Operation and Maintenance
