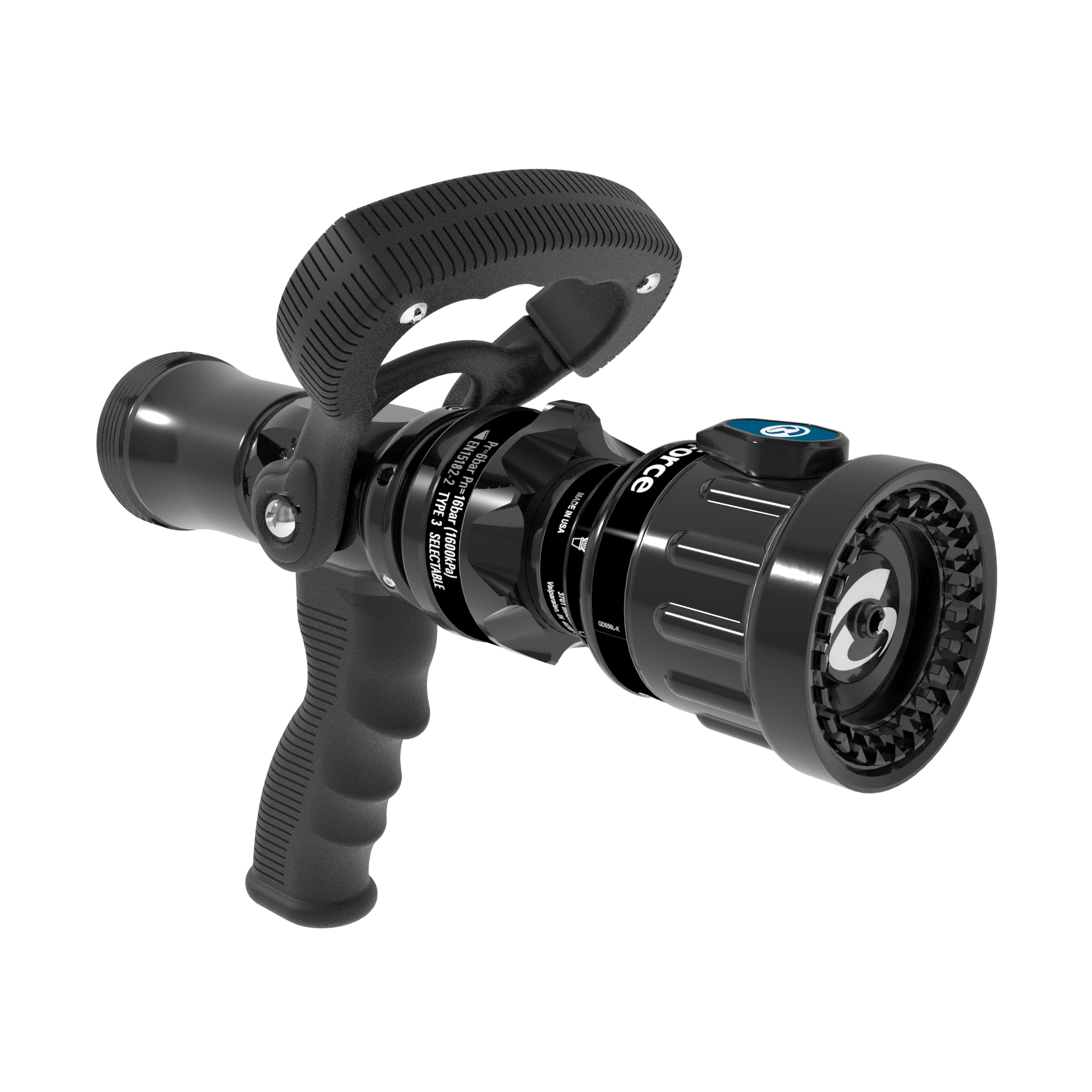

G-Force Selectable One-Piece Pulsing EN PN16 Nozzle With Pistol Grip, Slide Valve – 100/235/400 LPM @ 6 Bar, 52 mm BSPM Swivel Inlet, Metal Teeth, Shaper Indicator Detent

Call for Price: 219-462-6161

image_pdf
SKU: GDPG3F2M Category:

Tailored Performance

G-Force® Selectable nozzles allow firefighters to switch between multiple flow settings, adapting quickly to specific fireground requirements. Available in various inlet sizes, the G-Force® Selectable nozzles offer intuitive control with a tactile shaper indicator and durable build for enhanced reliability. Ideal for crews seeking precise water control with the flexibility to adjust flows as needed, these nozzles support advanced firefighting tactics in any situation.

Key Features:

  • Multiple Flow Settings: Choose from various flow rates to match firefighting demands, up to 150 GPM (570 LPM)
  • Slide Valve Control: High-quality valves for smooth, responsive adjustments
  • Customizable Fog Teeth: Options include fixed rubber, spinning metal, or fixed cut metal
  • Pattern Selector: Tactile shaper indicator for intuitive stream pattern selection
  • Hard Anodized Body: Lightweight aluminum body for ease of handling and corrosion resistance
  • Pistol Grip & Trigger Options: Available with ergonomic grip styles for better maneuverability and triggers for advanced firefighting tactics
  • Reflective Markings: Increases visibility of operational markings in all conditions
  • Enhanced Safety: Bonded rubber bumper for durability and improved safety during intense use

All Prices in USD

Specifications

Weight 3.900 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

G-Force®

Nozzle Type

Selectable

Nozzle Valve Style

Slide Valve

Nozzle Teeth

Fixed Metal

Certifications

EN 15182-2 PN16

Nozzle Style

One-Piece

Nozzle Grip

Pistol

Target Nozzle Flow (Imp)

25/60/100 GPM

Target Nozzle Flow (Met)

100/235/400 LPM

Target Nozzle Pressure (Bar)

6 Bar

Target Nozzle Pressure (KPA)

600 KPA

Nozzle Hose Size (Imp)

2"

Nozzle Hose Size (Met)

52 mm

Nozzle Hose Connection Type

BSP Male

Nozzle Hose Coupling Style

Male Threads

Nozzle Hose Coupling Swivel

Swivel

Nozzle Shaper Indicator

Shaper Indicator Detent

Nozzle Pulsing & Flashover

Pulsing Nozzle

Target Nozzle Pressure (PSI)

80 PSI

Documents

Instructions For Installation, Safe Operation and Maintenance

Certifications & Approvals
