SMOOTH BORE INSERT KIT

Call for Price: 219-462-6161

SKU: F140SBI Category:

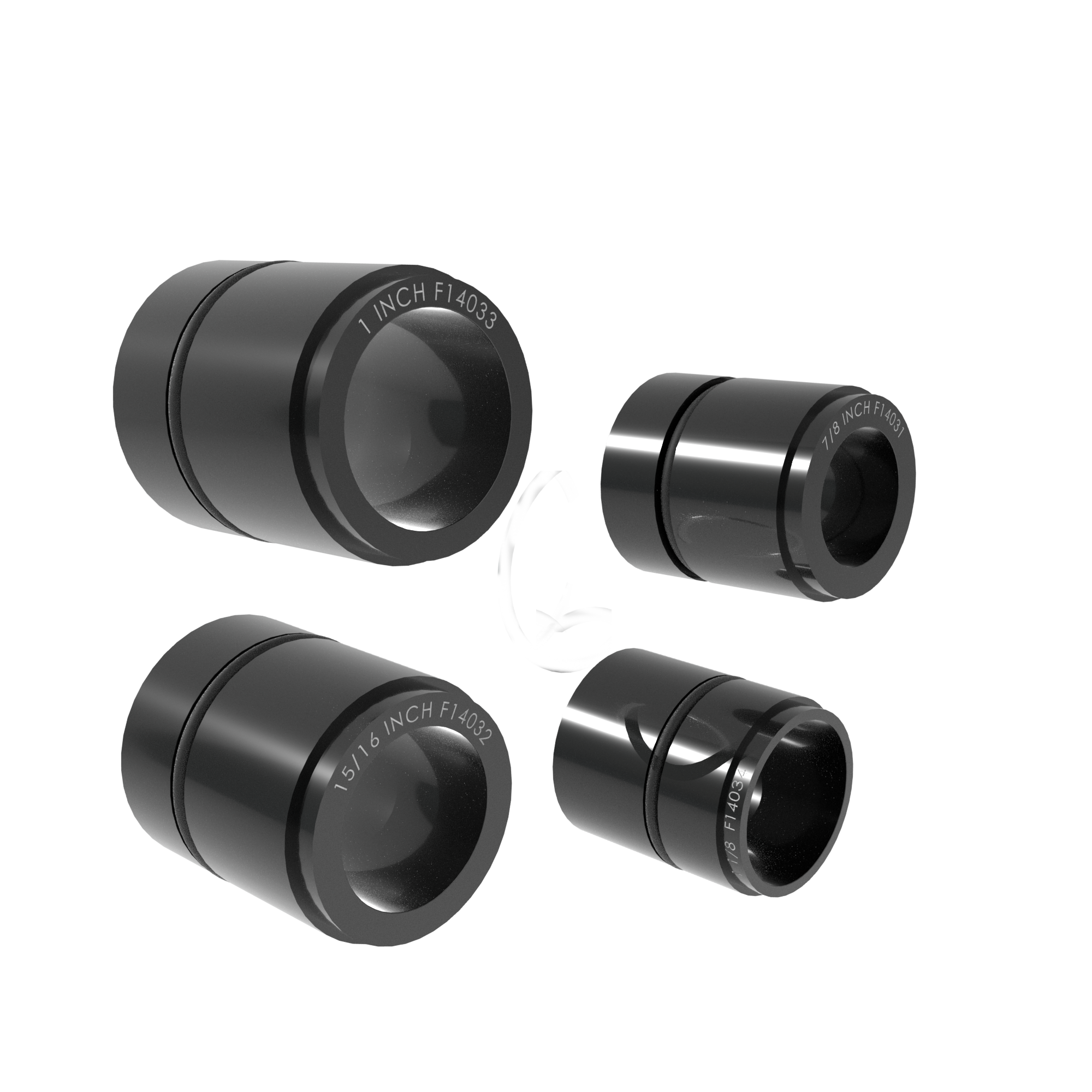

7/8 15/16 1.0 1-1/8″ DIAMETER INSERTS

a compact way to combine a smooth bore, shut off, and fog nozzle. TFT has reduced the weight and length of the total assembly by placing the smooth bore nozzle inside the actual ball valve. Comes standard with 7/8″, 15/16″, 1″ and 1-1/8″ (22 mm, 24 mm, 25 mm and 28 mm) smooth bore inserts. The changeover from one size to another requires no tools. Simply slide the tip out the BACK of the valve and slide in the new size. Fits H-VO, H-VOI, H-2VO, H-2VOI, H-VIT, H-VITG, H-2VIT, H-2VITG, and H-2VPPIT.

All Prices in USD

Specifications

Weight 0.100 lbs
Type

Smoothbore

Outlet Diameter

7/8" & 15/16" & 1" & 1-1/8" (22mm, 24mm,25mm,28mm)

Reviews

There are no reviews yet.

Be the first to review “SMOOTH BORE INSERT KIT”

Your email address will not be published. Required fields are marked *

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
