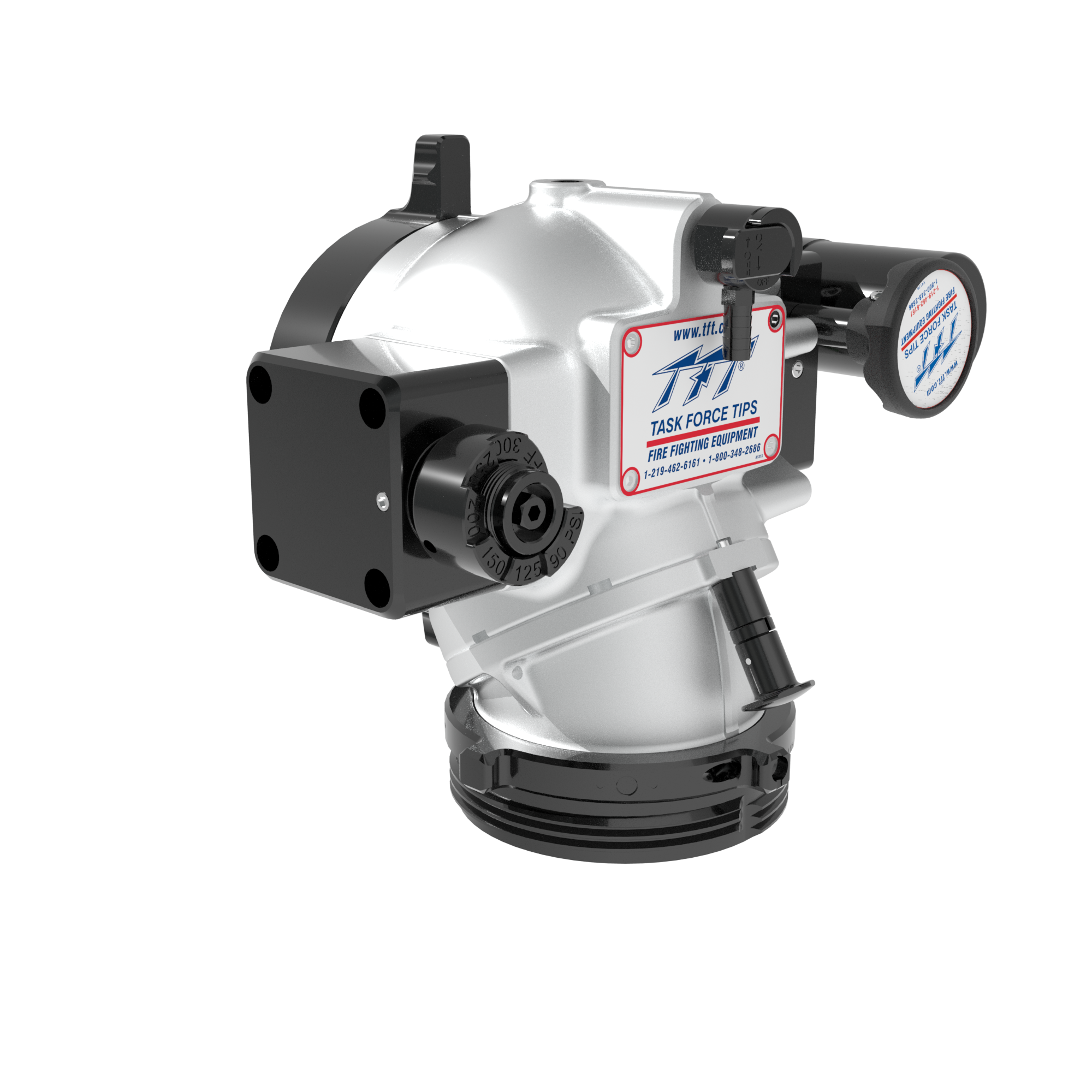

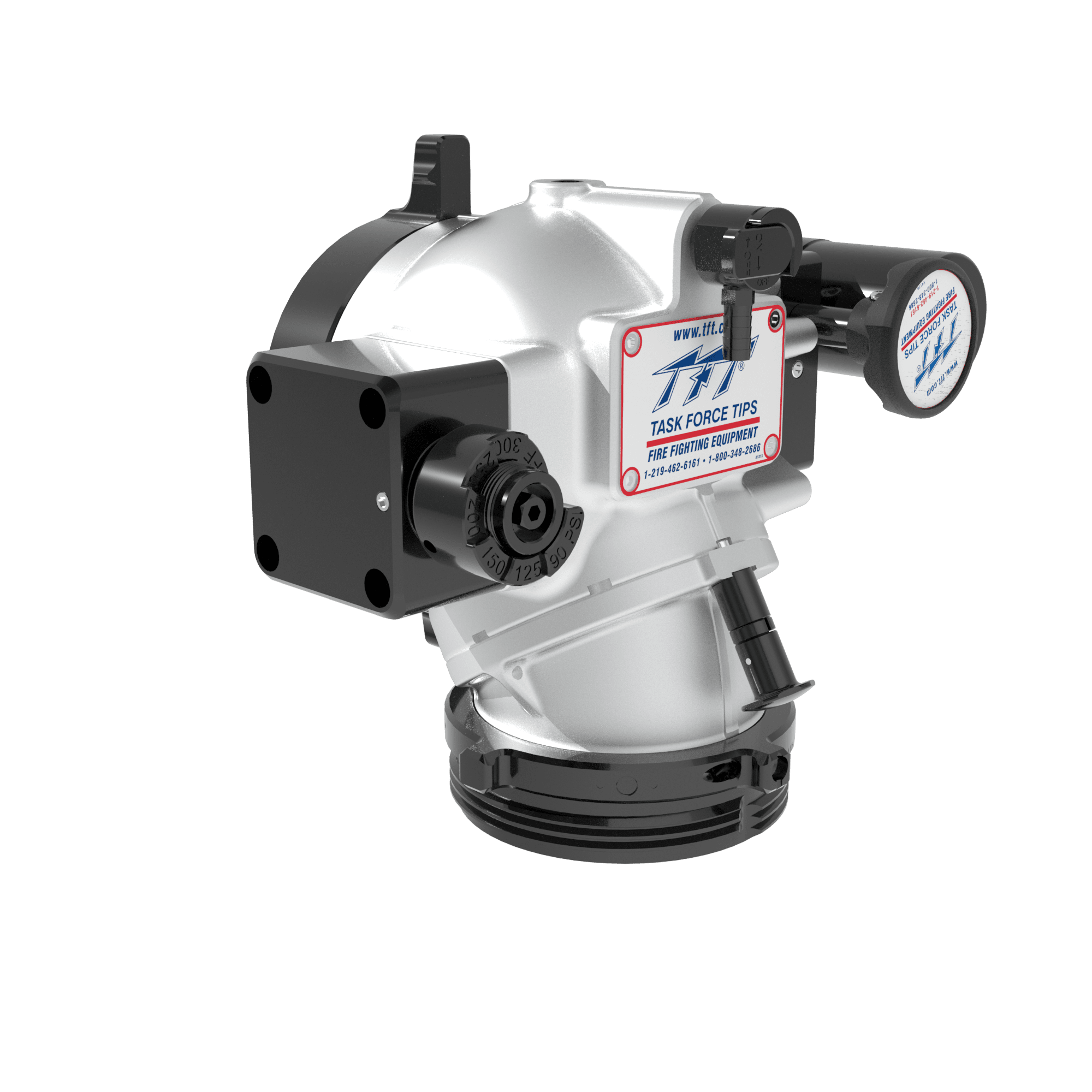

Jumbo Low-Profile RC Intake Valve, Right Mount Electronics, Swiveling Elbow – 6″ NHM Rigid Street-Side, 6″ NHF Swivel Truck-Side, Pressure Relief Valve

Call for Price: 219-462-6161

SKU: AXE8NX-NX-RC Category:

Low-Profile Design & Best-In-Class Flow Rates

The Jumbo Low-Profile Ball Intake Valves are designed for tight apparatus compartments and high-flow applications. With manual and remote control options, they come in swiveling elbow configurations for easy hose connections. The valves offer compatibility with Storz and NH thread types and feature optional pressure relief valves for added safety. Their low-profile design ensures they are ideal for compact setups, while maintaining high water flow and durability.

Key Features:

  • Low-Profile Design: Fits compact setups while still supporting high water flow.
  • Swiveling Elbow Configuration: Enhances hose connection flexibility in tight spaces.
  • Manual and Remote Control Options: Available with top crank, front crank, or remote controls for versatile operation.
  • Storz and NH Thread Compatibility: Ensures wide compatibility with firefighting apparatus connections.
  • Pressure Relief Valve Option: Helps regulate and prevent overpressure, ensuring system safety.
  • Durable Construction: Built to withstand tough firefighting conditions while maintaining performance.
  • Handles High-Flow Applications: Designed for effective water flow in high-demand firefighting operations.

All Prices in USD

Specifications

Weight 35.150 lbs
Pressure Relief Valve

Detent Swivel

Remote Control

N

LDH Outlet

LDH Inlet

Valve Control Type

Remote Control

Valve Control Location

Right Electronics

Valve Elbow Style

Swiveling

Bleeder Valve

Included

Street-Side Connection Type

NH Male

Street-Side Coupling Style

Male Threads

Street-Side Coupling Swivel

Rigid

Truck-Side Coupling Style

Handles

Truck-Side Coupling Swivel

Swivel

Intake Valve Style

Jumbo Low-Profile

Valve PRV Style

Plain Outlet

Valve PRV Location

Left Mount

Street-Side Size (Imp)

6"

Street-Side Size (Met)

150 mm

Truck-Side Size (Imp)

6"

Truck-Side Size (Met)

150 mm

Truck-Side Thread Type

NH Female

Waterway Size (Met)

133 mm

RC Manual Override

Control Knob

Waterway Size (Imp)

5.25"

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
