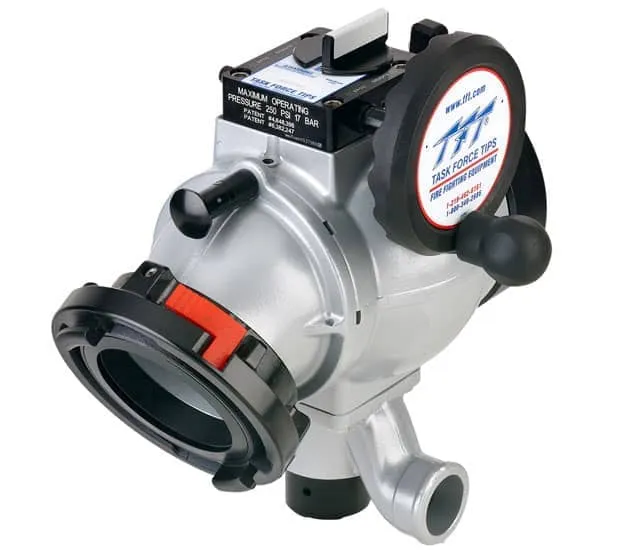

Jumbo Intake Valve, Right Handwheel Controls, Swiveling Elbow – 6″ Storz Rigid Street-Side, 6″ NHF Swivel Truck-Side, Pressure Relief Valve

$3,371.00

SKU: AX1SX-NX Category:

Best-In-Class Flow Rates

Jumbo Ball Intake Valves are designed for high-flow firefighting operations, offering reliable water delivery in demanding situations. Featuring manual and remote control options, these valves accommodate both straight and swiveling elbow designs for optimal maneuverability and hose connection. With various Storz and NH thread configurations, the Jumbo Ball Intake Valves ensure seamless integration into a wide range of apparatus setups. The inclusion of an optional pressure relief valve adds a layer of safety, while their rugged construction provides long-lasting durability in harsh conditions.

Key Features:

  • High-Flow Design: Engineered to handle large water volumes, ideal for high-demand firefighting operations.
  • Straight and Swiveling Elbow Options: Available in both straight and swiveling elbow styles to improve connection flexibility.
  • Top Crank and Handwheel Controls: Choose between manual top crank or right-handwheel controls for easy operation and water flow management.
  • Storz and NH Thread Compatibility: Compatible with a wide range of Storz and NH thread configurations for versatile apparatus integration.
  • Pressure Relief Valve: Optional pressure relief valve helps maintain safe system pressure and prevents overpressure issues.
  • Durable Construction: Built from high-quality materials to withstand extreme conditions and ensure long-lasting performance.
  • Remote Control Option: Available in remote-control versions for enhanced operational flexibility.

All Prices in USD

Specifications

Weight 34.000 lbs
Pressure Relief Valve

Detent Swivel

Remote Control

N

LDH Outlet

LDH Inlet

Valve Control Type

Manual

Valve Control Location

Right Handwheel

Valve Elbow Style

Swiveling

Bleeder Valve

Included

Street-Side Connection Type

STORZ

Street-Side Coupling Style

Quick-Connect

Street-Side Coupling Swivel

Rigid

Truck-Side Coupling Style

Handles

Truck-Side Coupling Swivel

Swivel

Intake Valve Style

Jumbo

Valve PRV Style

Plain Outlet

Valve PRV Location

Bottom Mount

Street-Side Size (Imp)

6"

Street-Side Size (Met)

150 mm

Truck-Side Size (Imp)

6"

Truck-Side Size (Met)

150 mm

Truck-Side Thread Type

NH Female

Waterway Size (Met)

133 mm

Waterway Size (Imp)

5.25"

Documents

Technical Specifications and Drawings

Service Procedures

Product Order Forms

Instructions For Installation, Safe Operation and Maintenance
