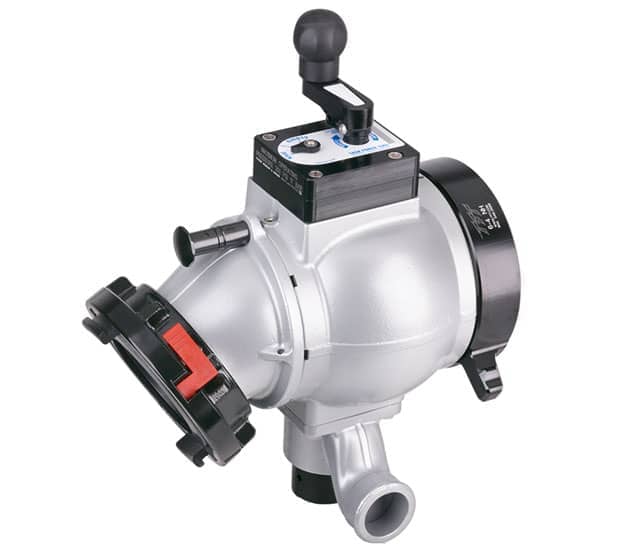

Jumbo Intake Valve, Top Crank Controls, Swiveling Elbow – 5″ Storz Rigid Street-Side, 6″ NHF Swivel Truck-Side, Pressure Relief Valve

$3,472.00

SKU: AX1ST-NX-PS Category: Tag:

Best-In-Class Flow Rates

All Prices in USD

Specifications

Weight 31.500 lbs
Dimensions 18.00 × 18.00 × 14.00 in
Color

Valve Type

Jumbo

Valve Control Location

Top Crank

Valve PRV Style

Plain Outlet

Valve PRV Location

Bottom Mount

Waterway Size (Met)

133 mm

Waterway Size (Imp)

5.25"

Valve Control Style

Manual Crank

Valve Elbow

Swiveling

Valve Flow Direction

Bi-Directional

Valve Inlet Count

Single

Valve Inlet Size (Imp)

5"

Valve Inlet Size (Met)

125 mm

Valve Inlet Type

Storz

Valve Inlet Style

Quick-Connect

Valve Inlet Swivel

Rigid

Valve Outlet Count

Single

Valve Outlet Size (Imp)

6"

Valve Outlet Size (Met)

150 mm

Valve Outlet Type

NH Female

Valve Outlet Style

Handles

Valve Outlet Swivel

Swivel

Reviews

There are no reviews yet.

Be the first to review “Jumbo Intake Valve, Top Crank Controls, Swiveling Elbow – 5″ Storz Rigid Street-Side, 6″ NHF Swivel Truck-Side, Pressure Relief Valve”

Your email address will not be published. Required fields are marked *

Documents

Technical Specifications and Drawings

Product Order Forms

Instructions For Installation, Safe Operation and Maintenance
