Saving Lives & Protecting Property

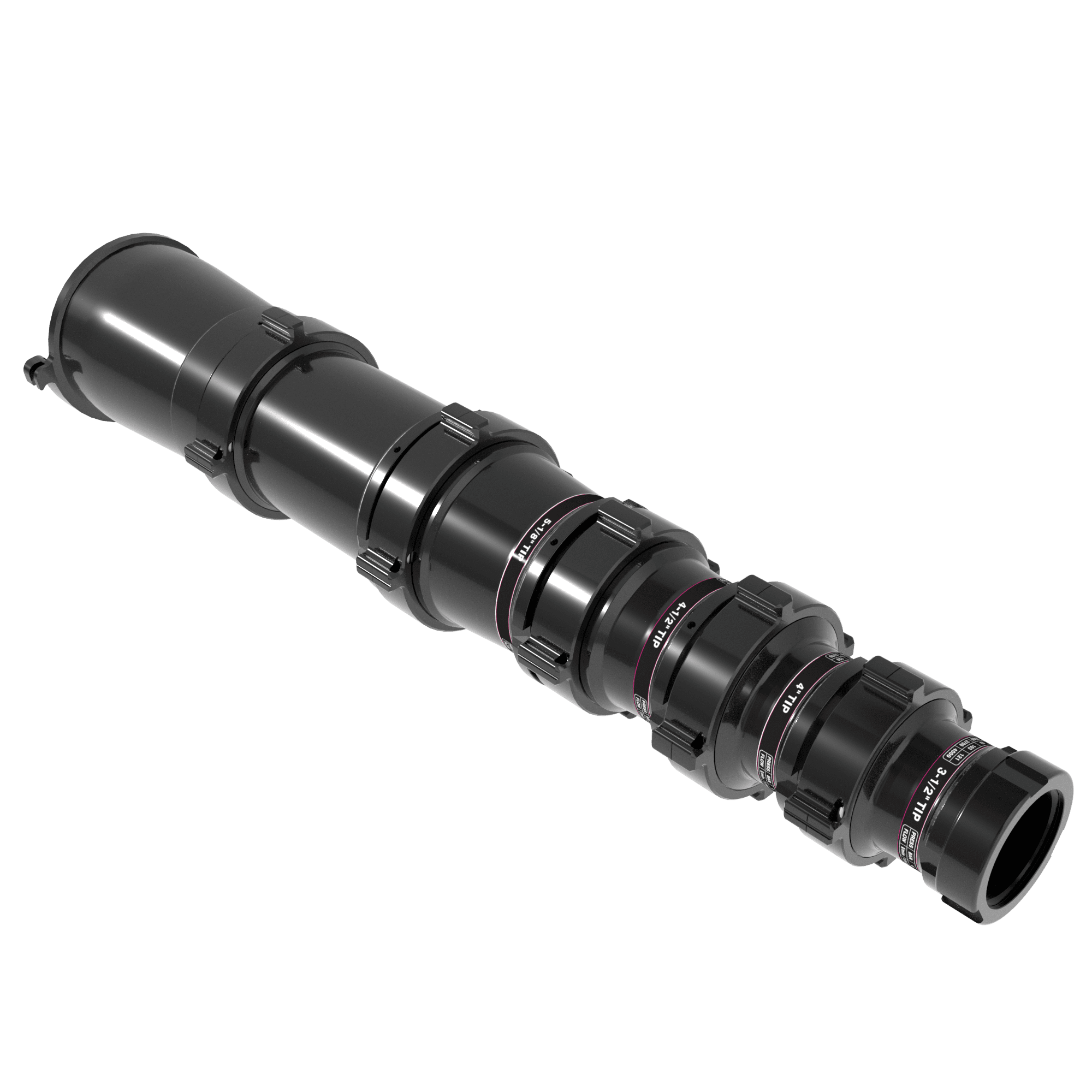

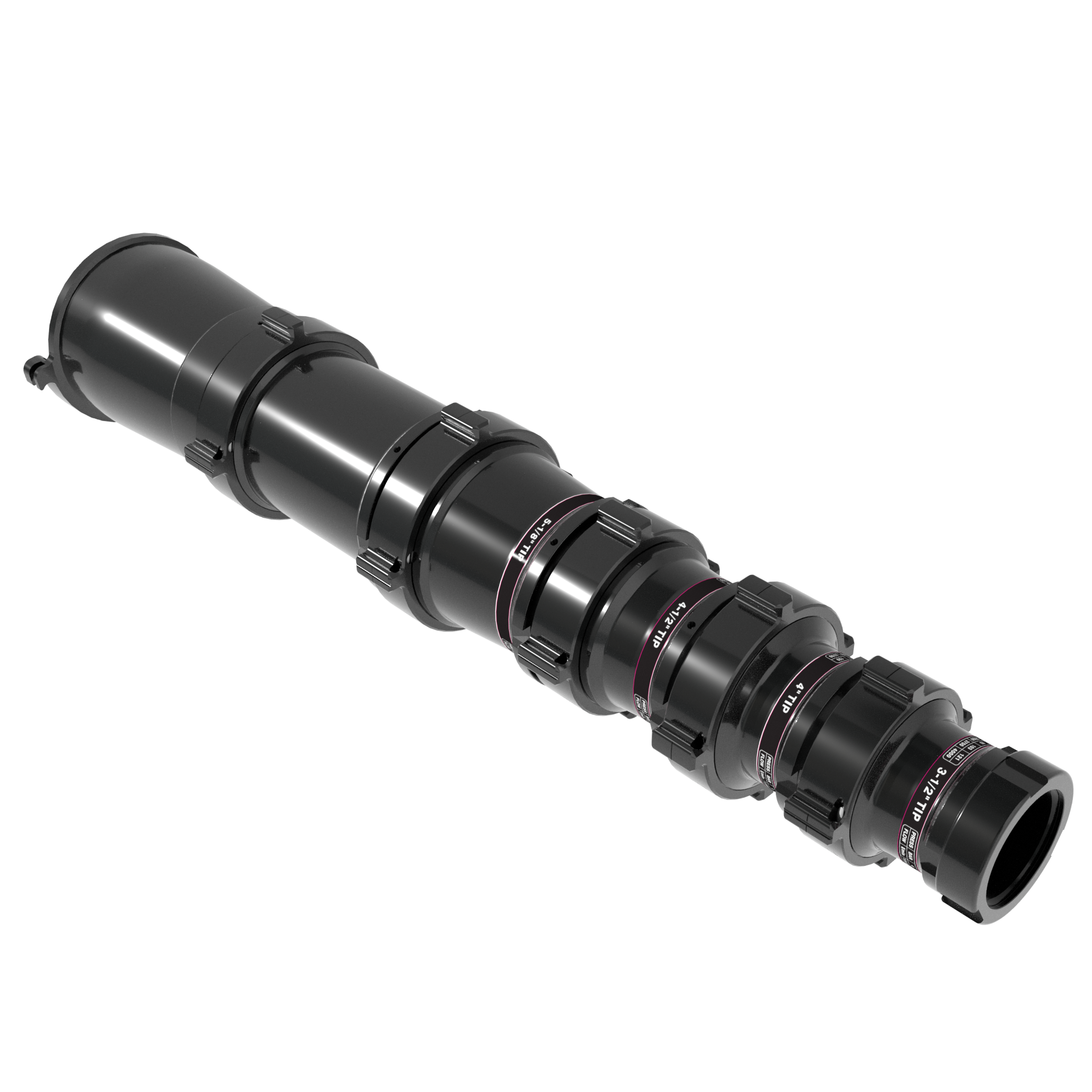

Smooth Bore Masterstream Quad Stack Nozzle Tip Set (5-1/8″, 4-1/2″, 4″, 3-1/2″) – 7″ Quick Connect Tsunami Inlet

SKU YST-8NX Category Brand:

Call for Price: 219-462-6161

SKU YST-8NX Category Brand:
ONLY For Use With Tsunami Monitors

Smooth Bore Masterstream Nozzles deliver powerful, straight streams for maximum reach and fireground penetration, ensuring optimal performance in firefighting operations.

Key Features:

  • High-Quality Construction: Made from aluminum alloy with hard coat anodization for durability
  • Exceptional Stream Quality: Smooth, tapered waterway for a solid and focused stream
  • Critical Orifice Protection: Recessed edge and aluminum bumper shield the nozzle from damage
  • Easy Identification: Laser-engraved tip size and pressure/flow chart for quick reference
  • Wide Flow Range: Handles flow rates from 250 GPM (900 LPM) to 5,000 GPM (19,000 LPM) based on tip size
  • Lightweight: Designed for easy handling without compromising performance
  • Enhanced Durability: Hard coat finish resists wear and tear in the most demanding environments
  • Monitor Compatibility: Compatible with portable and fixed monitors from any manufacturer for any application
  • Proven Reliability: Simple, no-frills design for consistent, effective fireground operation

Specifications

Weight 37.700 lbs
Color

Brand

Smooth Bore

Nozzle Type

Smooth Bore

Nozzle Valve Style

Sold Separately

Nozzle Teeth

None

Nozzle Style

Stacked Tips

Target Nozzle Flow (Imp)

2400/3000/3800/5000 GPM

Target Nozzle Flow (Met)

9000/12000/15000/19000 LPM

Target Nozzle Pressure (Imp)

80 PSI

Target Nozzle Pressure (Bar)

5 Bar

Nozzle Orifice Size (Imp)

3-1/2", 4", 4-1/2", 5-1/8"

Nozzle Orifice Size (Met)

130 mm, 114 mm, 102 mm, 89 mm

Product Length (Imp)

44.2"

Product Length (Met)

112.27 cm

Nozzle Shaper Actuation

Manual

Nozzle Power

Manual

Target Nozzle Pressure (KPA)

500 KPA

Nozzle Inlet Size (Imp)

7"

Nozzle Inlet Size (Met)

178 mm

Nozzle Inlet Connection Type

Quick Connect

Nozzle Inlet Coupling Style

Special Use

Nozzle Inlet Coupling Swivel

Rigid
