Flex RC Monitor: 3″ ANSI 150

Name: Flex RC Monitor: 3" ANSI 150 - Task Force Tips
SKU: YN-E15A
Price: 12156.00 USD
Availability: InStock

$12,156.00

SKU: YN-E15A Category: Fixed Monitors

Outlet: 2.5″ NH Male; Silver

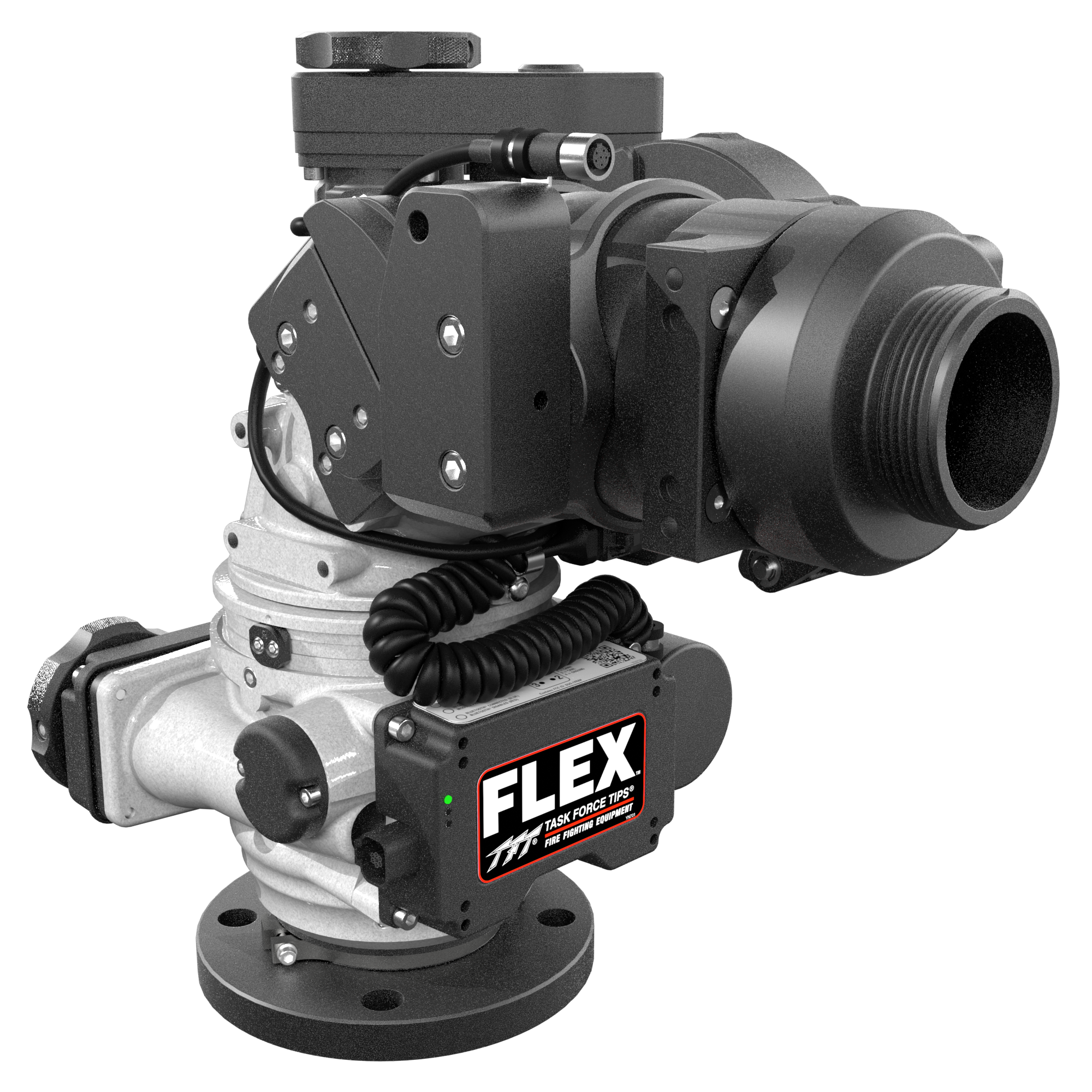

Flex is a mounted master stream monitor/ water cannon with flow ranges from 1250 GPM (4750 LPM) to 2000 GPM (7600 LPM).

The unique design minimizes curves in the waterway, lowering your friction loss. Paired with the SmartPlex app, the monitor is customizable and simple to install and program.

Features and Benefits:

1250-2000 GPM (4750-7600 LPM)
Friction loss as low as 8 PSI
Electric Model
App available for programming and over-the-air updates

All Prices in USD

Specifications
Documents

Specifications

Weight	51.250 lbs
Horizontal Movement (degrees)	450° Total (225° Left to 225° Right)
Oscillation	N
Remote Control	N
Inlet	3.0" ANSI 150
Vertical Movement (degrees)	135° Total (-45° Down to 90° Vertical)
Max Flow	1,250 gpm (4,500 l/min)
Finish	Stardust Silver
Outlet	2.5" (65 mm) NH Male Threads
Operation Energy Source	12/24 VDC
Configuration	Standard

Documents

Instructions For Installation, Safe Operation and Maintenance
