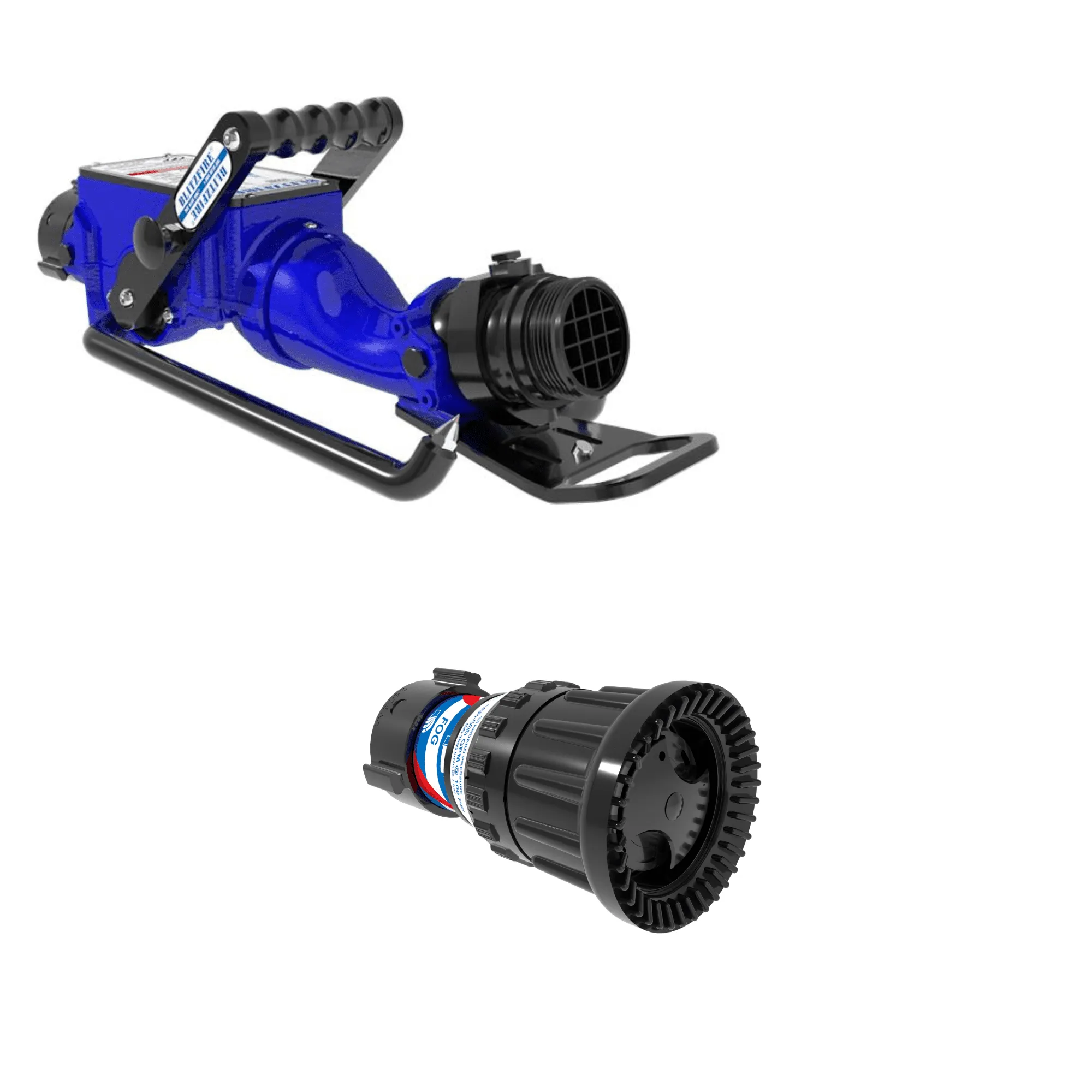

BlitzFire Portable Monitor +Max-Force Automatic Nozzle Package – 65 mm BSPF Swivel Rocker Inlet, 65 mm BSPM Rigid Outlet

SKU XXC-32NB-BJ1 Category Brand:

$6,455.00

The Best Ground Monitor Money Can Buy

The BlitzFire® is an adaptable, high-performance portable water monitor, ideal for fire crews facing limited manpower or challenging firefighting conditions. Delivering up to 500 GPM (2000 LPM) with full control over water flow and attack angles, the BlitzFire® can be used in either attended or unattended mode. Its exclusive safety shutoff valve ensures operation under the safest possible conditions, while its compatibility with various nozzles and foam systems adds versatility to its use. Whether you need to adjust your stream angle to reach high or low locations, the BlitzFire® is a reliable, efficient solution that maximizes fireground capabilities.
BlitzFire® Storage Bracket (XX-B) Sold Separately

Key Features:

  • Flow Rate: Flows up to 500 GPM (2000 LPM) for powerful water delivery
  • Safety Shutoff Valve: Automatically shuts off water in case of unintentional monitor movement
  • Adjustable Attack Angles: 10°-46° for standard models; up to 86° for high elevation units
  • Slide Valve Control: Provides complete control with six distinct detent positions for precise stream management
  • Foam Compatibility: Compatible with various foam systems for enhanced fire suppression
  • Optional Oscillation: Covers a range of 20°, 30°, or 40° without manual adjustment for effective cooling and exposure protection
  • Carbide-Tipped Legs: Offers enhanced stability on uneven terrain
  • Compact Storage: Easily mounted or stored in apparatus compartments for rapid deployment

This Package Includes:

XX132A – Blitzfire Monitor

  • 2.5” (65mm) BSPFSwivel Rocker Inlet
  • 2.5” (65mm) BSPM Outlet
  • Horizontal Movement: 20-degrees left and right of center
  • Vertical Movement: 10 to 46-degrees above horizontal
  • Turbulence-free slide valve
  • Safety Shut-Off Valve

MD22A – Max-Force Nozzle

  • 100/55 PSI (7/4bar) Dual-Pressure Nozzle
  • Flow Capacity: 100-500 GPM (400-2000 LPM)
  • Stream: Straight stream to 120-degree wide fog

The BlitzFire® is an adaptable, high-performance portable water monitor, ideal for fire crews facing limited manpower or challenging firefighting conditions. Delivering up to 500 GPM (2000 LPM) with full control over water flow and attack angles, the ...

The BlitzFire® is an adaptable, high-performance portable water monitor, ideal for fire crews facing limited manpower or challenging firefighting conditions. Delivering up to 500 GPM (2000 LPM) with full control over water flow and attack angles, the BlitzFire® can be used in either attended or unattended mode. Its exclusive safety shutoff valve ensures operation under the safest possible conditions, while its compatibility with various nozzles and foam systems adds versatility to its use. Whether you need to adjust your stream angle to reach high or low locations, the BlitzFire® is a reliable, efficient solution that maximizes fireground capabilities.
BlitzFire® Storage Bracket (XX-B) Sold Separately

Key Features:

  • Flow Rate: Flows up to 500 GPM (2000 LPM) for powerful water delivery
  • Safety Shutoff Valve: Automatically shuts off water in case of unintentional monitor movement
  • Adjustable Attack Angles: 10°-46° for standard models; up to 86° for high elevation units
  • Slide Valve Control: Provides complete control with six distinct detent positions for precise stream management
  • Foam Compatibility: Compatible with various foam systems for enhanced fire suppression
  • Optional Oscillation: Covers a range of 20°, 30°, or 40° without manual adjustment for effective cooling and exposure protection
  • Carbide-Tipped Legs: Offers enhanced stability on uneven terrain
  • Compact Storage: Easily mounted or stored in apparatus compartments for rapid deployment

This Package Includes:

XX132A – Blitzfire Monitor

  • 2.5” (65mm) BSPFSwivel Rocker Inlet
  • 2.5” (65mm) BSPM Outlet
  • Horizontal Movement: 20-degrees left and right of center
  • Vertical Movement: 10 to 46-degrees above horizontal
  • Turbulence-free slide valve
  • Safety Shut-Off Valve

MD22A – Max-Force Nozzle

  • 100/55 PSI (7/4bar) Dual-Pressure Nozzle
  • Flow Capacity: 100-500 GPM (400-2000 LPM)
  • Stream: Straight stream to 120-degree wide fog

BlitzFire® Ground Monitor

HIGH FLOW, UNMATCHED SAFETY.

GPM
0
LPM
0

Swipe to navigate tabs.

Edit Content

Flow Rate

With a high flow rate of 500 GPM (2000 LPM), the BlitzFire delivers a powerful stream to knock down fires fast—giving your crew the upper hand when seconds matter.

Edit Content
Click on the Edit Content button to edit/add the content.
Edit Content

High Elevation Model Stream Range

The high elevation model extends the vertical attack range from 10-degrees to 86-degrees, ideal for fires requiring steep angles.

Edit Content

Unassisted Operation

The BlitzFire can operate without direct human intervention, allowing firefighters to focus on other critical tasks. This capability is especially valuable in situations where staffing is limited, as it enables effective firefighting with fewer personnel on hand. A safety tiedown strap comes with the BlitzFire that meets the minimum NFPA safety guidelines.

Edit Content

Safety Shutoff Valve

The BlitzFire features an automatic safety shutoff valve that stops water flow if stability is compromised—whether from missing tie-downs, undeployed legs, or unexpected shifting. It stays stable during normal forward/backward movement, with shutoff only triggered by side force.

Edit Content

Foam Compatibility

The BlitzFire can be integrated with various foam systems, including eductors and on-board foam systems. This compatibility allows firefighters to deliver foam effectively, enhancing fire suppression capabilities, especially in situations where foam is required for greater knockdown power and to prevent re-ignition.

Edit Content

Carbide-Tipped Legs

The heavy-duty, carbide-tipped legs provide enhanced stability on a variety of surfaces, ensuring that the monitor remains securely in place during operation. This feature is particularly beneficial when deploying on uneven or slippery terrain, where maintaining a stable position is crucial for effective firefighting.

Edit Content

Safety Locking Pin

The safety locking pin secures the monitor’s off position to prevent unintentional flow of water.

Edit Content

Detent Slide Valve

The BlitzFire’s integrated slide valve offers six detent positions for precise flow control, allowing firefighters to quickly adjust the stream to match changing fire conditions—from wide-area attacks to targeted hits.

Edit Content

Optional Oscillation Coverage

The optional oscillation feature uses a water-driven turbine to automatically sweep the nozzle across a range of 20, 30, or 40 degrees, providing consistent coverage without manual adjustment. This feature is particularly useful for cooling large areas or creating a protective barrier, enhancing the overall capability of the monitor.

Edit Content

Easy Mounting and Storage

The BlitzFire can be easily mounted to any accessible vertical or horizontal surface on a fire apparatus or stored in a compartment for quick access. This convenient mounting and storage option ensures that the monitor is always ready for rapid deployment, saving valuable time during emergency operations.

Edit Content

Rugged Aluminum Valve Handle

The rugged aluminum valve handle on the BlitzFire monitor offers dual functionality, serving both as a control mechanism and a built-in carrying handle.

When staffing is low, the BlitzFire allows a single firefighter to initiate an effective attack with just one hose line. The BlitzFire can also operate unassisted.

In unstable conditions, a BlitzFire’s built-in safety shutoff valve automatically activates, preventing uncontrolled movement and minimizing the risk of injury and equipment damage.

Firefighters often need to adjust their attack angles depending on the situation. The BlitzFire offers flexibility with adjustable angles ranging from 10 to 46 degrees, and up to 86 degrees in high elevation models, providing the necessary versatility for various fire ground strategies.

Precise control over water delivery is crucial in many scenarios. A BlitzFire addresses this with its integrated slide valve, offering six detent positions to ensure complete control over the water stream.

Some monitors are not designed to handle foam effectively, limiting their usefulness. The BlitzFire is compatible with various foam systems, making it adaptable to different firefighting scenarios that require foam for effective suppression.

The BlitzFire can be mounted or stored easily in a compartment or preconnected to a hoseline.

The BlitzFire monitor is designed for single-person operation, allowing one firefighter to effectively manage water flow and attack angles. Its portability and unattended operation capability make it ideal for departments with limited personnel, ensuring effective firefighting without requiring a large team.

Yes, the BlitzFire monitor is compatible with various foam systems, including eductors and onboard foam setups. This versatility allows firefighters to quickly switch between water and foam, depending on the suppression needs, making it suitable for multiple fire scenarios, including Class A and B fires.

The BlitzFire monitor features an exclusive safety shutoff valve that automatically engages if the monitor experiences unintentional movement. This is crucial in preventing injury or equipment damage, particularly when the monitor is being used in high-pressure or unstable conditions.

One of the key advantages of the BlitzFire is its compact size, which allows it to be stored easily in most apparatus compartments or mounted on vertical or horizontal surfaces. This ensures that it doesn’t take up valuable space while remaining readily accessible for quick deployment during emergencies.

Yes, the high-elevation version of the BlitzFire monitor extends the vertical attack range up to 86 degrees, making it an ideal solution for targeting elevated locations such as attic fires or fires in multi-story buildings. This capability provides tactical flexibility in a wide variety of fire situations.

Yes, the BlitzFire monitor comes with a safety tiedown strap that meets the minimum NFPA safety guidelines. This ensures that the monitor is securely anchored during use, providing added safety for firefighters in high-pressure or dynamic fireground environments.

Marcel Gordon V Martin via Facebook

Love our new monitor. No longer need 2-3 guys to handle it. Set and go. Finally in with the new.

Jerry Sherrod via Facebook

We have 3 BlitzFire monitors and they do a wonderful job on scene.

Michael Pauly via Facebook

Love ours, great for big fire knock down, would 100% recommend it.

Marcel Gordon V Martin via Facebook

Love our new monitor. No longer need 2-3 guys to handle it. Set and go. Finally in with the new.

Jerry Sherrod via Facebook

We have 3 BlitzFire monitors and they do a wonderful job on scene.

Michael Pauly via Facebook

Love ours, great for big fire knock down, would 100% recommend it.

Marcel Gordon V Martin via Facebook

Love our new monitor. No longer need 2-3 guys to handle it. Set and go. Finally in with the new.

Jerry Sherrod via Facebook

We have 3 BlitzFire monitors and they do a wonderful job on scene.

Michael Pauly via Facebook

Love ours, great for big fire knock down, would 100% recommend it.

Have Questions or Feedback? Reach Out to the TFT Team!

Specifications

Weight 0.000 lbs
Package

Color

Brand

BlitzFire®

Bundle

Monitor Package

Monitor Type

Ground Attack

Bundle Nozzle Type

Automatic

Bundle Nozzle Brand

Max-Force

Monitor Supply Size (Imp)

2.5"

Monitor Supply Size (Met)

65 mm

Monitor Supply Type

BSP Female

Monitor Supply Style

Rocker

Monitor Supply Swivel

Swivel

Monitor Horizontal Range

±20°

Monitor Vertical Range

10° – 46°

Monitor Control

Manual

Monitor Supply Inlets

Single

Monitor Outlet Size (Imp)

2.5"

Monitor Outlet Size (Met)

65 mm

Monitor Outlet Type

BSP Male

Monitor Outlet Style

Male Threads

Monitor Outlet Swivel

Rigid

Max Flow Rate (GPM)

500 GPM

Max Flow Rate (LPM)

2000 LPM

Bundle Stream Straightener

Integrated

Monitor Valve Type

Slide Valve

Safety Features

Safety Shutoff & Tie Down Strap
