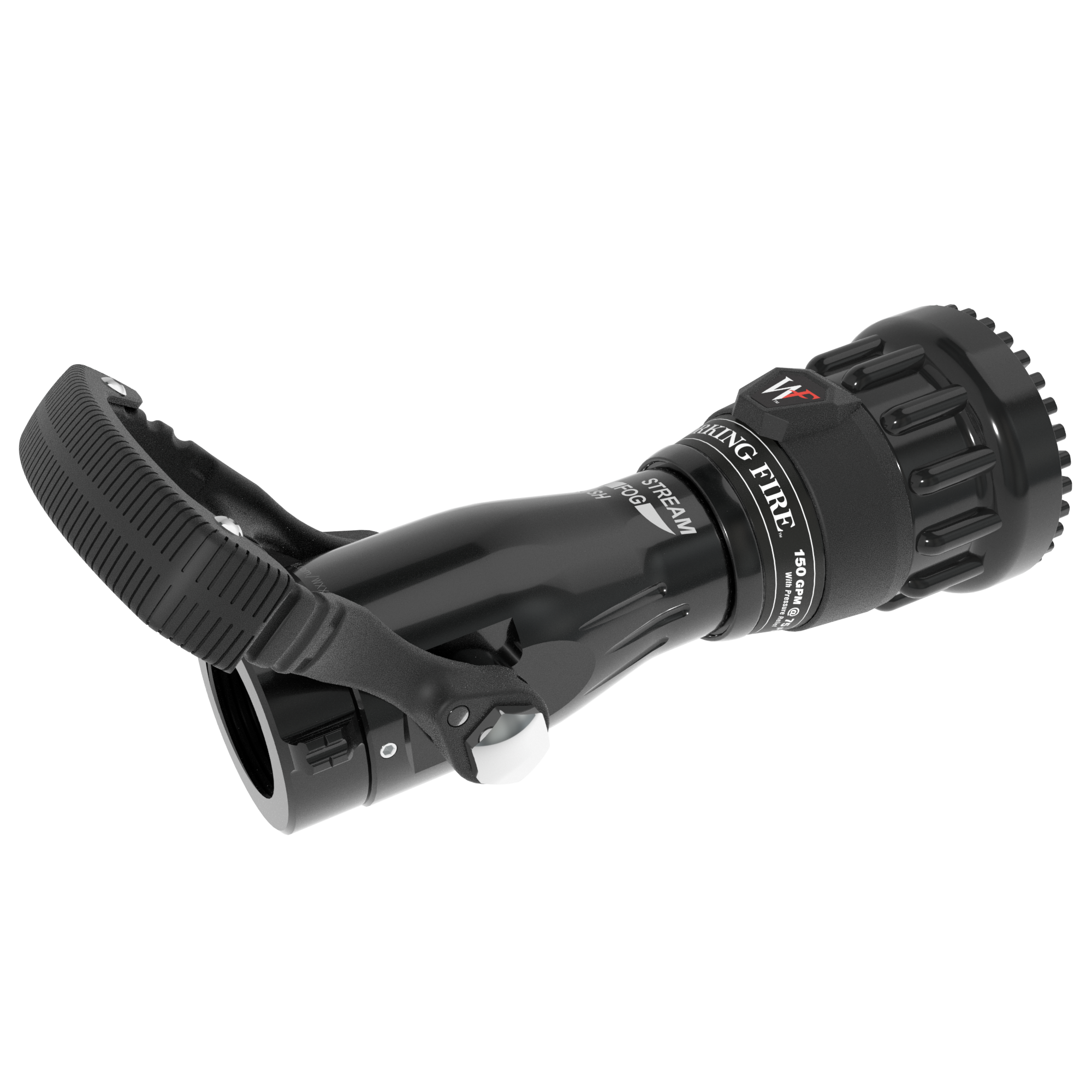

Working Fire Fixed Flow One-Piece Nozzle, Ball Valve – 150 GPM @ 75 PSI, 1.5″ NHF Rocker Swivel Inlet, Rubber Teeth

$1,429.00

SKU: WF1VF-173 Category:

Reliable Fixed Flow Nozzle with Pressure Relief for Optimal Control

The Working Fire™ series offers a dependable fixed-flow nozzle solution that balances high GPM performance with reduced nozzle reaction. Built with an innovative pressure relief feature, these nozzles deliver big flow rates while minimizing the physical demand and stress you experience when advancing the line. Available in both 150 GPM @ 75 PSI and 160 GPM @ 50 PSI models, Working Fire™ nozzles ensure consistent, manageable performance for the most rigorous firefighting applications.

Key Features:

  • Fixed Flow Rates: Delivers steady flow rates of 150 GPM (570 LPM) @ 75 PSI or 160 GPM (600 LPM) @ 50 PSI
  • Pressure Relief System: Reduces nozzle reaction when flow rates exceed the rated limit, enhancing crew safety and control
  • High-Durability Design: Engineered with a full round 1 3/8” ball valve for reliable performance
  • Trustworthy Connection: Available with 1.5” NHF rocker swivel inlets, suitable for various setups
  • Enhanced Grip Options: Pistol grip options for comfortable maneuverability and control
  • Stream Shaping Control: Tactile detent on the stream shaper prevents accidental switching to fog pattern, ensuring targeted flow control
  • Available Teeth Types: Choose between spinning metal or fixed rubber teeth for optimal stream customization

All Prices in USD

Specifications

Weight 4.700 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Working Fire™

Nozzle Type

Fixed Flow

Nozzle Valve Style

Ball Valve

Nozzle Teeth

Fixed Rubber

Nozzle Style

One-Piece

Target Nozzle Flow (Imp)

150 GPM

Target Nozzle Flow (Met)

565 LPM

Target Nozzle Pressure (Imp)

75 PSI

Target Nozzle Pressure (Bar)

5 Bar

Target Nozzle Pressure (KPA)

500 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Swivel

Documents

Technical Specifications and Drawings

Service Procedures

Instructions For Installation, Safe Operation and Maintenance
