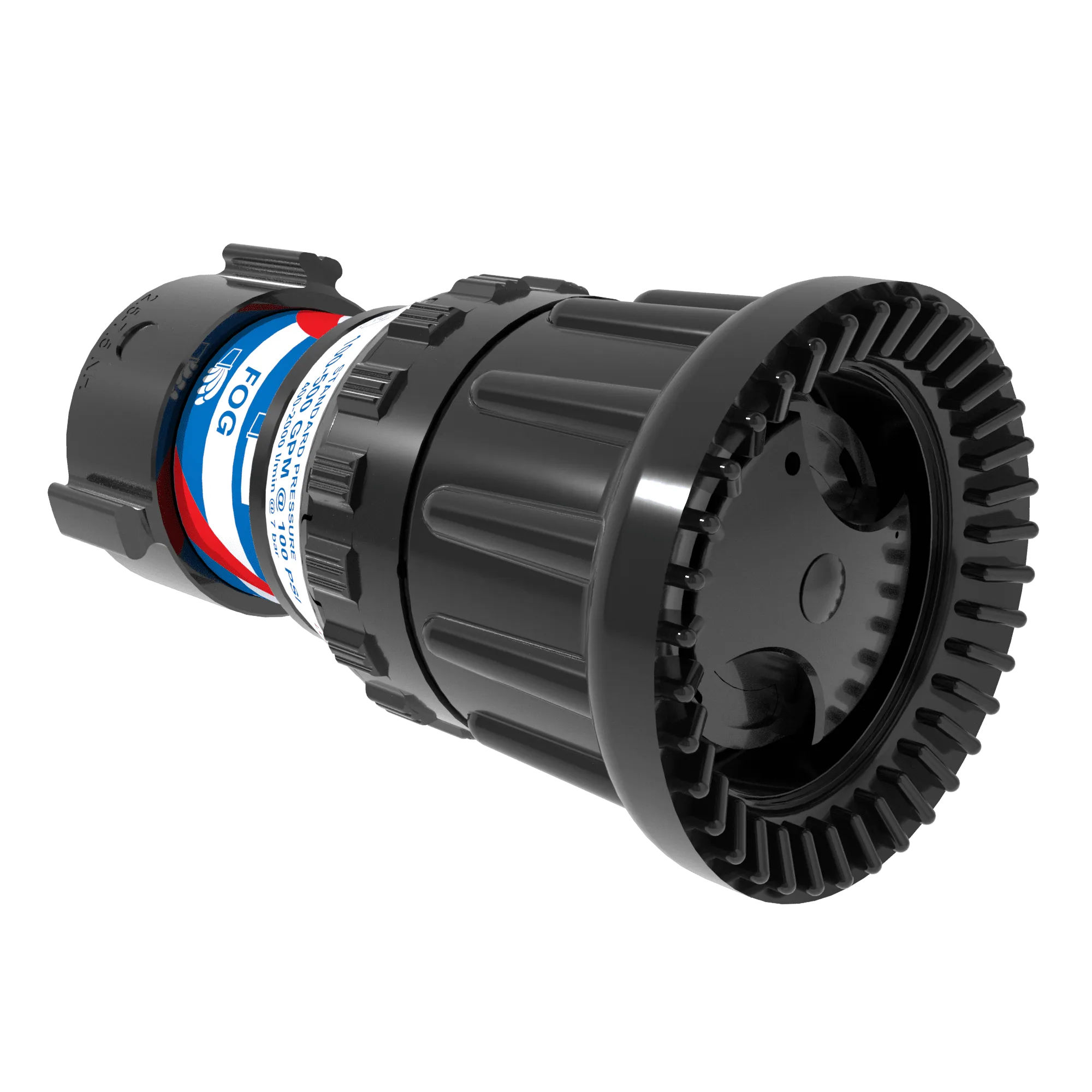

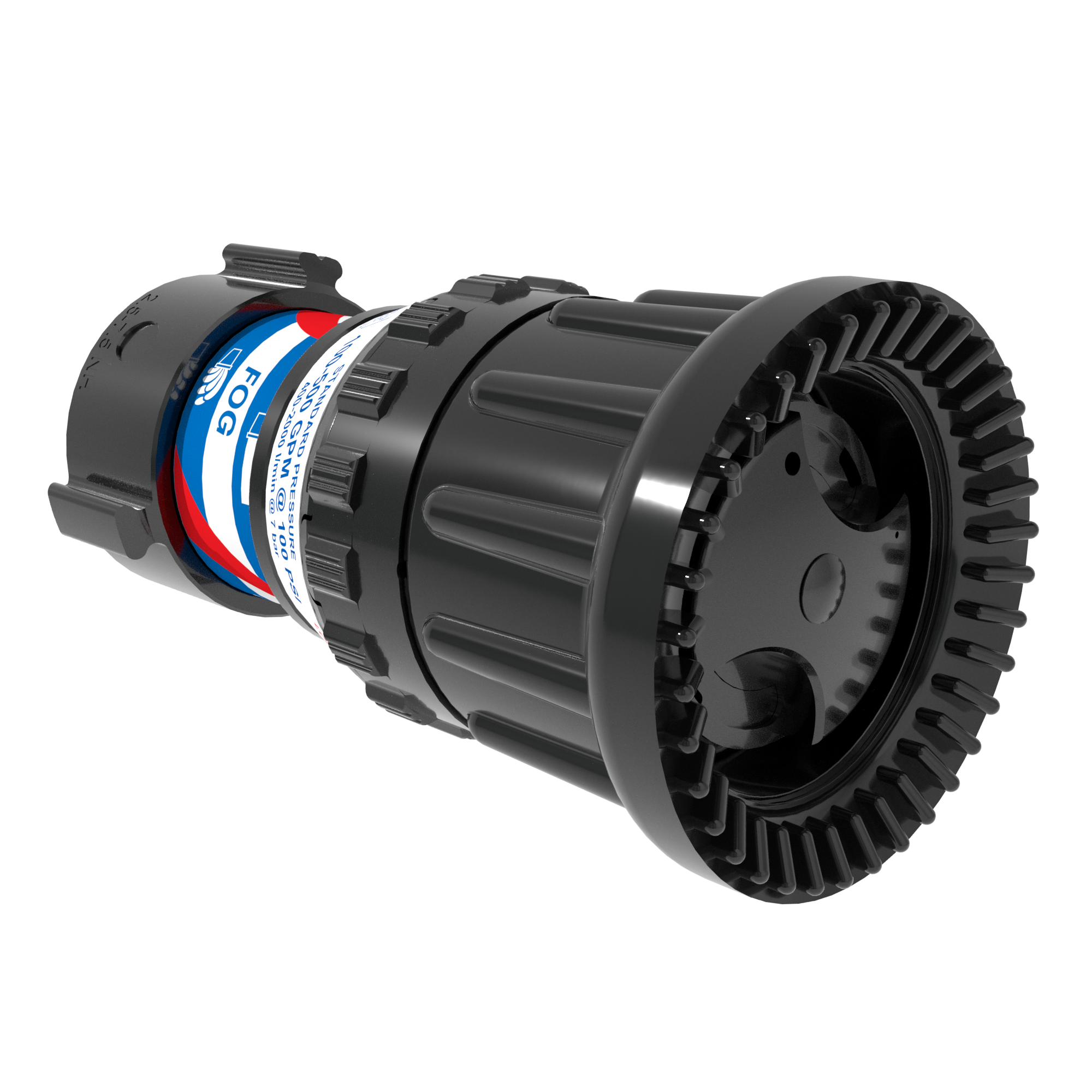

Max-Force Automatic Maxstream Nozzle – 100-500 GPM (400-2000 LPM) @ 55/100 PSI (4/7 Bar), 2.5″ (65 mm) NHF Rigid Rocker Inlet

$1,514.00

SKU: MD12A Category: Tag: Brand:

Versatile Masterstream Nozzle Performance

with a flow capacity of 100-500 gpm (400-2000 l/min). The nozzle may be switched between standard 100 psi (7 bar) and a low pressure mode 55 psi (4bar) by twisting a knob on the front of the nozzle. The pattern adjusts from straight stream to a 120° wide fog. Further rotation opens the tip to flush ?” (10 mm) debris without shutting down. Hard coat anodized aluminum with rubber bumper. Standard inlet is 2.5″ NH (65 mm) rigid rocker lug.

All Prices in USD

Specifications

Weight 6.700 lbs
Dimensions 14.00 × 8.00 × 8.00 in
Color

Brand

Max-Force™

Nozzle Type

Automatic

Nozzle Valve Style

Sold Separately

Nozzle Teeth

Rubber Teeth

Nozzle Style

Tip Only

Target Nozzle Flow (Imp)

100-500 GPM

Target Nozzle Flow (Met)

400-2000 LPM

Target Nozzle Pressure (Imp)

55/100 PSI

Target Nozzle Pressure (Bar)

4/7 Bar

Nozzle Shaper Actuation

Manual

Nozzle Power

Manual

Target Nozzle Pressure (KPA)

400/700 kPa

Nozzle Inlet Size (Imp)

2.5"

Nozzle Inlet Size (Met)

65 mm

Nozzle Inlet Connection Type

NH Female

Nozzle Inlet Coupling Style

Rocker

Nozzle Inlet Coupling Swivel

Rigid
