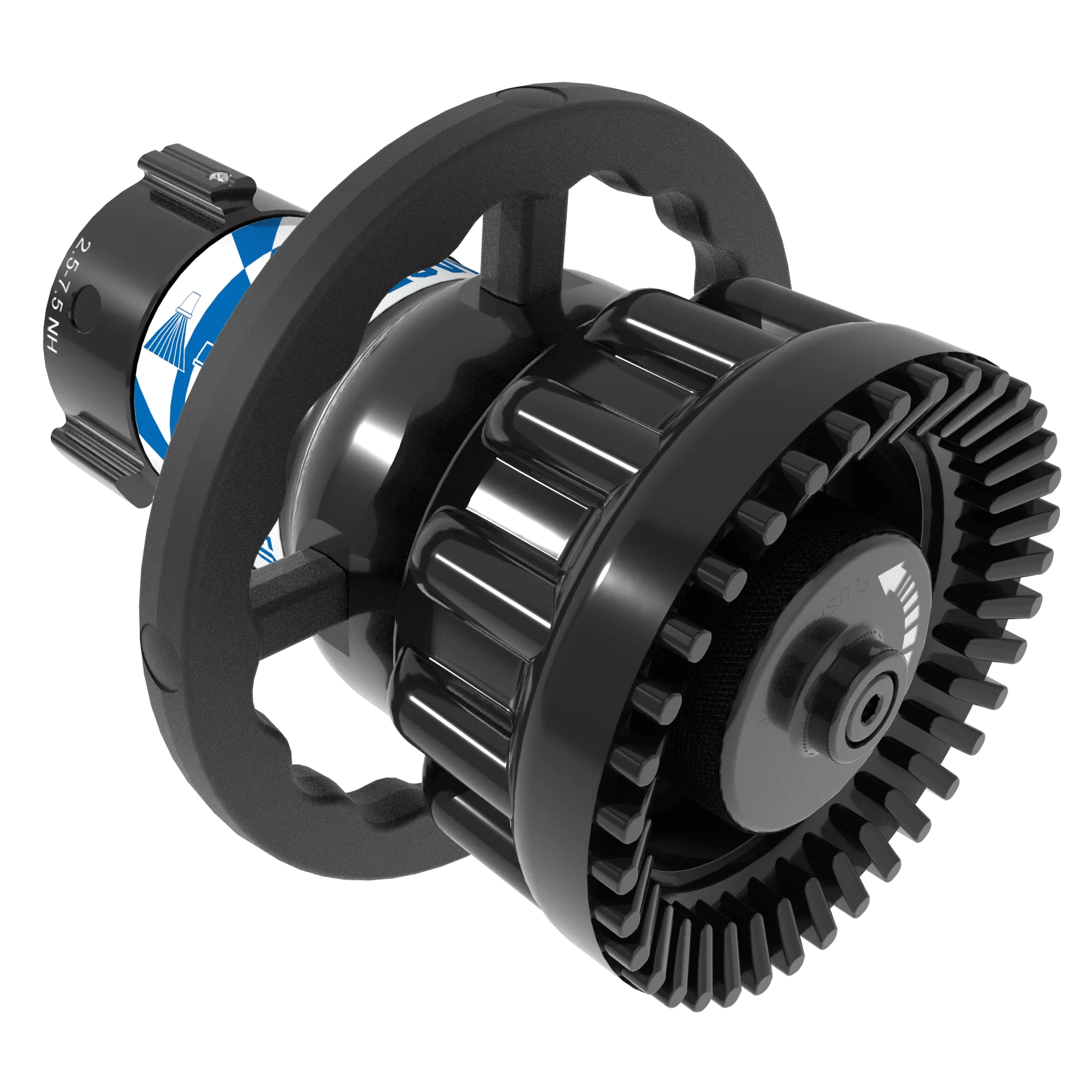

MASTER STREAM 1250S W/HALO AUTO 2.5″F

Name: MASTER STREAM 1250S W/HALO AUTO 2.5"F - Task Force Tips
SKU: M-R1250S-NJ
Price: 1811.00 USD
Availability: InStock

$1,811.00

SKU: M-R1250S-NJ Category: Masterstream Nozzles

150-1250 GPM @ 100 PSI

Flow range of 150-1250 gpm (570/4700 l/min). Fully automatic Master Stream nozzle for use on monitors, ladder pipes, deluge guns, and aerial platforms. Constant nozzle pressure regulated to 100 psi (7 bar). Continuously variable from straight stream to wide fog. Includes halo ring for manual pattern control. Rubber bumper incorporates TFT “power fog” teeth for fully-filled, finger-free fog pattern. Lightweight hardcoat anodized aluminum for maximum resistance to corrosion and wear. 2.5″ NH (65 mm) rocker lug swivel coupling is standard. 3.0″ NH (75 mm) or 3.5″ NH (90 mm) coupling is optional.

All Prices in USD

Specifications
Documents

Specifications

Weight	10.400 lbs
Operating Pressure	100 psi (7 bar)
Outlet Diameter	N/A
Type	Automatic
Inlet Coupling Style	Rocker
Remote Control	N
Pressure Mode	Single
Flow Rate	150-1250 gpm (570-4700 l/min)
Bumper Material	Rubber – press fit
Inlet Coupling Swivel	Full Time Swivel

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance

Master Stream Nozzles Automatic and Selectable
