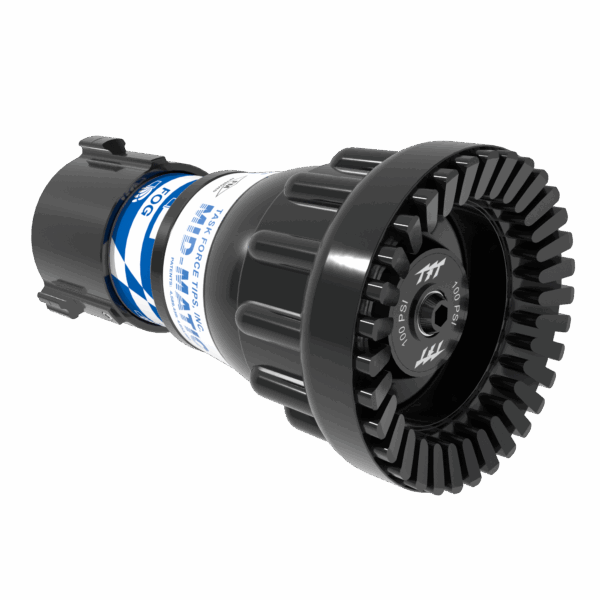

Mid-Matic Automatic Nozzle Tip – 70-200 GPM @ 100 PSI, 1.5″ NHF Rigid Rocker Inlet, Rubber Teeth

SKU HM-TO Category Brand:

Call for Price: 219-462-6161

SKU HM-TO Category Brand:

Precision Flow and Versatile Pressure Options

The Mid-Matic™ Automatic Nozzle is designed for firefighting teams requiring mid-range flow and flexible pressure options. Delivering between 25-200 GPM (100-750 LPM), the Mid-Matic™ provides efficient water application with easy customization. Built to meet NFPA standards, it features a patented slide valve, detent flow control, and is available with various grip and coupling options for enhanced handling on the fireground.

Key Features:

  • Adjustable Pressure Choices: Available in 75, 80, and 100 PSI (5, 6, and 7 Bar) for accurate flow settings
  • Flow Range: Delivers between 25-200 GPM (100-750 LPM), ideal for mid-range applications
  • Hose Compatibility: Fits 1.5” to 2” (38-52 mm) hoses, available in NH, BSP, and BIC connections
  • Slide Valve Control: Patented slide valve offers turbulence-free operation for smooth flow adjustments
  • Fog Pattern Teeth: Choose from molded rubber or metal spinning teeth for versatile fog patterns
  • Flush Without Shutdown: Easily clear obstructions without stopping water flow
  • Grip Options: Pistol grip configurations for enhanced control
  • Color & Safety Indicators: Black finish with optional flashover nozzle for advanced firefighting techniques

Specifications

Weight 2.800 lbs
Color

Brand

Mid-Matic™

Nozzle Type

Automatic

Nozzle Valve Style

Sold Separately

Nozzle Teeth

Fixed Rubber

Certifications

NFPA/FM

Nozzle Style

Tip Only

Target Nozzle Flow (Imp)

70-200 GPM

Target Nozzle Flow (Met)

260-750 LPM

Target Nozzle Pressure (Bar)

7 Bar

Target Nozzle Pressure (KPA)

700 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Rigid

Target Nozzle Pressure (PSI)

100 PSI
