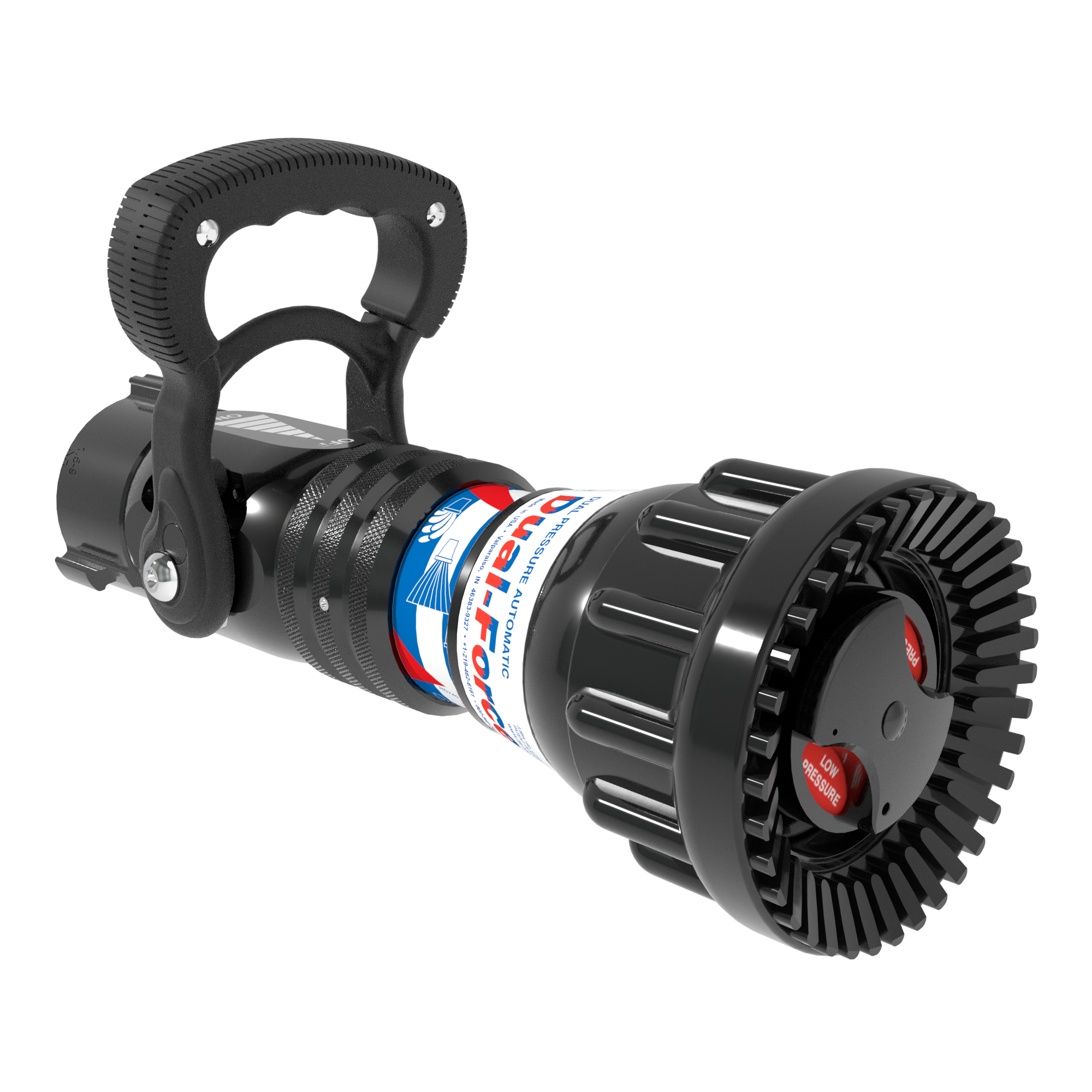

Dual-Force Automatic One-Piece Nozzle, Slide Valve – 95-300 GPM @ 45/75 PSI, 1.5″ NHF Rocker Swivel Inlet, Rubber Teeth

Call for Price: 219-462-6161

SKU: HDL-V Category:

Dual-Pressure Performance for Any Situation

The Dual-Force® Automatic Nozzle is engineered for adaptability on the fireground, allowing seamless switching between standard and low-pressure modes. Available in various configurations, the Dual-Force® provides a flow range from 95 to 300 GPM (360-1150 LPM) and is compatible with multiple hose sizes and couplings. Its patented slide valve, durable design, and foam compatibility make it a reliable choice for both structural and wildland firefighting. Equip your team with a nozzle that maximizes control, versatility, and durability.

Key Features:

  • Dual-Pressure Modes: Select between 45/75 PSI or 55/100 PSI, enabling customizable flow for different firefighting scenarios
  • Flow Range: Adjustable from 95 to 300 GPM (360-1150 LPM) to meet varied firefighting needs
  • Versatile Hose Compatibility: Works with 1.5″ to 2.5″ (38-65 mm) hoses, fitting NH or Storz couplings
  • Slide Valve Control: Patented stainless-steel valve for precise flow regulation and smooth operation
  • Rubber Bumper with Fog Teeth: Ensures optimized fog pattern and protects against impact damage
  • Foam Attachment Options: Compatible with low or multi-expansion foam attachments for added suppression capability
  • Flush Without Shutdown: Maintain flow and prevent clogs with easy flushing capability
  • Pistol Grip Option: Enhanced handling for targeted and steady control, available on specific models

All Prices in USD

Specifications

Weight 6.500 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Dual-Force®

Nozzle Type

Automatic

Nozzle Valve Style

Slide Valve

Nozzle Teeth

Fixed Rubber

Nozzle Style

One-Piece

Target Nozzle Flow (Imp)

95-250 GPM

Target Nozzle Flow (Met)

360-950 LPM

Target Nozzle Pressure (Imp)

45 or 75 PSI

Target Nozzle Pressure (Bar)

3 or 5 Bar

Target Nozzle Pressure (KPA)

300 or 500 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Swivel

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
