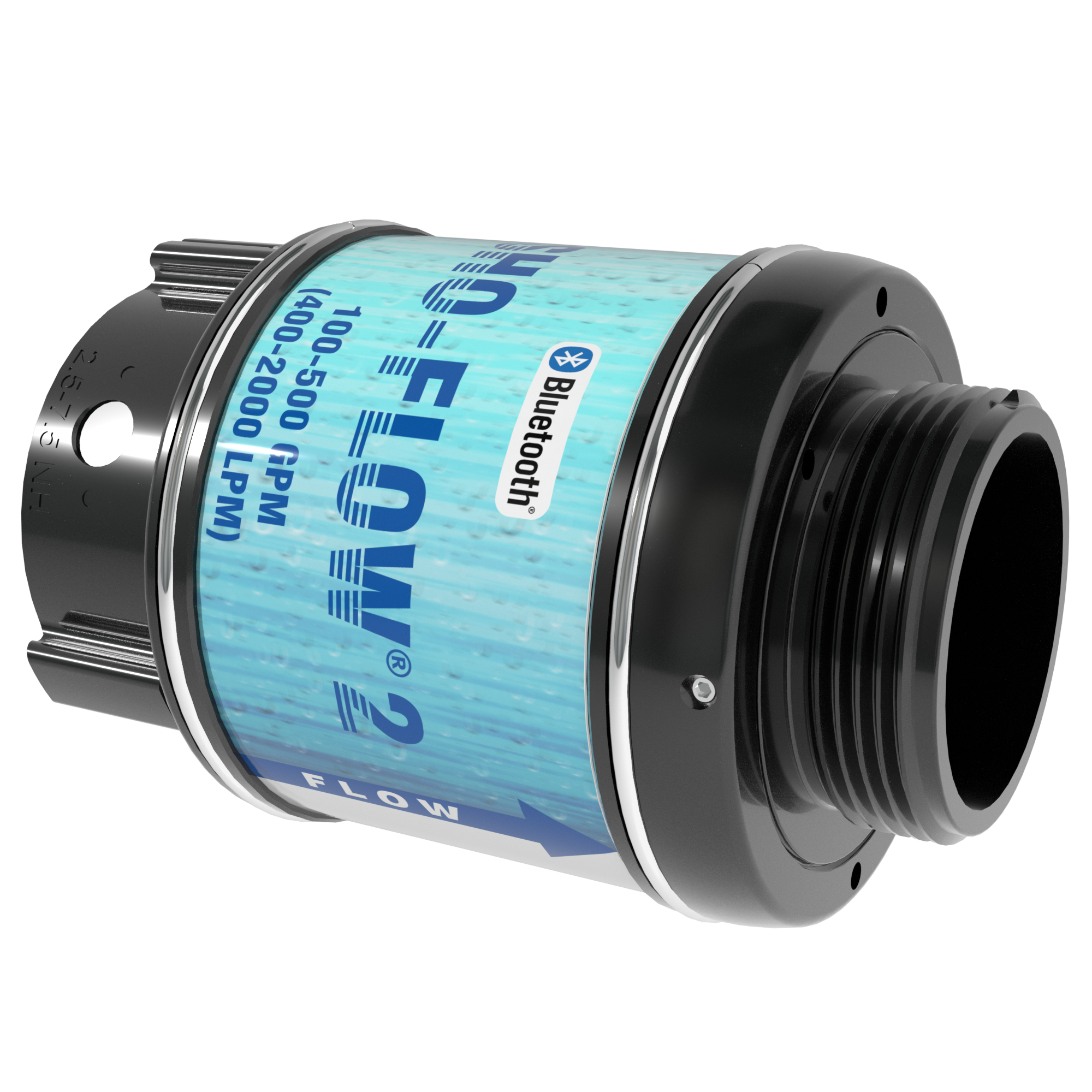

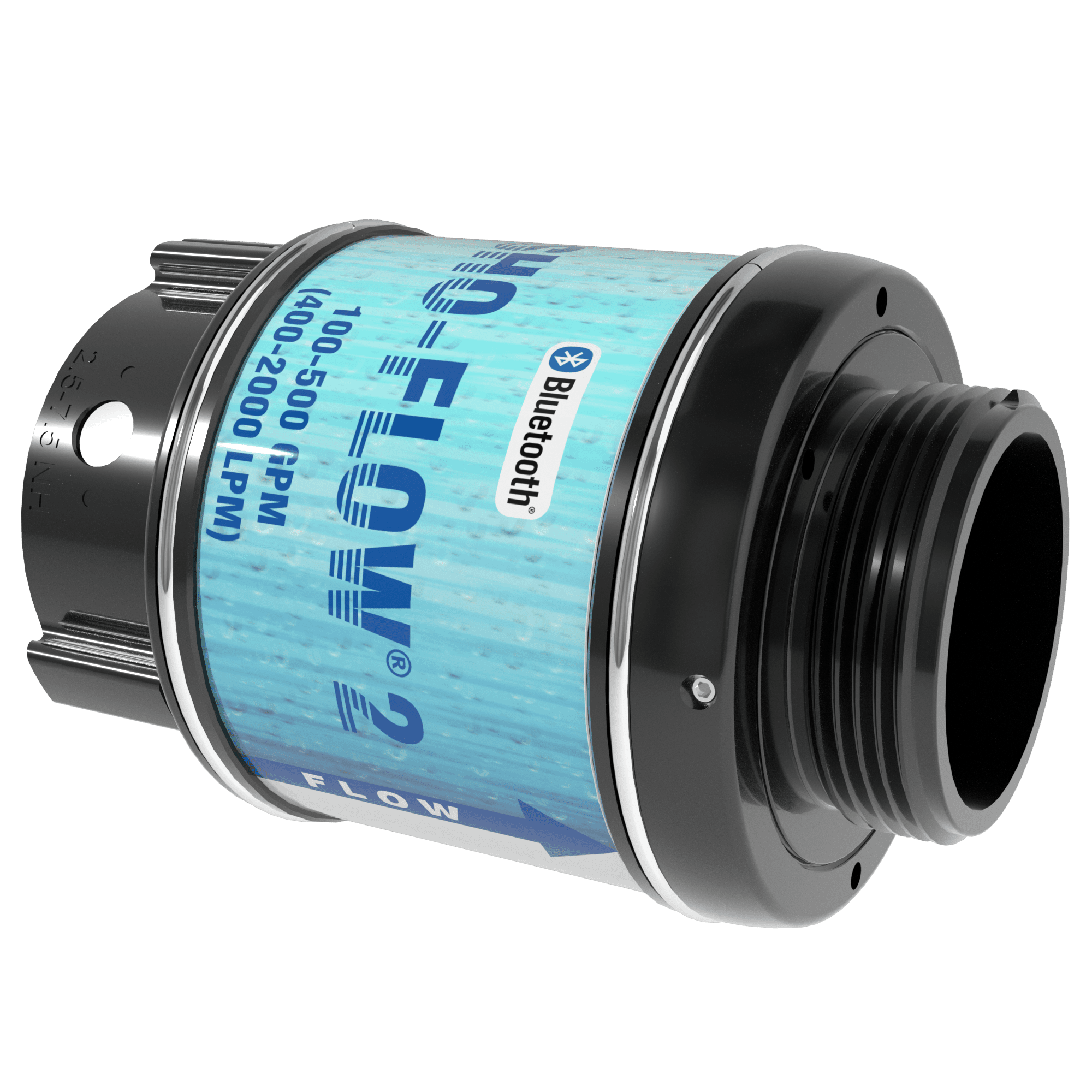

Sho-Flow 2.5″ Self-Powered Bluetooth Flow Meter, 100-500 GPM Range – 2.5″ NHF Rigid Rocker Inlet, 2.5″ NHM Rigid Outlet

$2,055.00

SKU: EFJ-NJNJ500 Category: Tag: Brand:

Real-Time Flow Monitoring

TFT’s SHO-FLOW 2 LOW FLOW BLUETOOTH® generates its own power using an unobstructed water driven turbine, with a built in stream straightener, that will pass debris up to 1.7″ (43 mm) in diameter. Starting at 100 GPM (380 l/min), the turbine generates power needed to supply a BLUETOOTH® connection to any smart device. Choose units you want displayed from your smart device; gpm, gps, l/min or l/sec. Full flow range 100 – 500 gpm (1.7 – 8.3 gps) (380 – 1900 l/min) (3.33 – 19.16 l/sec)

All Prices in USD

Specifications

Weight 4.600 lbs
Dimensions 10.00 × 10.00 × 6.00 in
Color

Brand

ShoFlow®

Meter/Gauge Accuracy

±2.5%

Meter/Gauge Range (Met)

400-2000 LPM

Meter/Gauge Range (Imp)

100-500 GPM

Meter/Gauge Inlet Size (Imp)

2.5"

Meter/Gauge Inlet Size (Met)

65 mm

Meter/Gauge Inlet Connection Type

NH Female

Meter/Gauge Inlet Coupling Style

Rocker

Meter/Gauge Inlet Coupling Swivel

Rigid

Meter/Gauge Outlet Size (Imp)

2.5"

Meter/Gauge Outlet Size (Met)

65 mm

Meter/Gauge Outlet Connection Type

NH Male

Meter/Gauge Outlet Coupling Style

Male Threads

Meter/Gauge Outlet Coupling Swivel

Rigid

Max Operating Pressure (PSI)

300 PSI

Max Operating Pressure (Bar)

21 Bar

Max Operating Pressure (KPA)

2100 KPA

Meter/Gauge Waterway Size (Imp)

2.5"

Meter/Gauge Waterway Size (Met)

65 mm

Meter/Gauge Power Supply

Self-Powered

Communication Connection

Bluetooth

Meter/Gauge Type

Flow Meter

Reviews

There are no reviews yet.

Be the first to review “Sho-Flow 2.5″ Self-Powered Bluetooth Flow Meter, 100-500 GPM Range – 2.5″ NHF Rigid Rocker Inlet, 2.5″ NHM Rigid Outlet”

Your email address will not be published. Required fields are marked *

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
