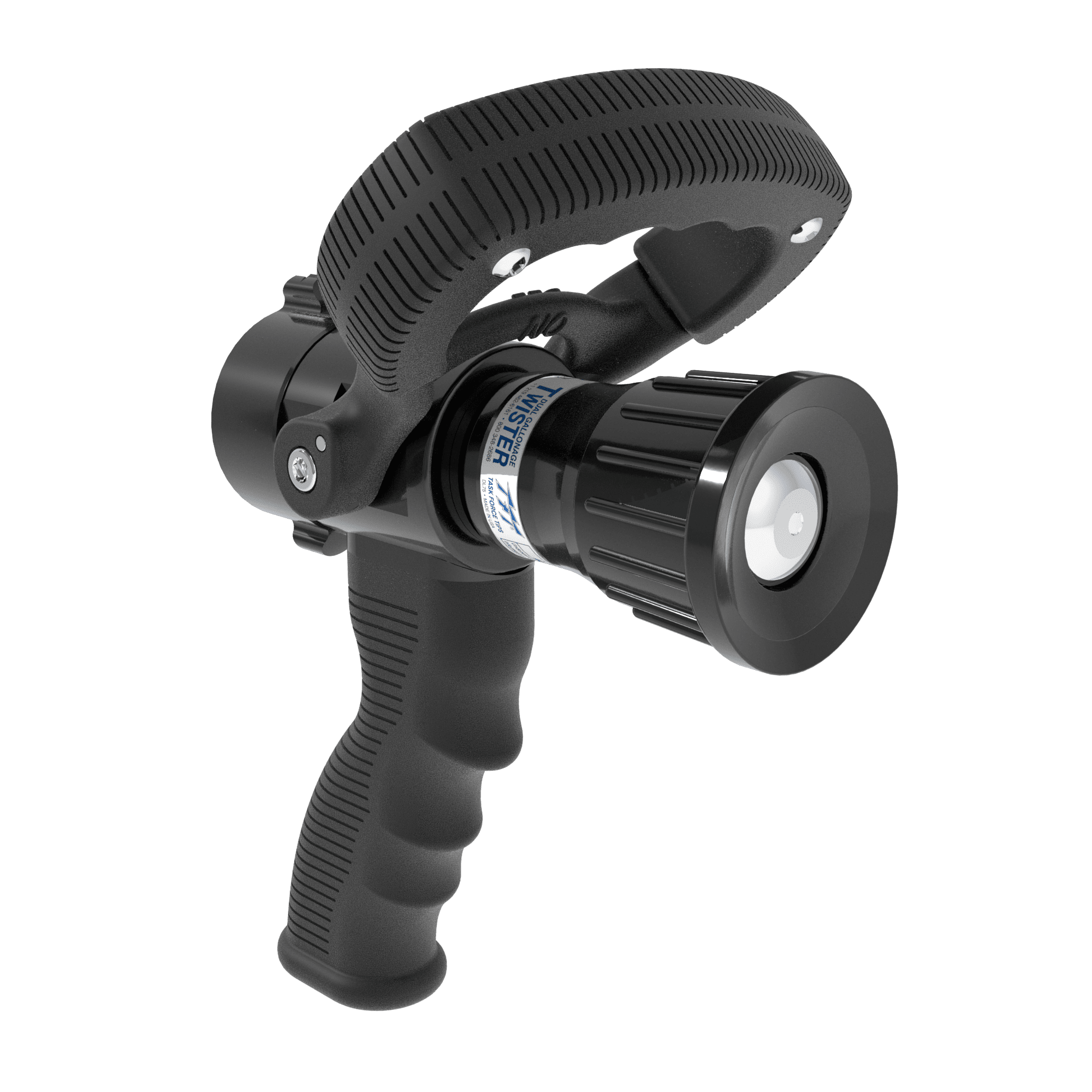

Twister Selectable One-Piece Nozzle With Pistol Grip, Ball Valve – 10/40 GPM @ 100 PSI, 1″ NHF Rocker Swivel Inlet

$407.00

image_pdf
SKU: DS1040P Category:

Economical and Reliable Wildland Nozzles

The Twister® series offers a lightweight, cost-effective nozzle solution for forestry and wildland firefighting. Designed for dual-gallonage or fixed-flow applications, these nozzles allow quick adjustments with a simple twist, providing dependable performance for varying fireground needs. Available in selectable and single-gallonage configurations, Twister® nozzles are also compatible with foam solutions and for more versatility without sacrificing reliability.

Key Features:

  • Dual-Gallonage and Fixed Flow Options: Provides flexibility with selectable flow rates of 10 & 24 GPM (37 & 90 LPM), 10 & 40 GPM (37 & 150 LPM), 20 & 60 GPM (30 & 75 LPM), and 20 & 95 GPM (75 & 360 LPM), along with a fixed flow option at 95 GPM (360 LPM) – all designed to operate to their specified flow rate at 100 PSI (7 Bar)
  • Adjustable Flow Patterns: Easily switches between off, straight stream, narrow fog, and wide fog patterns with a twist of the barrel
  • Lightweight Design: Engineered for easy handling and ideal for wildland and forestry firefighting
  • Foam Compatibility: Works seamlessly with foam solutions
  • Durable Construction: Knurled or rocker lug inlets with rigid or swivel connections for robust use
  • Ergonomic Grip Options: Available with or without pistol grips for customized handling

All Prices in USD

Specifications

Weight 2.700 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Twister®

Nozzle Type

Selectable

Nozzle Valve Style

Ball Valve

Nozzle Teeth

Toothless

Nozzle Style

One-Piece

Nozzle Grip

Pistol

Target Nozzle Flow (Imp)

10/40 GPM

Target Nozzle Flow (Met)

37/150 LPM

Target Nozzle Pressure (Imp)

100 PSI

Target Nozzle Pressure (Bar)

7 Bar

Target Nozzle Pressure (KPA)

700 KPA

Nozzle Hose Size (Imp)

1"

Nozzle Hose Size (Met)

25 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Swivel

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
