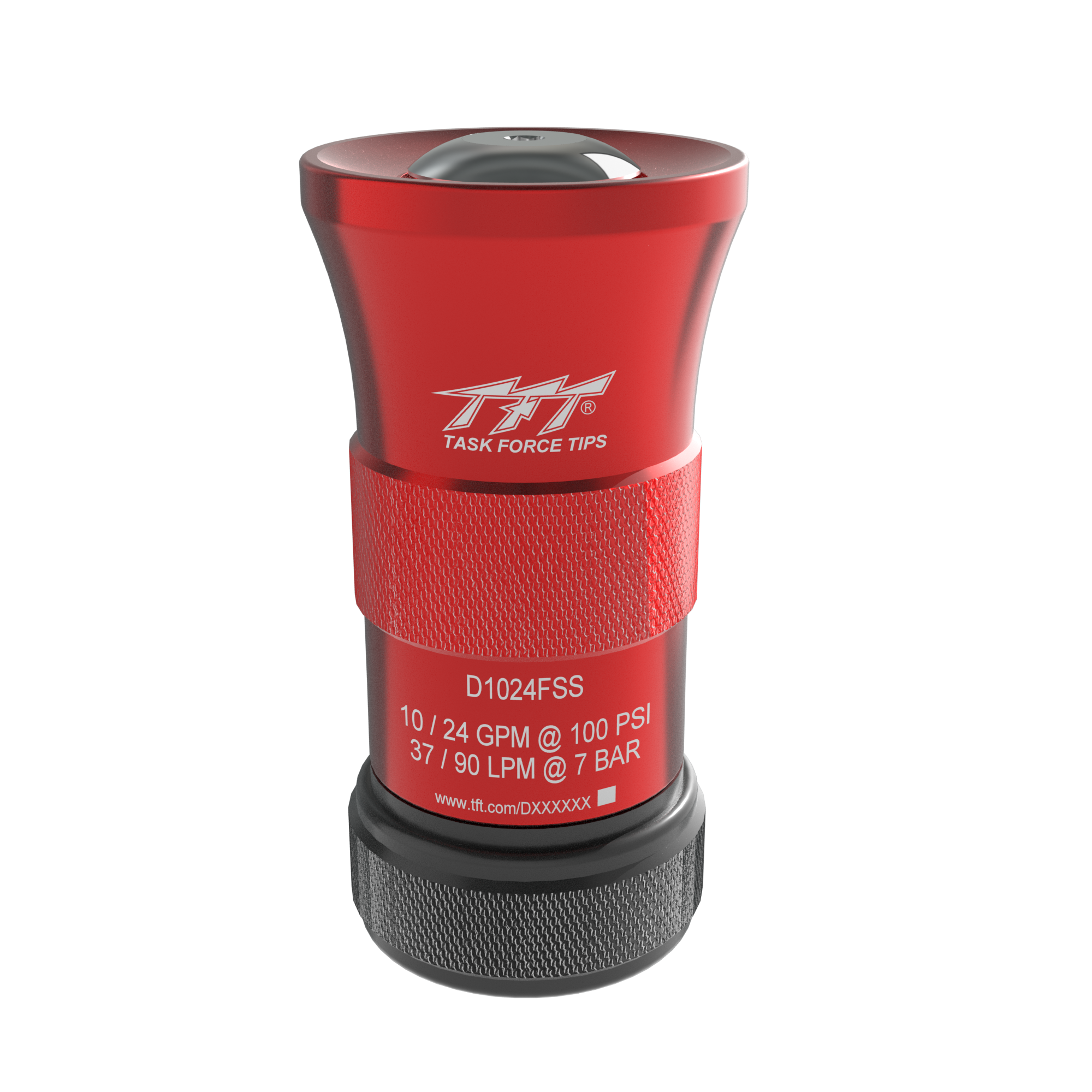

BARREL NOZZLE TIP 1.0″BSP RED NO BUMPER

$117.00

SKU: D1024FSS-BD Category:

10&24 GPM DUAL GALLONAGE W/SHUTOFF

The Twister Barrel nozzle is a selectable dual-gallonage combination nozzle designed to meet the requirements of USFS 5100-239. The nozzle operates at 10 & 24 GPM (37 & 90 LPM) at 100 PSI (7 bar). Operators twist the front of the barrel through the following positions: off, low flow straight stream, low flow narrow fog, high flow straight stream, high flow fog.

Features & Benefits:

  • Flow rate: 10 & 24 GPM (37 & 90 LPM)
  • Foam solution compatible
  • Knurled inlet coupling
  • No bumper

All Prices in USD

Specifications

Weight 0.550 lbs
Operating Pressure

Type

Selectable

Inlet Coupling Style

Remote Control

N

Valve Design

Pistol Grip

Body Size

1" (25 mm)

Break-Apart Style

Tip Only

Pressure Mode

Flow Rate

Style

Bumper Material

No Bumper

Inlet Coupling Swivel

Straight Tip

N

Documents

Instructions For Installation, Safe Operation and Maintenance

Technical Specifications and Drawings
