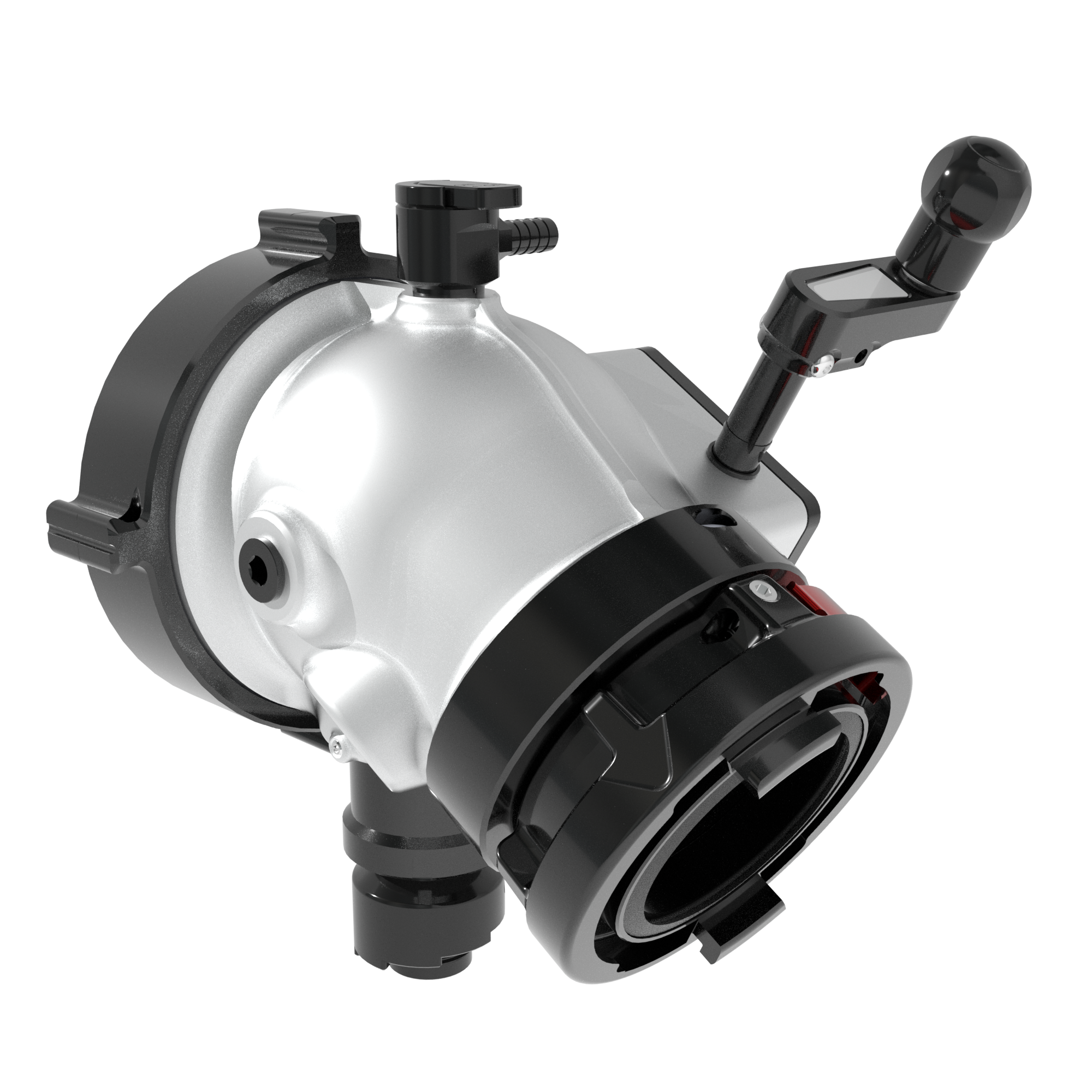

Low-Profile Intake Valve, Top Crank Controls, Rigid Elbow – 4″ Storz Swivel Street-Side, 5″ NHF Swivel Truck-Side, Pressure Relief Valve

Call for Price: 219-462-6161

image_pdf
SKU: ABD3SP-NT Category:

Compact Form Factor & Dependable Flow Control

The Low-Profile Ball Intake Valve is designed for compact pump panels and confined spaces, offering superior water flow and operational flexibility. These valves come with a variety of configurations to suit specific fire apparatus needs, including swivel and rigid elbow designs, manual top crank controls, and both Storz and NH thread options. The low-profile design makes it ideal for fitting behind roll-up doors, maximizing space on the pump panel while still delivering high-performance water flow. Each valve features an optional adjustable pressure relief valve to prevent overpressure situations, ensuring optimal safety and water control during operations.

Key Features:

  • Low-Profile Design: Allows for installation in confined spaces, perfect for tight pump panels or areas behind roll-up doors.
  • Swivel or Rigid Elbow Options: Available with either swivel or rigid elbow designs to enhance water flow and hose connection flexibility.
  • Top Crank Controls: Manual top crank controls for precise control over water intake and flow.
  • Storz and NH Thread Compatibility: Offers a range of Storz and NH thread configurations to fit multiple apparatus types.
  • Pressure Relief Valve: Optional pressure relief valve helps expel air and regulate system pressure, ensuring safe operation.
  • Rocker Lug Couplings: Secure connections with NH Female and NH Male rocker lugs, ensuring durability in high-pressure situations.
  • Corrosion-Resistant: Constructed from aluminum alloy with a hard coat anodized and powder-coated finish for enhanced corrosion resistance.
  • Multiple Size Options: Available in sizes from 3.5” to 6” to accommodate various water flow requirements.

All Prices in USD

Specifications

Weight 18.000 lbs
Pressure Relief Valve

Detent Swivel

Remote Control

N

LDH Outlet

LDH Inlet

Valve Control Type

Manual

Valve Control Location

Top Crank

Valve Elbow Style

Rigid

Bleeder Valve

Included

Street-Side Connection Type

STORZ

Street-Side Coupling Style

Quick-Connect

Street-Side Coupling Swivel

Swivel

Truck-Side Coupling Style

Rocker Lugs

Truck-Side Coupling Swivel

Swivel

Intake Valve Style

Low-Profile

Valve PRV Style

Plain Outlet

Valve PRV Location

Bottom Mount

Street-Side Size (Imp)

4"

Street-Side Size (Met)

100 mm

Truck-Side Size (Imp)

5"

Truck-Side Size (Met)

125 mm

Truck-Side Thread Type

NH Female

Waterway Size (Met)

93 mm

Waterway Size (Imp)

3.65"

Documents

Instructions For Installation, Safe Operation and Maintenance

Product Order Forms
