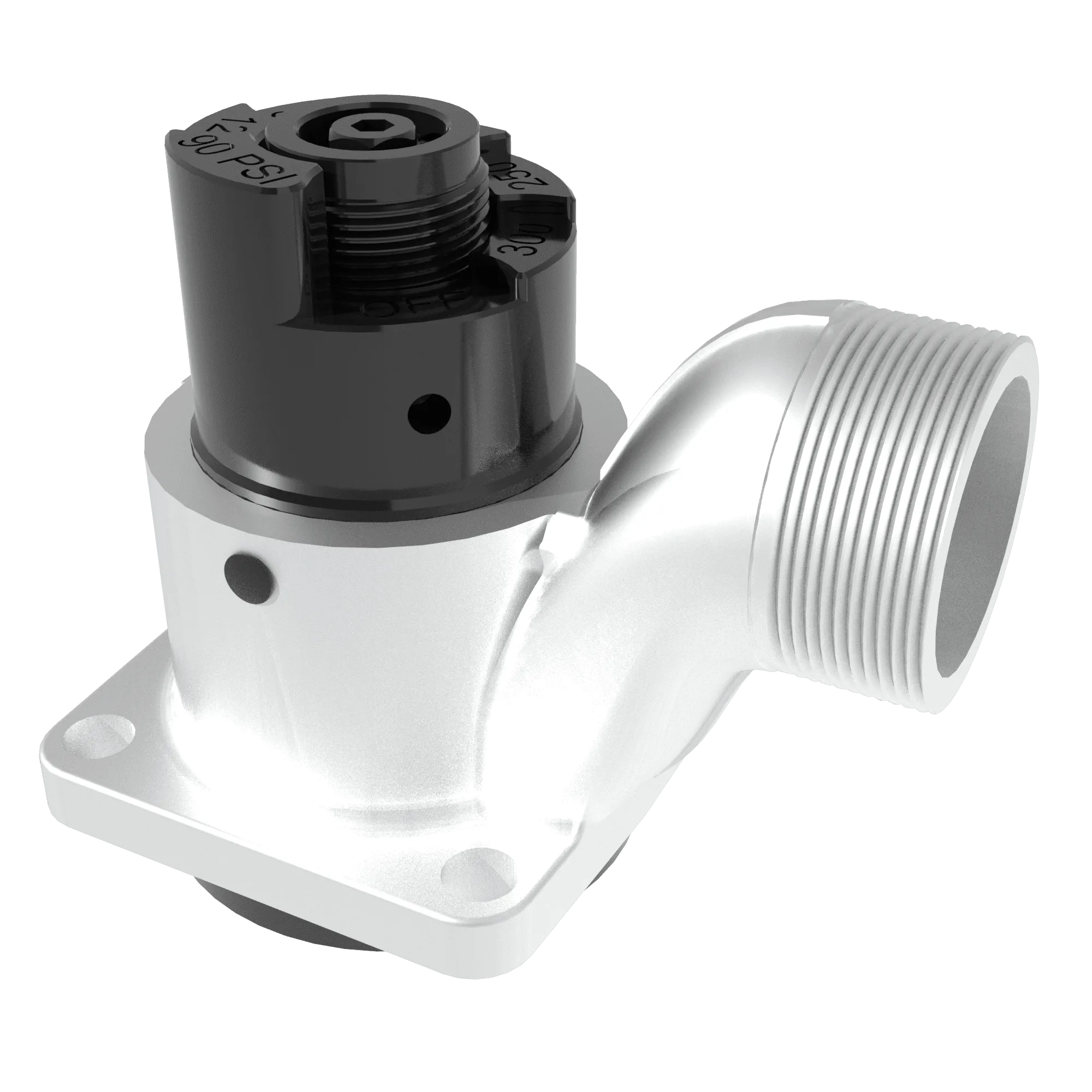

RELIEF VALVE 2.0″NPTM

Call for Price: 219-462-6161

SKU: A1840 Category:

DARLEY B.C. ALUM

A18 Series – PRESSURE RELIEF VALVE – TFT’s Pressure Relief Valve operates in an adjustment range from 90 to 300 psi (6 to 21 bar) with easy to see increments of 90, 125, 150, 200, 250, and 300 psi. Each pressure relief valve includes an OFF position. The pressure relief valve is NFPA 1900 compliant. The aluminum casting is hardcoat anodized, and TFT-powder coat finished inside and out for maximum corrosion protection. For direct use on pump flanges, the TFT pressure relief valve works with Darley, Waterous, or Hale bolt hole patterns. Relief valves are available with 2-inch male pipe thread, 2.5-inch male NH thread, or 2.5-inch Victaulic® connection on the discharge spout. Available adapters include 2.5″ and 3″ NPT male and female threaded inlets for mounting the TFT pressure relief valve to plumbing. Add 1.5 inches to depth for models A1850 and A1860

All Prices in USD

Specifications

Weight 3.040 lbs
Discharge

Inlet Type

Inlet

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
