HUM ALUM 6.0″ANSI EXT. DRAIN X 4.0″ANSI

Call for Price: 219-462-6161

SKU: ZBAZ31T8J Category:

C1-5.0″STORZ C2-2.5″NHM_GATED WYE

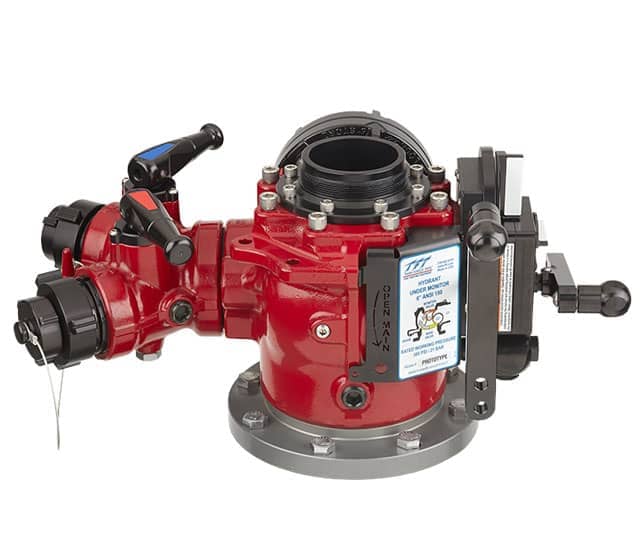

The Hydrant Under Monitor (HUM) is an integrated, alternative hydrant supply valve for industrial fire protection. The HUM has the same robust features of the Industrial Valve Under Monitor and has two additional full flow LDH ports that are configured to the facilities specification. Two concentric slow-close cup valves allow the monitor to be operated either independently or simultaneously with the LDH ports.

The main shutoff valve has a huge 5.25” waterway, located immediately above the 6” ANSI 150 inlet flange. When the monitor valve above is also open, flow to the monitor from the fire protection riser is completely unobstructed for the lowest possible friction loss. Each valve control is clearly marked with separate color-coded position indicators that are reflective for visibility in all light conditions.

All Prices in USD

Specifications

Weight 62.000 lbs
Port C2

Drain

Oscillation

Remote Control

N

Product

Hydrant Under Monitor (HUM)

Inlet

Port C1

Outlet

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance

Certifications & Approvals
