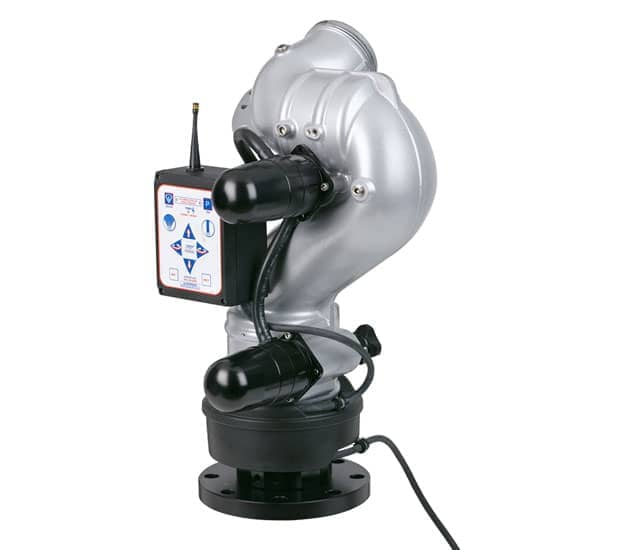

Typhoon RC 1500 GPM (6000 LPM) Monitor, Pumper – 3″ (75 mm) RLF Rigid Inlet, 3.5″ (90 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver

Name: Typhoon RC 1500 GPM (6000 LPM) Monitor, Pumper - 3" (75 mm) RLF Rigid Inlet, 3.5" (90 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver - Task Force Tips
Brand: Typhoon™
SKU: Y5-EL1A
Price: 11973.00 USD
Availability: InStock

$11,973.00

SKU: Y5-EL1A Category: Fixed Monitors

Versatile High-Flow Monitor

The Typhoon™ Monitor offers exceptional performance and adaptability, making it ideal for pumper, ladder, and platform apparatus. Capable of flowing up to 1500 GPM (6000 LPM), Typhoon combines high-volume water delivery with multiple actuation and mounting options to meet diverse firefighting needs.

Key Features:

High-Flow Capacity: With a maximum flow rate of 1500 GPM (6000 LPM), Typhoon delivers powerful water streams for effective fire suppression
Low Friction Loss: Engineered for efficiency, Typhoon features only 19 PSI (1.3 bar) of friction loss at full flow, ensuring excellent stream quality and reach
Versatile Actuation Options:
- Manual Control: Choose between a tiller bar, dual handwheels, or a combination of both for precise manual operation
- Remote-Controlled Models: Electric models offer 12/24 VDC compatibility and seamless RS485 communication for intuitive and precise control
Specialized Models: Typhoon is available in standard, ladder, and platform configurations, with ladder and platform models featuring factory-installed horizontal travel stops (180° total) to prevent collisions with apparatus structures
Wide Range of Motion:
- Horizontal: 450° total range on standard and pumper models, 180° range on ladder and platform models with horizontal travel stops
- Vertical: -45° to 90°, with ladder platform models capable of additional travel to -45° to 110° (specific configurations)
Compatibility with Extend-A-Gun: Typhoon is fully compatible with Extend-A-Gun for extended reach and operational flexibility
Customizable Inlet and Outlet Options: Available with various inlet and outlet sizes and connection types, including flanges, threaded options, and riser flanges, to suit specific apparatus designs
Durable Construction: Built with high-quality materials and powder-coated finishes, Typhoon ensures reliable operation and long-lasting performance in harsh firefighting environments

All Prices in USD

Specifications
Documents

Specifications

Weight	41.000 lbs
Oscillation	N
Remote Control	N
Color	Silver
Brand	Typhoon™
Max GPM	1500 GPM
Max LPM	6000 LPM
Certifications	CE
Monitor Nozzle Size (Imp)	3.5"
Monitor Nozzle Size (Met)	90 mm
Monitor Nozzle Type	NH Male
Monitor Nozzle Style	Male Threads
Monitor Nozzle Swivel	Rigid
Fixed Monitor Type	Pumper
Monitor Actuation Type	Remote Control
Monitor Electronic Protocol	RS485
Monitor Accessory Power	12/24 VDC
Fixed Monitor Bundle	Monitor Only
Monitor Supply Size (Imp)	3"
Monitor Supply Size (Met)	75 mm
Monitor Supply Type	RL Female
Monitor Supply Style	Female Threads
Monitor Supply Swivel	Rigid
Monitor Horizontal Control	3" Handwheel
Monitor Horizontal Range	450°
Monitor Vertical Control	3" Handwheel
Monitor Vertical Range	-45° – 90°

Documents

Technical Specifications and Drawings

Service Procedures

Certifications & Approvals

RC Monitors, Nozzles and Controls CE Declaration of Conformity

Instructions For Installation, Safe Operation and Maintenance
