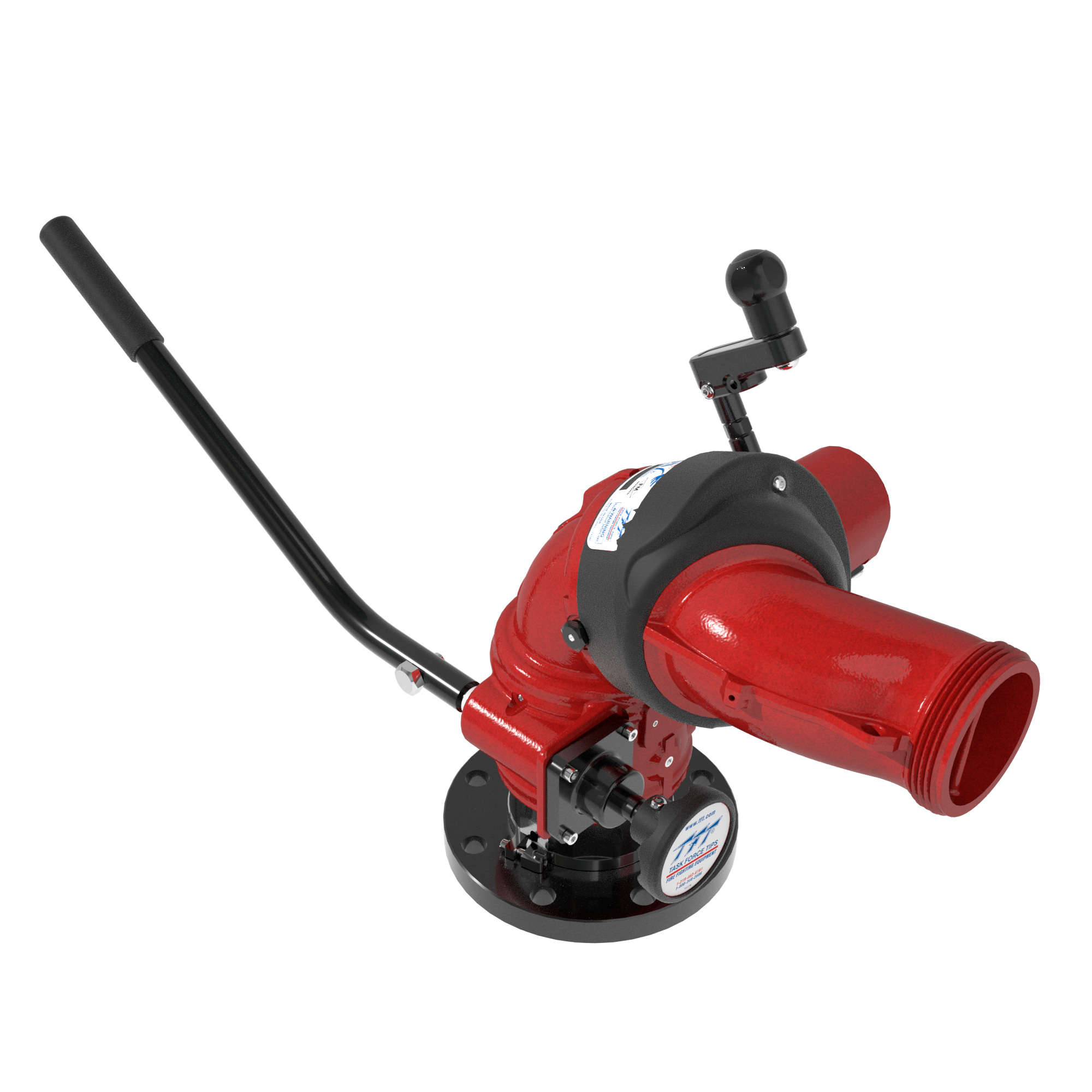

Monsoon Tiller+Crank 1250 GPM (4500 LPM) Monitor, Pumper – 4″ (100 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 2.5″ (65 mm) NHM Rigid Outlet, Red

$4,340.00

image_pdf
SKU: Y4-T25A-Z Category:

High-Capacity, Low-Friction Firefighting Monitor

Monsoon® delivers powerful water flow with minimal friction loss for maximum efficiency. With flows up to 2000 GPM (7600 LPM) and various configurations to suit pumpers, aerial ladders, and platforms, Monsoon is the high-performance fixed monitor designed to meet your firefighting needs.

Key Features:

  • High-Capacity Flow Options: Select from 1250 GPM (4750 LPM) or 2000 GPM (7600 LPM) to handle a wide range of firefighting scenarios, ensuring optimal performance in demanding environments
  • Low Friction Loss: The patented segmented waterway design reduces turbulence and minimizes friction loss, achieving as low as 6 PSI at 1250 GPM for efficient and far-reaching water delivery
  • Configurable Models: Available in manual and remote-control (RC) versions to fit your apparatus or operational preferences. Choose models designed specifically for pumpers, aerial ladders, or platforms
  • Extensive Range of Movement:
    • Vertical travel: 90° above horizontal to 45° below
    • Horizontal travel: 360° for manual models and 450° for RC models (or 180° for ladder and platform models)
  • Durable Construction: Built with rugged materials, including powder-coated finishes and robust internal components, to withstand harsh conditions and ensure long-lasting reliability
  • Field Adjustable Stops: Easily adjust vertical and horizontal travel stops to limit movement, ensuring safe operation in confined spaces or near obstructions
  • Flexible Control Options:
    • Manual models: Dual crank or tiller bar for intuitive operation
    • Remote-control models: RS485 compatibility with precise electronic controls for programming and diagnostics
  • Compact and Versatile: Compact design fits seamlessly on pumpers, ladders, or platforms, making Monsoon adaptable to a variety of apparatus configurations and operational needs

All Prices in USD

Specifications

Weight 30.200 lbs
Oscillation

Remote Control

N

Color

Brand

Monsoon®

Max GPM

1250 GPM

Max LPM

4500 LPM

Certifications

FM

Monitor Nozzle Size (Imp)

2.5"

Monitor Nozzle Size (Met)

65 mm

Monitor Nozzle Type

NH Male

Monitor Nozzle Style

Male Threads

Monitor Nozzle Swivel

Rigid

Fixed Monitor Type

Pumper

Monitor Actuation Type

Tiller Bar & Crank

Fixed Monitor Bundle

Monitor Only

Monitor Supply Size (Imp)

4"

Monitor Supply Size (Met)

100 mm

Monitor Supply Type

ANSI 150/DN100 PN16

Monitor Supply Style

Flange

Monitor Supply Swivel

Rigid

Monitor Horizontal Control

Tiller Bar

Monitor Horizontal Range

360°

Monitor Vertical Control

Crank

Monitor Vertical Range

-45° – 90°

Documents

Technical Specifications and Drawings

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance

Service Procedures
