Tornado RC 500 GPM (2000 LPM) Monitor, Pumper, Oscillating – 2″ (52 mm) NPTF Rigid Inlet, 2.5″ (65 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver

Name: Tornado RC 500 GPM (2000 LPM) Monitor, Pumper, Oscillating - 2" (52 mm) NPTF Rigid Inlet, 2.5" (65 mm) NHM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver - Task Force Tips
Brand: Tornado®
SKU: Y2-E81A
Availability: InStock

Call for Price: 219-462-6161

SKU: Y2-E81A Category: Fixed Monitors

Compact, High-Performance Firefighting Monitor

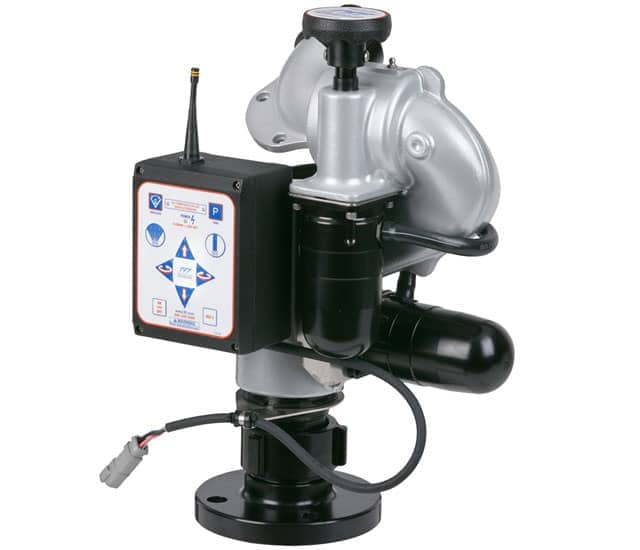

The Tornado™ Fixed Monitor is a remotely controlled, truck-mounted monitor engineered for precise water delivery and operational flexibility. Capable of flowing up to 500 GPM (2000 LPM), it is designed to tackle demanding firefighting and industrial applications with ease.

Key Features:

Remote Control Precision: Features electric remote control of rotation (370°), elevation (90° above horizontal to 45° below), and nozzle stream pattern for seamless operation in dynamic scenarios
Programmable Options: Includes programmable oscillation, park functions, and auxiliary controls for enhanced versatility and customization
Built-In Stream Straightener: An integral stream straightener improves water flow efficiency and enhances stream reach for effective performance in critical situations
Durable and Resilient: Constructed from hard-coat anodized aluminum alloy with a powder coat finish inside and out, ensuring long-lasting performance under extreme conditions
Flexible Installation: Compatible with a variety of flange and threaded inlets, including locking quick-connect options, allowing easy integration into different vehicle configurations
Low Maintenance: Equipped with grease zerk fittings for effortless lubrication and easy-to-replace seals and components using common hand tools
Safety and Control: Includes user-installed travel limit stops for horizontal rotation to ensure precise and safe operation
Specialized Dust Mitigation Models: IP66/67-rated models available with upgraded seals and enhanced protection for industrial and environmental applications
Streamlined User Controls: Onboard user controls allow for intuitive management of rotation, elevation, and nozzle adjustments directly from the monitor or via remote options
Versatile Applications: Suitable for fire suppression on trucks and pumpers, as well as industrial firefighting and dust mitigation operations

All Prices in USD

Specifications
Documents

Specifications

Weight	25.600 lbs
Oscillation	N
Remote Control	N
Color	Silver
Brand	Tornado®
Max GPM	500 GPM
Max LPM	2000 LPM
Certifications	CE
Monitor Nozzle Size (Imp)	2.5"
Monitor Nozzle Size (Met)	65 mm
Monitor Nozzle Type	NH Male
Monitor Nozzle Style	Male Threads
Monitor Nozzle Swivel	Rigid
Fixed Monitor Type	Pumper
Monitor Actuation Type	Remote Control
Monitor Electronic Protocol	RS485
Monitor Accessory Power	12/24 VDC
Fixed Monitor Bundle	Monitor Only
Monitor Supply Size (Imp)	2"
Monitor Supply Size (Met)	52 mm
Monitor Supply Type	NPT Female
Monitor Supply Style	Female Threads
Monitor Supply Swivel	Rigid
Monitor Horizontal Control	3" Handwheel
Monitor Horizontal Range	370°
Monitor Vertical Control	3" Handwheel
Monitor Vertical Range	-45° – 90°
Monitor Special Features	Programmable Oscillation

Documents

Technical Specifications and Drawings

Service Procedures

Certifications & Approvals

RC Monitors, Nozzles and Controls CE Declaration of Conformity

Instructions For Installation, Safe Operation and Maintenance
