TORNADO RC

Call for Price: 219-462-6161

SKU: Y2-E62A Category:

2.5″ANSI 150 X 2.5″BSPM

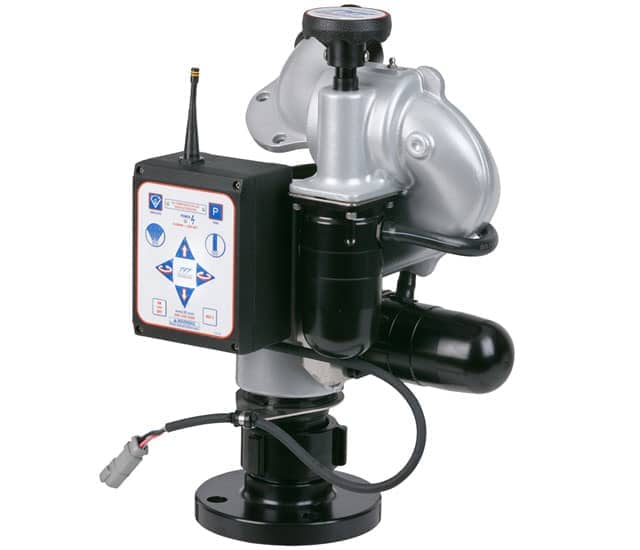

Rated up to 500 gpm, the Tornado is a remotely controlled truck mounted monitor with electric remote control of rotation and elevation angle and nozzle pattern. The electric motor shall provide elevation control from 90° above horizontal to 45° below horizontal. The unit shall have an electronically operated 370° horizontal rotational travel, user installed travel limit stops, stainless steel worm gear drive with manual override knobs, and shall have grease zerk fittings for easy service and lubrication. User operation controls shall be mounted on the monitor, and shall include rotation, elevation, and nozzle stream pattern control programmable park and oscillate and two auxiliary controls. Optional remote wired, tethered and wireless remote controls shall be available. The discharge elbow shall include an integral stream straightener. The monitor shall be constructed of hard coat anodized aluminum alloy and shall have a silver powder coat finish inside and out. Various flange and threaded inlets including locking quick connect shall be available (specify). Unit shall have serial number and a 5-year warranty.

All Prices in USD

Specifications

Weight 25.300 lbs
Horizontal Movement (degrees)

Vertical Control

Certification

CE

Oscillation

Remote Control

N

Valve Design

Oscillation Method

Apparatus

Pumper

Inlet

Horizontal Control

3" Handwheel

Vertical Movement (degrees)

Max Flow

Finish

Outlet

Operation Energy Source

Documents

Technical Specifications and Drawings

Service Procedures

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
