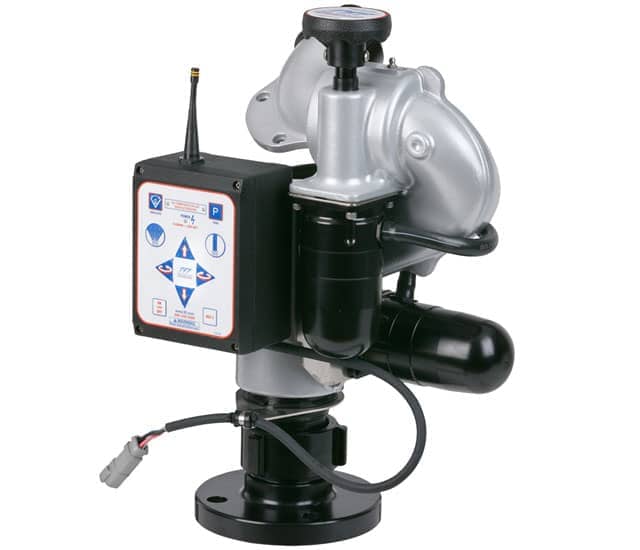

Compact, High-Performance Firefighting Monitor

The Tornado™ Fixed Monitor is a remotely controlled, truck-mounted monitor engineered for precise water delivery and operational flexibility. Capable of flowing up to 500 GPM (2000 LPM), it is designed to tackle demanding firefighting and industrial applications with ease.

Key Features:

  • Remote Control Precision: Features electric remote control of rotation (370°), elevation (90° above horizontal to 45° below), and nozzle stream pattern for seamless operation in dynamic scenarios
  • Programmable Options: Includes programmable oscillation, park functions, and auxiliary controls for enhanced versatility and customization
  • Built-In Stream Straightener: An integral stream straightener improves water flow efficiency and enhances stream reach for effective performance in critical situations
  • Durable and Resilient: Constructed from hard-coat anodized aluminum alloy with a powder coat finish inside and out, ensuring long-lasting performance under extreme conditions
  • Flexible Installation: Compatible with a variety of flange and threaded inlets, including locking quick-connect options, allowing easy integration into different vehicle configurations
  • Low Maintenance: Equipped with grease zerk fittings for effortless lubrication and easy-to-replace seals and components using common hand tools
  • Safety and Control: Includes user-installed travel limit stops for horizontal rotation to ensure precise and safe operation
  • Specialized Dust Mitigation Models: IP66/67-rated models available with upgraded seals and enhanced protection for industrial and environmental applications
  • Streamlined User Controls: Onboard user controls allow for intuitive management of rotation, elevation, and nozzle adjustments directly from the monitor or via remote options
  • Versatile Applications: Suitable for fire suppression on trucks and pumpers, as well as industrial firefighting and dust mitigation operations

Specifications

Color

Product Dimensions (L × W × H in)

9.4 x 12.4 x 19.5
Brand

Tornado®
Product Dimensions (L × W × H mm)

238.8 x 315.0 x 495.3
Weight 26.900 lbs
Bundle

Monitor Only
Monitor Type

Pumper
Certifications

CE
Monitor Electronic Protocol

RS485
Monitor Accessory Power

12/24 VDC
Monitor Supply Size (Imp)

2"
Monitor Supply Size (Met)

52 mm
Monitor Supply Type

BSP Female
Monitor Supply Style

Female Threads
Monitor Supply Swivel

Rigid
Monitor Horizontal Control

3" Handwheel
Monitor Horizontal Range

370°
Monitor Vertical Control

3" Handwheel
Monitor Vertical Range

-45° – 90°
Monitor Special Features

Programmable Oscillation
Monitor Control

Remote Control
Monitor Supply Inlets

Single
Monitor Outlet Size (Imp)

2.5"
Monitor Outlet Size (Met)

65 mm
Monitor Outlet Type

NH Male
Monitor Outlet Style

Male Threads
Monitor Outlet Swivel

Rigid
Max Flow Rate (GPM)

500 GPM
Max Flow Rate (LPM)

2000 LPM
Swing Radius (in)

8.3
Swing Radius (mm)

210.8
