CrossFire Portable Monitor +MasterStream 1000 Automatic & Smooth Bore Nozzle Package, 10″ Stream Straightener – 5″ (125 mm) Storz Swivel Inlet, 2.5″ (65 mm) NHM Outlet, Storage Bracket

$9,017.00

SKU: XFC-52-1ST1L Category:

Your Complete Firefighting Monitor Package

CrossFire® Monitor Packages deliver a complete setup with smooth bore, selectable, or automatic nozzles and multiple connection options. Engineered for maximum adaptability, each package is designed to handle demanding firefighting scenarios with flows up to 1250 GPM (4500 LPM). Safety features ensure secure and efficient operation.

Key Features :

  • Comprehensive Package : Includes monitor top, base, nozzle, and storage for a complete setup
  • Nozzle Variety : Available with smooth bore, selectable, or automatic nozzles for operational flexibility
  • High Flow : Delivers up to 1250 GPM (4500 LPM) for powerful water delivery
  • Safety-Focused : Equipped with safety inlet(s), a safety tie-down strap, and secure base for safe and stable operation
  • Connection Flexibility : Swivel inlets and multiple connection options ensure deployment within your response district
  • 360° Horizontal Range : Full rotation capabilities for maximum area coverage

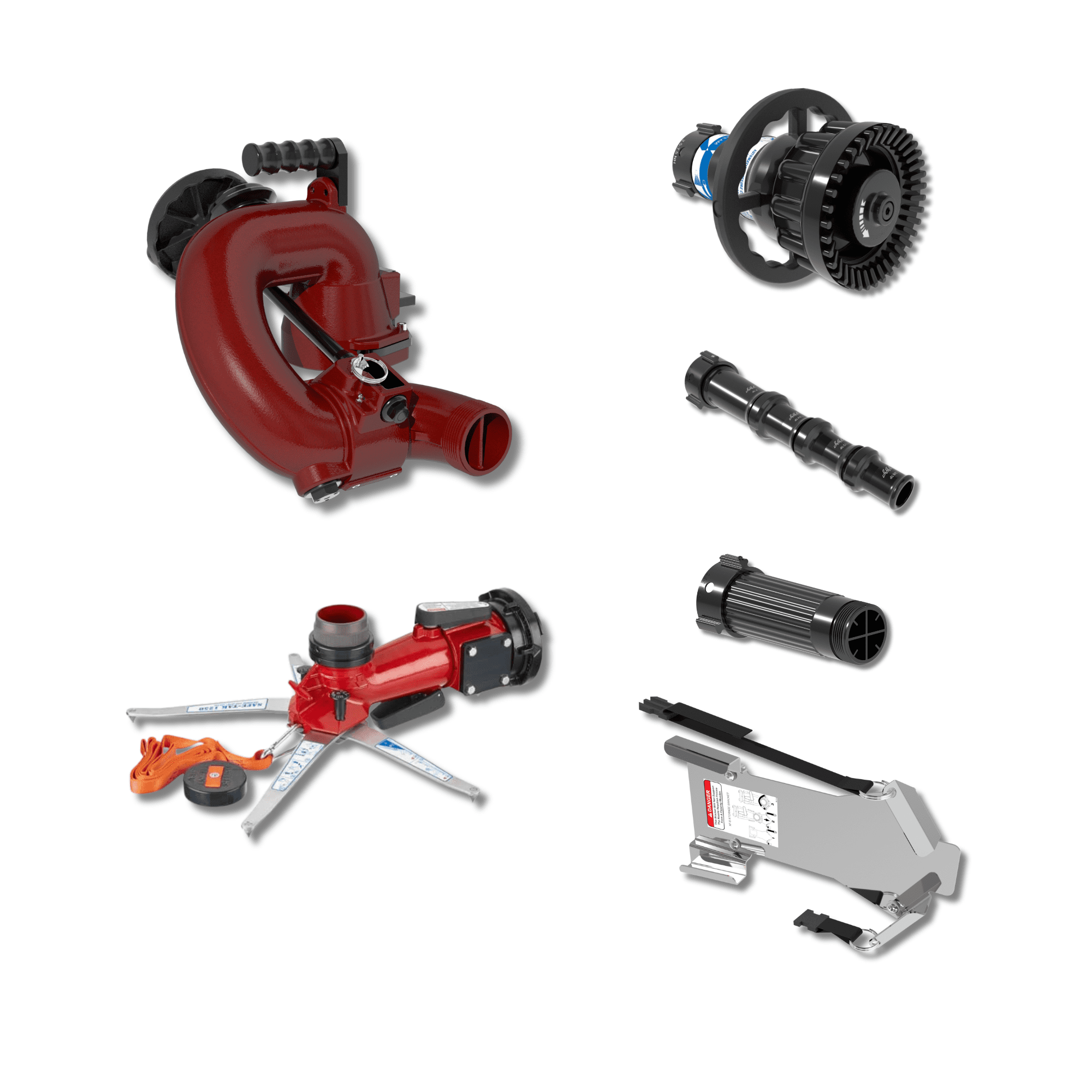

This Package Includes:

  • M-R1000-NJ – MasterStream 1000 Automatic Nozzle, Halo, 2.5″ NH Female, 150-1000 GPM at 100 PSI
  • MST-4NJ – Smooth Bore Stacked Tips Nozzle, 2.5” NH Female (1-3/8”, 1-1/2”, 1-3/4”)
  • XF-SS10 – 10″ Stream Straightener, 2.5″ NH Female
  • XFH-1ST – SafeTak Base, 5″ Storz, Single Inlet, 1250 GPM
  • XFT-NJ – CrossFire Monitor Top, 2.5″ NH Male Outlet
  • XF-B – CrossFire Storage Bracket

All Prices in USD

Specifications

Weight 0.000 lbs
Package

Oscillation

Safety Shutoff

Color

High Elevation

N

Brand

CrossFire®

Storage Bracket

Included

Stream Straightener

10"

Horizontal Range

360°

Vertical Range

90°-90°

Max GPM

1250 GPM

Max LPM

4500 LPM

Safety

Safety Inlet & Tie Down Strap

Bundle

Monitor Package

Portable Monitor Valve Type

Valveless

Bundle Nozzle Type

Automatic & Smooth Bore

Bundle Nozzle Brand

MasterStream 1000 Automatic & Smooth Bore Stacked Tips

Portable Monitor Type

Standard

Monitor Hose Inlets

Single

Monitor Hose Size (Imp)

5"

Monitor Hose Size (Met)

125 mm

Monitor Hose Type

STORZ

Monitor Hose Style

Quick-Connect

Monitor Hose Swivel

Swivel

Monitor Nozzle Size (Imp)

2.5"

Monitor Nozzle Size (Met)

65 mm

Monitor Nozzle Type

NH Male

Monitor Nozzle Style

Male Threads

Monitor Nozzle Swivel

Rigid

Documents

Technical Specifications and Drawings
