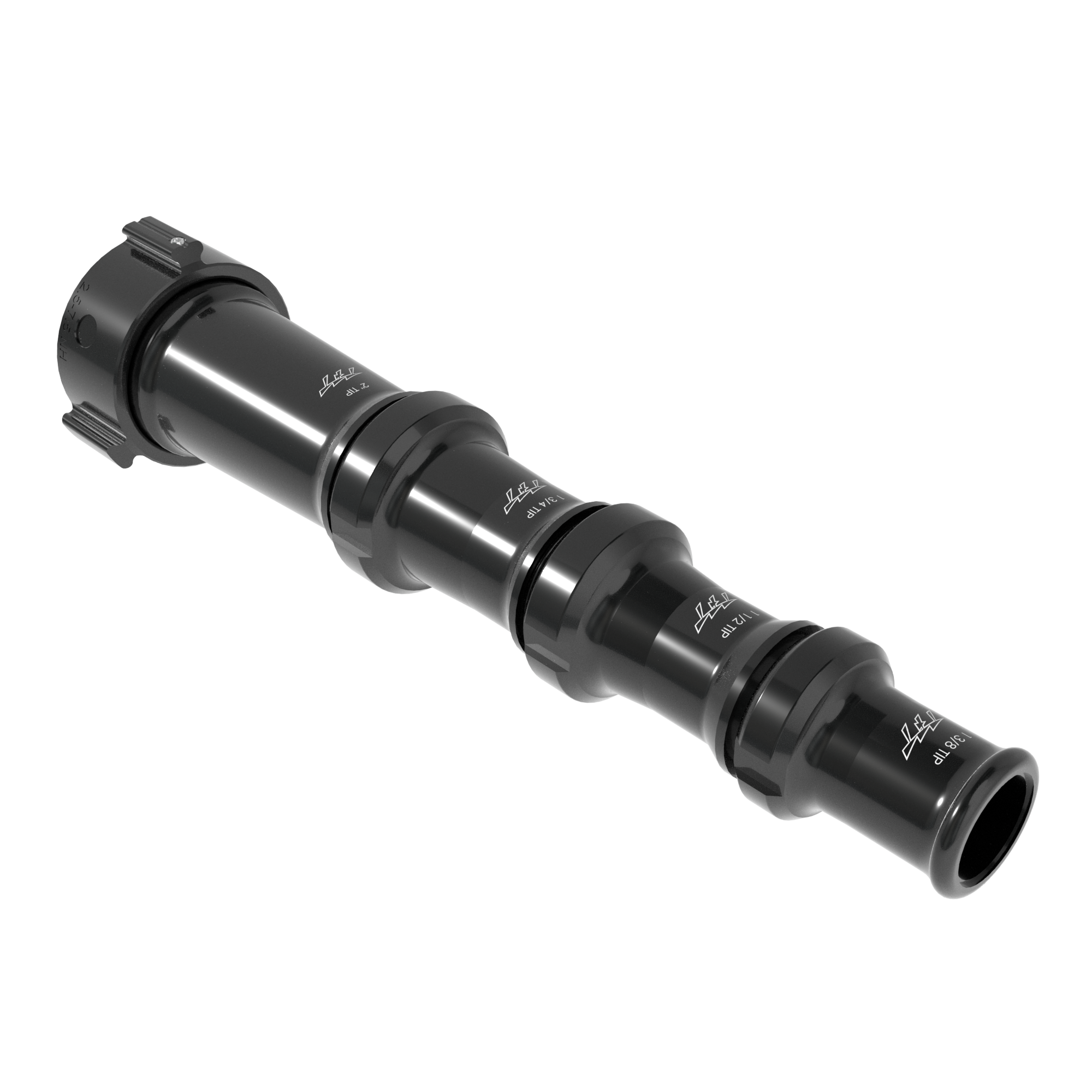

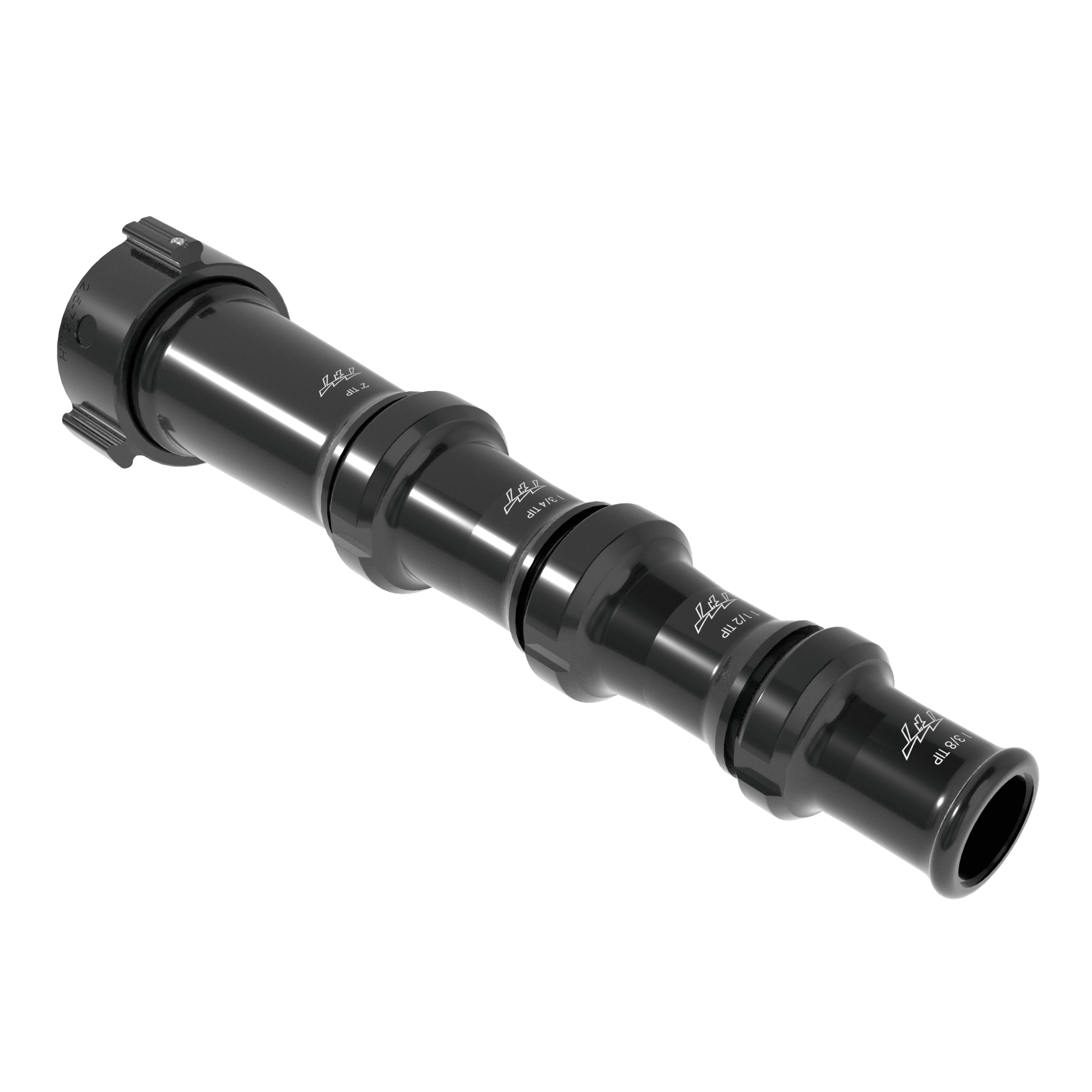

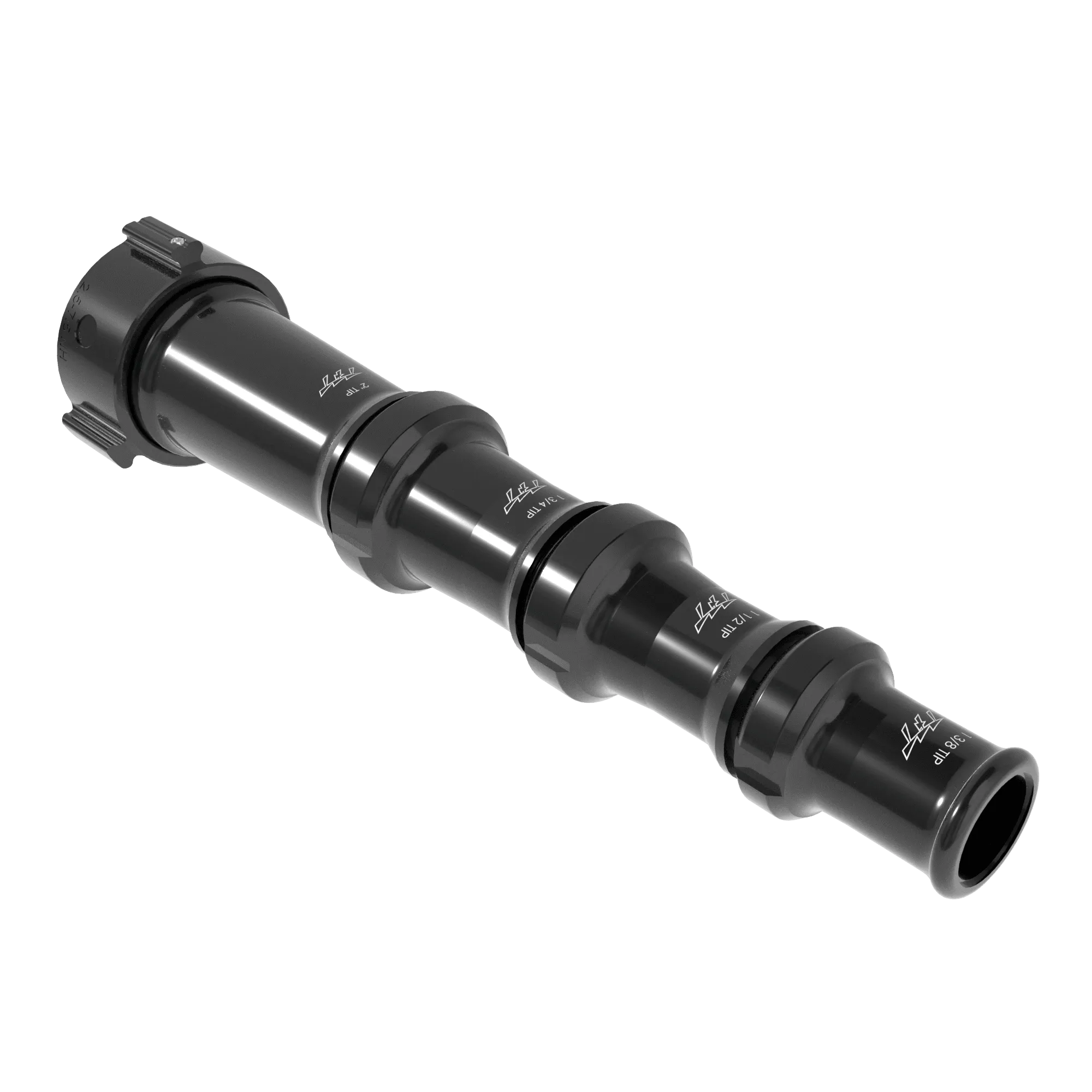

Smooth Bore Masterstream Quad Stack Nozzle Tip Set (1-3/8″, 1-1/2″, 1-3/4″, 2) – 2.5″ NHF Inlet

SKU MST-4NJ Categories , Tag Brand:

Print, Post, or Pass It On!

SKU MST-4NJ Categories , Tag Brand:
Email
Facebook
LinkedIn

Unmatched Stream Reach & Penetration

Smooth Bore Masterstream Nozzles deliver powerful, straight streams for maximum reach and fireground penetration, ensuring optimal performance in firefighting operations.

Key Features:

  • High-Quality Construction: Made from aluminum alloy with hard coat anodization for durability
  • Exceptional Stream Quality: Smooth, tapered waterway for a solid and focused stream
  • Critical Orifice Protection: Recessed edge and aluminum bumper shield the nozzle from damage
  • Easy Identification: Laser-engraved tip size and pressure/flow chart for quick reference
  • Wide Flow Range: Handles flow rates from 250 GPM (900 LPM) to 5,000 GPM (19,000 LPM) based on tip size
  • Lightweight: Designed for easy handling without compromising performance
  • Enhanced Durability: Hard coat finish resists wear and tear in the most demanding environments
  • Monitor Compatibility: Compatible with portable and fixed monitors from any manufacturer for any application
  • Proven Reliability: Simple, no-frills design for consistent, effective fireground operation

Specifications

Color

Nozzle Valve Style

Sold Separately

Nozzle Teeth

None

Brand

Smooth Bore

Shipping Box Dimensions 18.00 × 12.00 × 8.00 in
Weight 3.000 lbs
Target Nozzle Flow (Imp)

500/600/850/1200 GPM

Target Nozzle Flow (Met)

1900/2300/3200/4500 LPM

Target Nozzle Pressure (Bar)

5 Bar

Target Nozzle Pressure (KPA)

500 KPA

Nozzle Type

Smooth Bore

Nozzle Style

Stacked Tips

Target Nozzle Pressure (Imp)

80 PSI

Nozzle Orifice Size (Imp)

1-3/8", 1-1/2", 1-3/4", 2"

Nozzle Orifice Size (Met)

35 mm, 38 mm, 44 mm, 51 mm

Product Length (Imp)

17"

Product Length (Met)

43.18 cm

Nozzle Shaper Actuation

Manual

Nozzle Power

Manual

Nozzle Inlet Size (Imp)

2.5"

Nozzle Inlet Size (Met)

65 mm

Nozzle Inlet Connection Type

NH Female

Nozzle Inlet Coupling Style

Rocker

Nozzle Inlet Coupling Swivel

Swivel

Reviews

There are no reviews yet

Add a review
Currently, we are not accepting new reviews

Documents

Flow & Reaction Charts

Technical Specifications and Drawings
