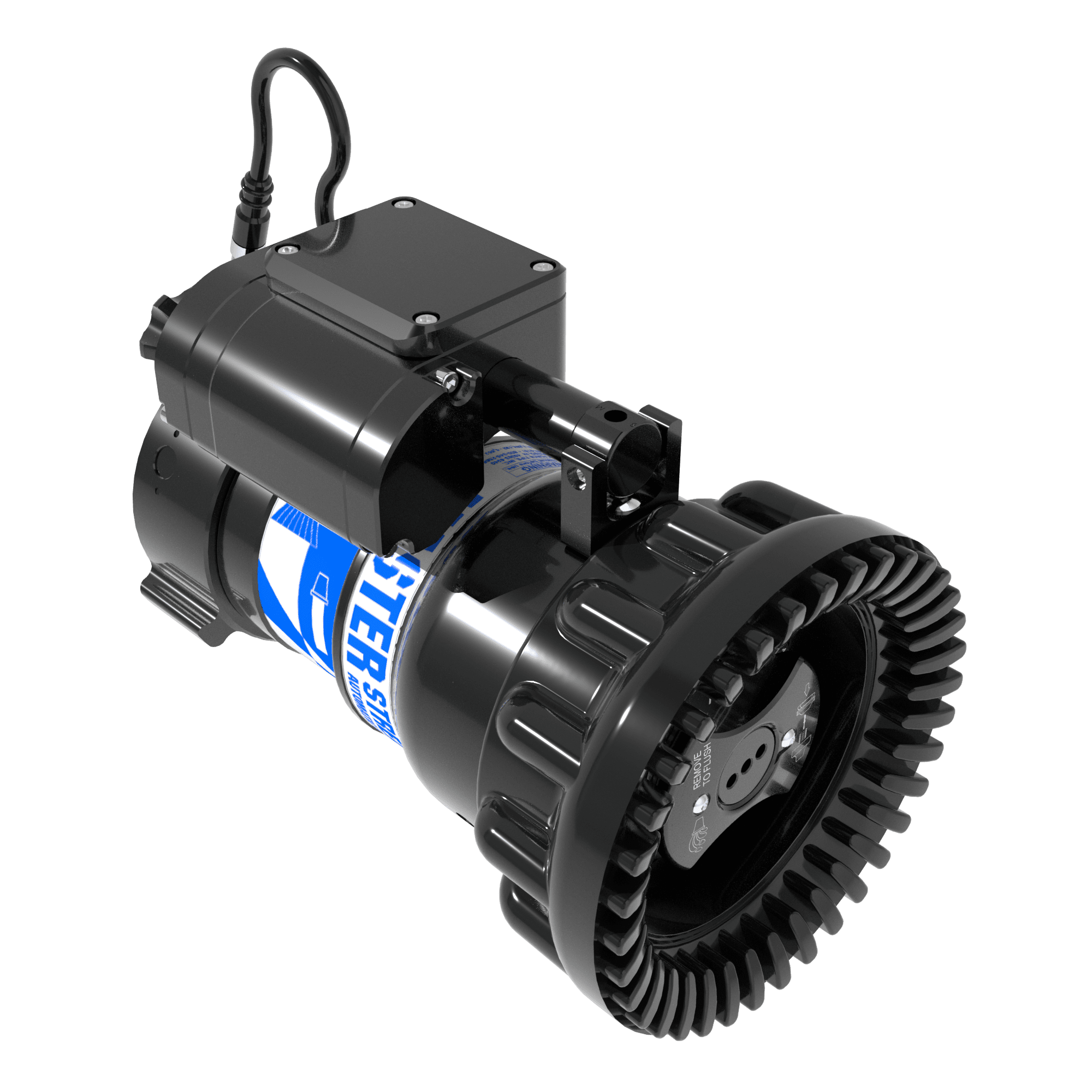

MASTER STREAM 1500 ER W/PLUG 3.5″F

Name: MASTER STREAM 1500 ER W/PLUG 3.5"F - Task Force Tips
SKU: M-ERP1500-NN
Price: 3055.00 USD
Availability: InStock

$3,055.00

SKU: M-ERP1500-NN Category: Masterstream Nozzles

12-24 VDC-300-1500 GPM @ 100 PSI AUTO

The M-ERP1500-NN has a flow capacity of 300-1500 gpm (1100-6000 l/min). With a twist of the large knob on the front of the nozzle, operating pressure can be immediately adjusted to tactile detent settings between 70 and 120 psi (4.8 and 8.3 bar). Specify coupling size (2.5″, 3.0″, 3.5″, 4.0″) (65 mm, 75 mm, 90 mm, 100 mm) and threads. 3.5″NH (90 mm) rocker lug swivel coupling is standard. For use on TFT RC monitors only.

All Prices in USD

Specifications
Documents

Specifications

Weight	17.300 lbs
Operating Pressure	70-120psi (4.8-8.3bar)
Type	Automatic
Inlet Coupling Style	Rocker
Remote Control	Y
Valve Design	No Valve
Pressure Mode	Adjustable
Flow Rate	300-1500 gpm (1100-6000 l/min)
Bumper Material	Rubber – press fit
Inlet Coupling Swivel	Non-Full Time Swivel

Documents

Technical Specifications and Drawings

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
