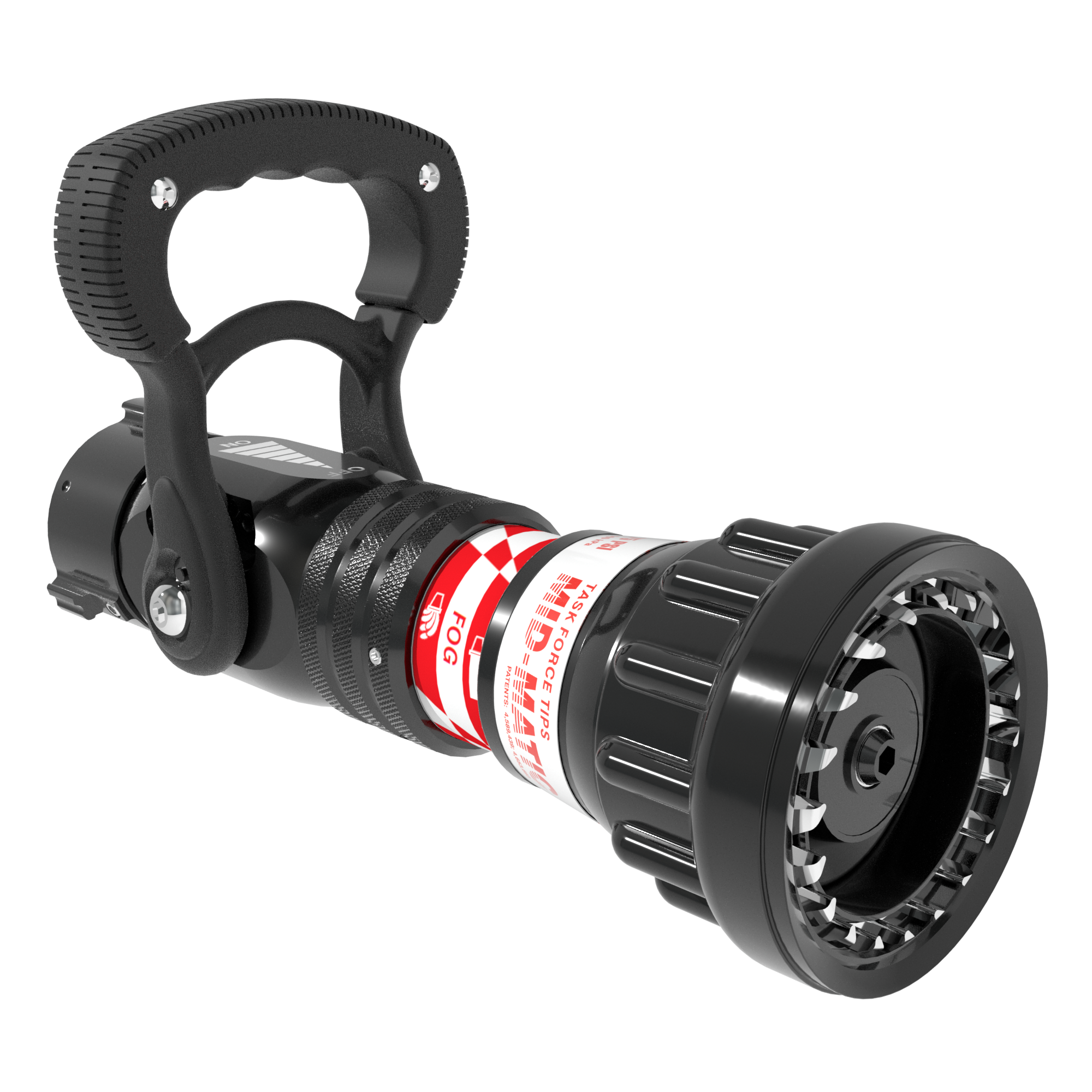

Mid-Matic Automatic One-Piece Nozzle, Slide Valve – 70-200 GPM @ 75 PSI, 1.5″ NHF Rocker Swivel Inlet, Spinning Metal Teeth

Call for Price: 219-462-6161

SKU: HML-VS Category:

Precision Flow and Versatile Pressure Options

The Mid-Matic™ Automatic Nozzle is designed for firefighting teams requiring mid-range flow and flexible pressure options. Delivering between 25-200 GPM (100-750 LPM), the Mid-Matic™ provides efficient water application with easy customization. Built to meet NFPA standards, it features a patented slide valve, detent flow control, and is available with various grip and coupling options for enhanced handling on the fireground.

Key Features:

  • Adjustable Pressure Choices: Available in 75, 80, and 100 PSI (5, 6, and 7 Bar) for accurate flow settings
  • Flow Range: Delivers between 25-200 GPM (100-750 LPM), ideal for mid-range applications
  • Hose Compatibility: Fits 1.5” to 2” (38-52 mm) hoses, available in NH, BSP, and BIC connections
  • Slide Valve Control: Patented slide valve offers turbulence-free operation for smooth flow adjustments
  • Fog Pattern Teeth: Choose from molded rubber or metal spinning teeth for versatile fog patterns
  • Flush Without Shutdown: Easily clear obstructions without stopping water flow
  • Grip Options: Pistol grip configurations for enhanced control
  • Color & Safety Indicators: Black finish with optional flashover nozzle for advanced firefighting techniques

All Prices in USD

Specifications

Weight 4.500 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Mid-Matic™

Nozzle Type

Automatic

Nozzle Valve Style

Slide Valve

Nozzle Teeth

Spinning Metal

Certifications

NFPA/FM

Nozzle Style

One-Piece

Target Nozzle Flow (Imp)

70-200 GPM

Target Nozzle Flow (Met)

260-750 LPM

Target Nozzle Pressure (Bar)

5 Bar

Target Nozzle Pressure (KPA)

500 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Swivel

Target Nozzle Pressure (PSI)

75 PSI

Documents

Technical Specifications and Drawings

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
