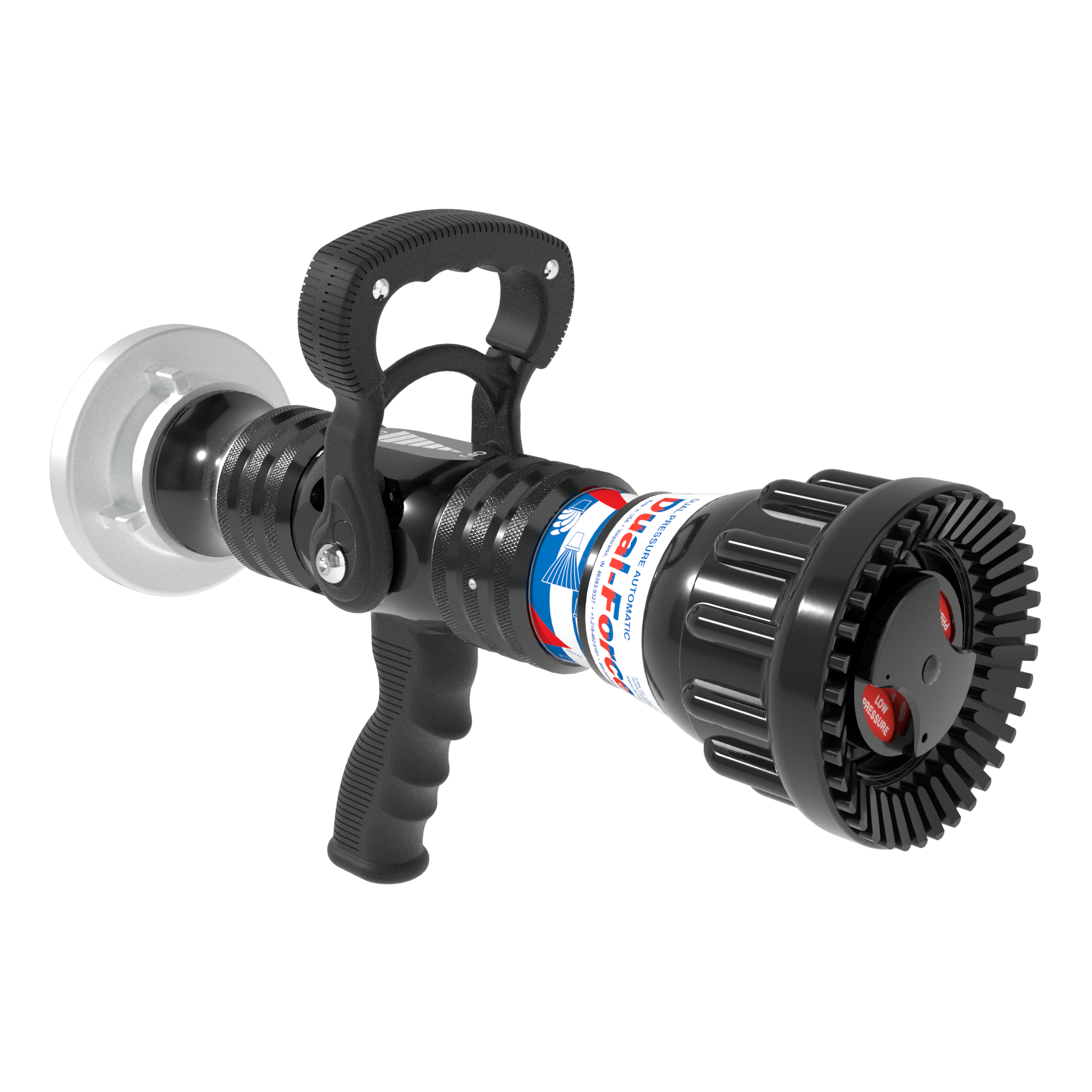

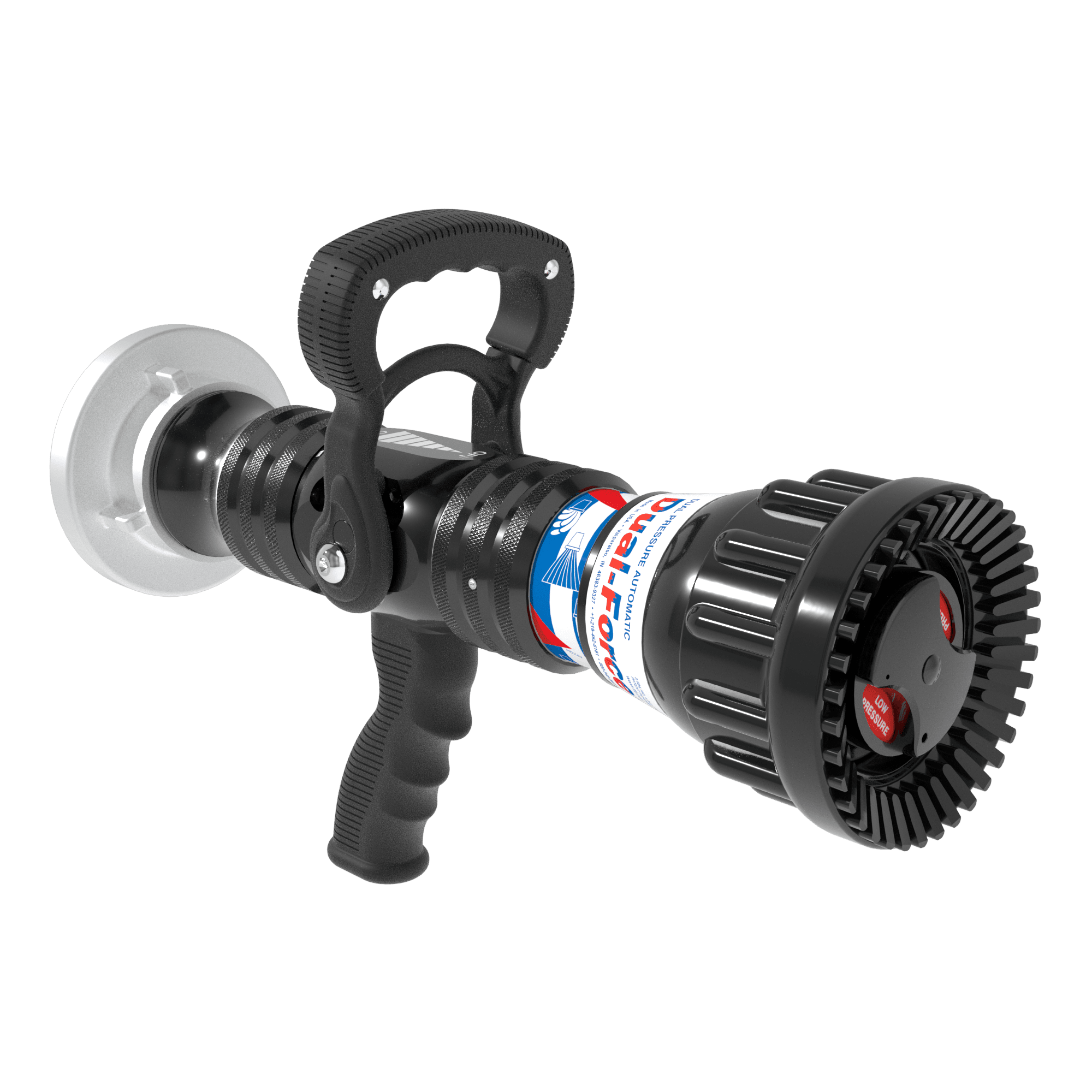

Dual-Force Automatic One-Piece Nozzle With Pistol Grip, Slide Valve – 360-1150 LPM @ 3.8/7 Bar, 75 mm Storz Swivel Inlet, Rubber Teeth

Call for Price: 219-462-6161

image_pdf
SKU: HD-2VPGI75MM Category:

Dual-Pressure Performance for Any Situation

The Dual-Force® Automatic Nozzle is engineered for adaptability on the fireground, allowing seamless switching between standard and low-pressure modes. Available in various configurations, the Dual-Force® provides a flow range from 95 to 300 GPM (360-1150 LPM) and is compatible with multiple hose sizes and couplings. Its patented slide valve, durable design, and foam compatibility make it a reliable choice for both structural and wildland firefighting. Equip your team with a nozzle that maximizes control, versatility, and durability.

Key Features:

  • Dual-Pressure Modes: Select between 45/75 PSI or 55/100 PSI, enabling customizable flow for different firefighting scenarios
  • Flow Range: Adjustable from 95 to 300 GPM (360-1150 LPM) to meet varied firefighting needs
  • Versatile Hose Compatibility: Works with 1.5″ to 2.5″ (38-65 mm) hoses, fitting NH or Storz couplings
  • Slide Valve Control: Patented stainless-steel valve for precise flow regulation and smooth operation
  • Rubber Bumper with Fog Teeth: Ensures optimized fog pattern and protects against impact damage
  • Foam Attachment Options: Compatible with low or multi-expansion foam attachments for added suppression capability
  • Flush Without Shutdown: Maintain flow and prevent clogs with easy flushing capability
  • Pistol Grip Option: Enhanced handling for targeted and steady control, available on specific models

All Prices in USD

Specifications

Weight 8.600 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Dual-Force®

Nozzle Type

Automatic

Nozzle Valve Style

Slide Valve

Nozzle Teeth

Fixed Rubber

Nozzle Style

One-Piece

Nozzle Grip

Pistol

Target Nozzle Flow (Imp)

95-300 GPM

Target Nozzle Flow (Met)

360-1150 LPM

Target Nozzle Pressure (Imp)

55 or 100 PSI

Target Nozzle Pressure (Bar)

3.8 or 7 Bar

Target Nozzle Pressure (KPA)

380 or 700 KPA

Nozzle Hose Size (Imp)

3"

Nozzle Hose Size (Met)

75 mm

Nozzle Hose Connection Type

STORZ

Nozzle Hose Coupling Style

Quick-Connect

Nozzle Hose Coupling Swivel

Swivel

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
