DETENT VALVE W/GRIP 1.5″F X 1.5″M

SKU H-VOI Categories , Tag

Print, Post, or Pass It On!

SKU H-VOI Categories , Tag
Email
Facebook
LinkedIn

SWIVEL ROCKER X RIGID MALE

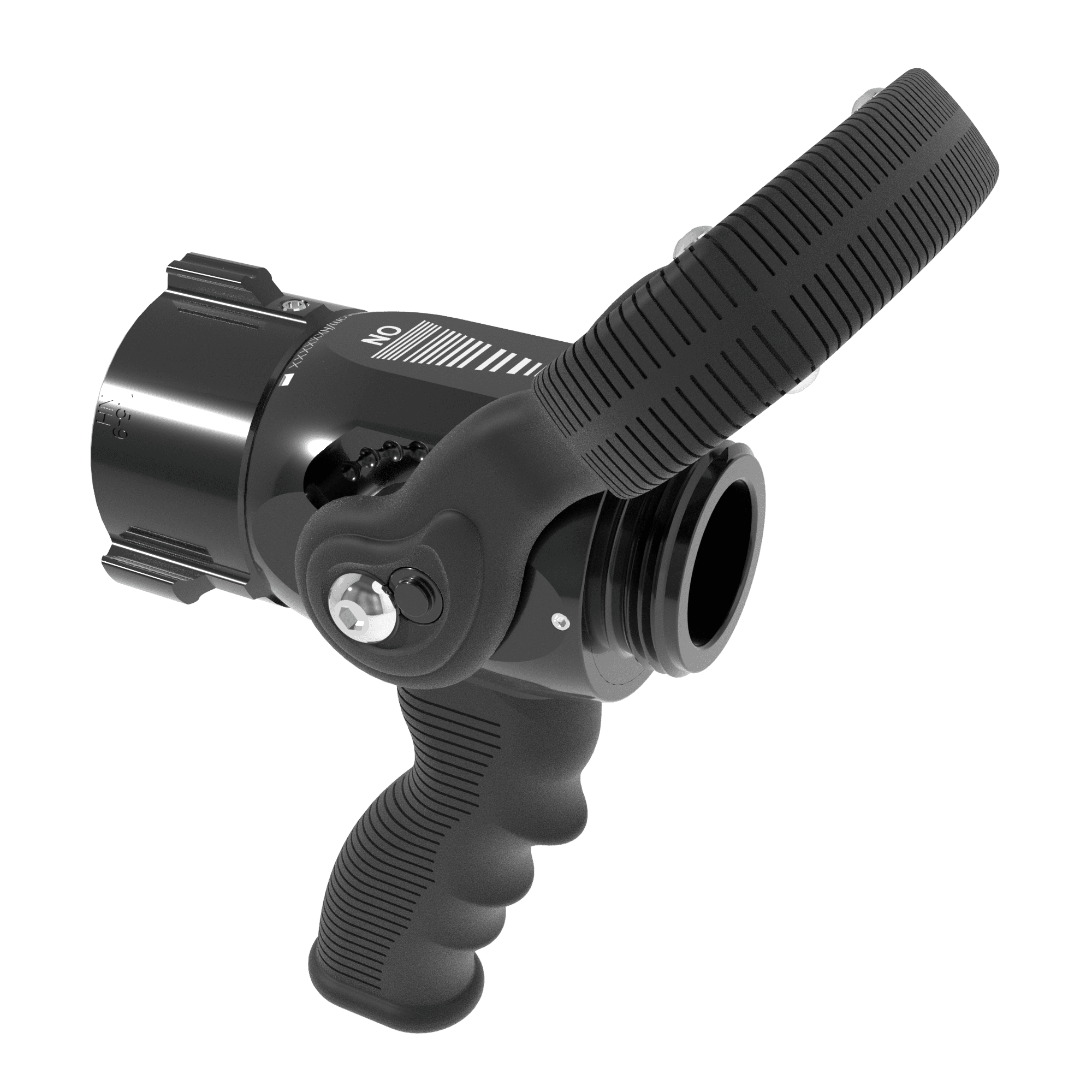

Separate ball-type shutoff valve with a 1-?” (35 mm) waterway and a built-in pistol grip mounted below the valve body for use with tip only nozzles. Six detent flow positions, optional colored pistol grip and handle covers, 1.5″ (38 mm) NH rocker lug full-time swivel coupling, and 1.5″ (38 mm) NH male outlet standard. All lightweight materials. Accepts F140SBI smooth bore insert kit found on page 13.

Specifications

Weight 3.300 lbs
Dimensions 10.00 × 10.00 × 6.00 in
Break-Apart Size

1.5" x 1.5"

Inlet Coupling Style

Valve Design

Pistol Grip

Waterway Size

Body Size

1.5" (38 mm)

Break-Apart Style

Ball Valve

Style

Inlet Coupling Swivel

Reviews

There are no reviews yet.

Be the first to review “DETENT VALVE W/GRIP 1.5″F X 1.5″M”

Your email address will not be published. Required fields are marked *

Documents

Technical Specifications and Drawings
