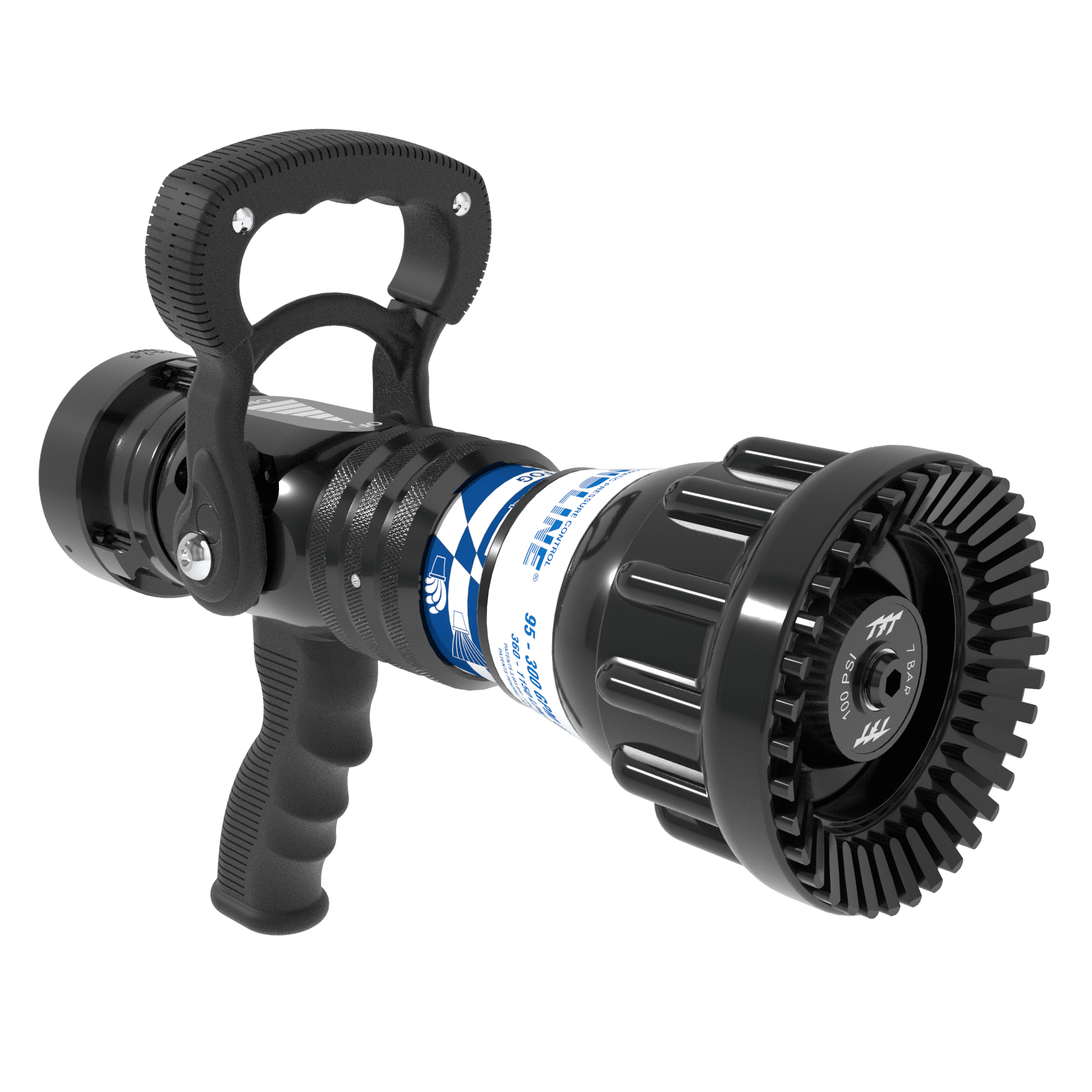

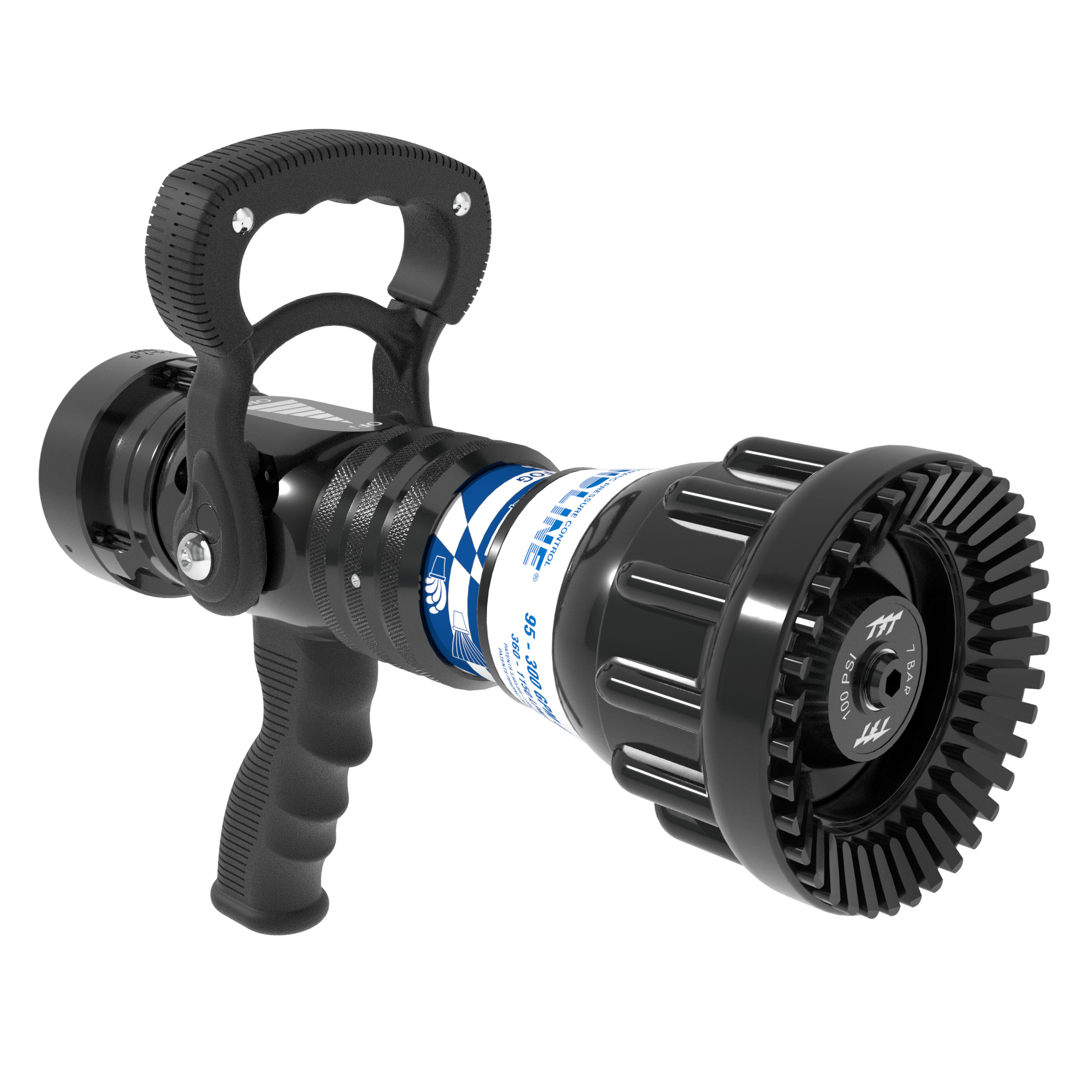

Handline Automatic One-Piece Nozzle With Pistol Grip, Slide Valve – 95-300 GPM @ 100 PSI, 2.5″ NHF Rocker Swivel Inlet, Rubber Teeth

$1,875.00

SKU: H-2VPGI Category:

Powerful, Adaptive Firefighting Solution

The Handline™ Automatic Nozzle series provides flexibility with three selectable pressure options, enabling firefighters to adapt quickly to changing conditions. With flow rates from 50 to 350 GPM (190-1350 LPM) and various connection and grip options, these nozzles enhance control, reach, and suppression capability. Each Handline™ nozzle features a patented slide valve for smooth operation and customizable handling options, making it ideal for structural and wildland firefighting.

Key Features:

  • Adjustable Pressure Settings: Available in a range of pressure settings for versatile performance
  • Wide Flow Range: 50 to 350 GPM (190-1350 LPM) depending on the model, suitable for diverse firefighting scenarios
  • Hose Compatibility: Fits 1.5” to 2.5” (38-65 mm) hoses, adaptable to NH, BIC, and BSP connections
  • Slide Valve Design: Patented turbulence-free slide valve provides precise flow control and easy handling
  • Impact-Resistant Bumper: Rubber bumper with fog teeth enhances stream pattern and provides protection
  • Flush Without Shutdown: Quickly flush debris without interrupting operation
  • Grip Options: Choose from pistol grip tip only configurations for improved control
  • Custom Coupling Styles: Available with Rocker Lugs, Knurled, and Quick-Connect couplings for secure attachment

All Prices in USD

Specifications

Weight 7.000 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Handline™

Nozzle Type

Automatic

Nozzle Valve Style

Slide Valve

Nozzle Teeth

Fixed Rubber

Nozzle Style

One-Piece

Nozzle Grip

Pistol

Target Nozzle Flow (Imp)

95-300 GPM

Target Nozzle Flow (Met)

360-1150 LPM

Target Nozzle Pressure (Imp)

100 PSI

Target Nozzle Pressure (Bar)

7 Bar

Target Nozzle Pressure (KPA)

700 KPA

Nozzle Hose Size (Imp)

2.5"

Nozzle Hose Size (Met)

65 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Swivel

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
