BALL VALVE 2.5″F X 2.5″M

SKU J140J Categories , Tag

Print, Post, or Pass It On!

SKU J140J Categories , Tag
Email
Facebook
LinkedIn

SWIVEL ROCKER X RIGID MALE

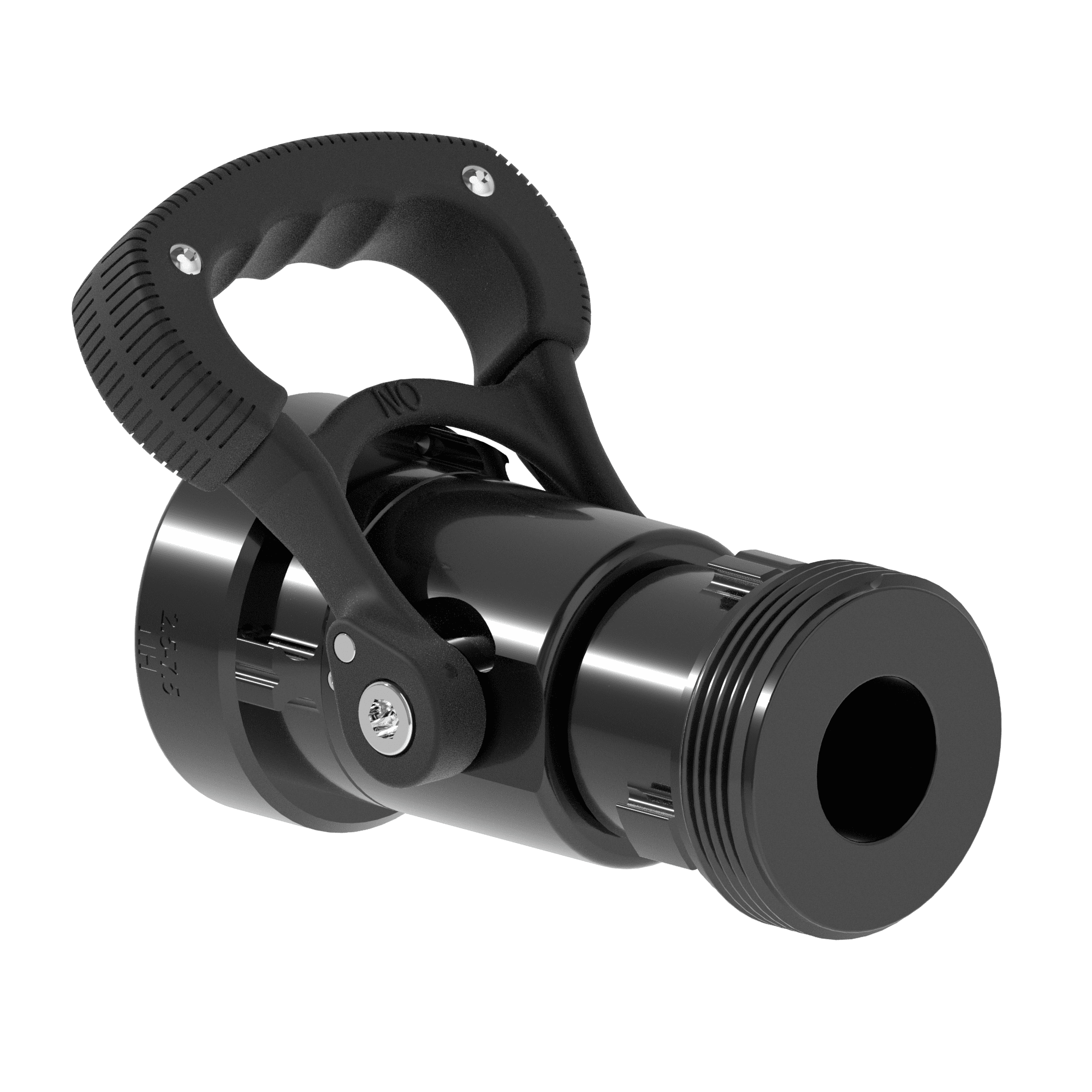

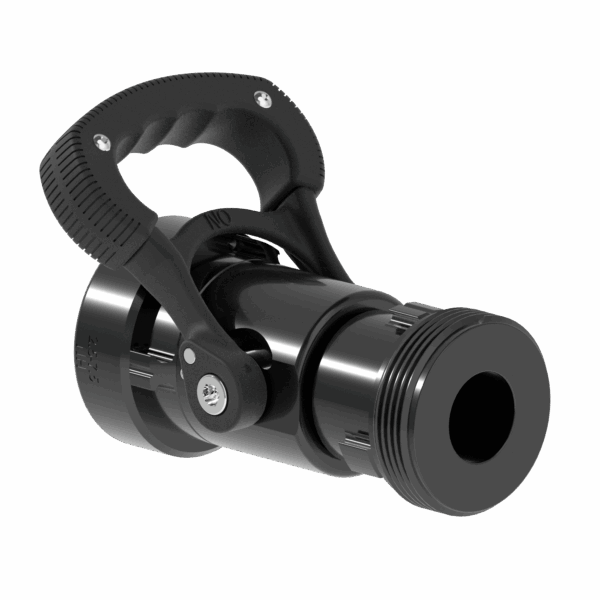

Ball Valve with an unobstructed 1-3/8″ (35 mm) waterway. All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat and stainless steel shut-off ball. Rocker lug 2.5″ NH (65 mm) full-time swivel inlet, and 2.5″ NH (65 mm) male outlet standard.

Specifications

Weight 3.400 lbs
Dimensions 10.00 × 10.00 × 6.00 in
Break-Apart Size

2.5" x 1.5"

Inlet Coupling Style

Valve Design

Waterway Size

Body Size

2.5" (65 mm)

Break-Apart Style

Ball Valve

Style

Inlet Coupling Swivel

Documents

Technical Specifications and Drawings
