What is the QuadraFog?

The QuadraFog selectable handline nozzle is built for firefighters demanding reliability and hard-hitting streams to tackle the toughest challenges. Designed for aggressive fire departments, it delivers exceptional performance with selectable flow rates between 5–260 GPM (20–1000 LPM) at pressures of 75, 80, or 100 PSI (5, 6, or 7 bar). Lightweight, durable, and highly maneuverable, the QuadraFog nozzle thrives in demanding environments, making it a trusted tool for your team. This nozzle is for firefighters who want control over their flow rate at the nozzle, allowing adaptability to different scenarios on the fireground.

What Problems Does the QuadraFog Solve?

  • Limited Control at the Nozzle: The QuadraFog nozzle allows firefighters to adjust flow rates directly at the nozzle, eliminating the need to call the pump operator. This feature enables faster response times, improved efficiency, and greater control during dynamic fireground operations.
  • Heat Management Challenges: For enhanced cooling and steam conversion, the QuadraFog nozzle offers an optional spinning metal teeth configuration, creating a finely atomized fog stream for better heat absorption and visibility.
  • High-Maintenance Issues: The waterway and fog teeth are comprised of stainless steel which reduces corrosion risks and increases the longevity of the nozzle. The quick-change valve seat allows for replacement in the field without disassembling the nozzle.

Key Features of the QuadraFog Nozzle

Quadrafog.00 00 03 14.Still003

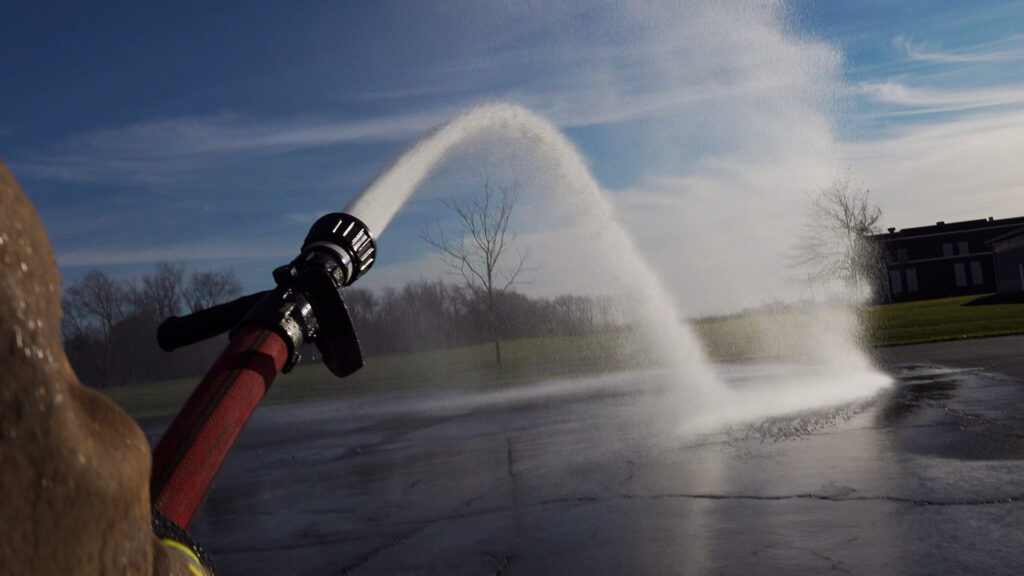

High Flow Performance

With selectable flow rates from 5–260 GPM (20–1000 LPM) and pressure options of 75, 80, or 100 PSI (5, 6, or 7 bar), the QuadraFog nozzle is built for versatility, handling everything from low-flow tactics to high-volume firefighting demands with ease.

Quadrafog.00 00 12 00.Still008 1

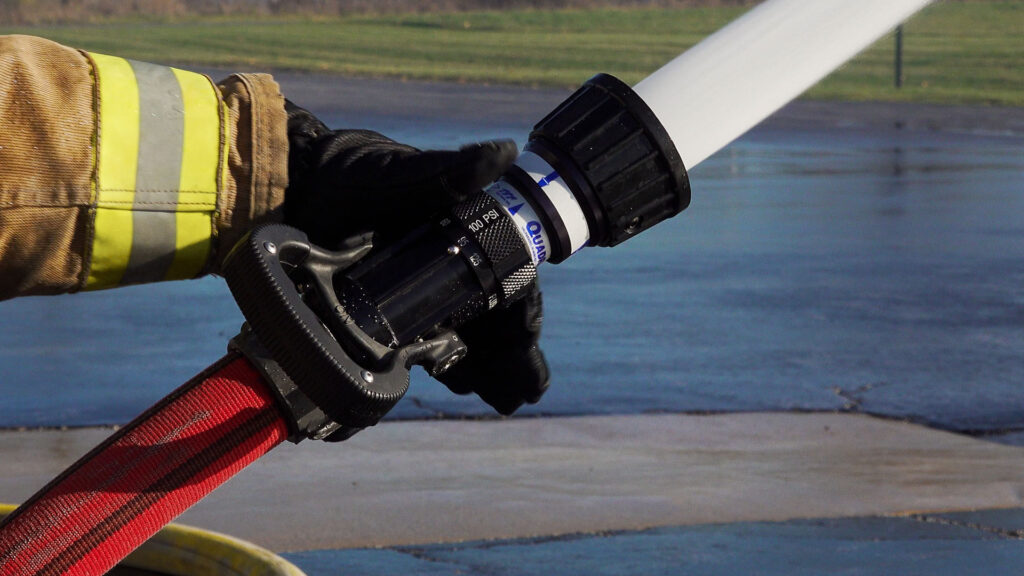

Selectable Flow Settings

The QuadraFog nozzle lets firefighters adjust water flow directly at the nozzle, enabling precise, efficient water delivery without pump operator assistance. This instant flow control enhances flexibility and responsiveness during critical firefighting operations.

Quadrafog.00 00 21 16.Still018

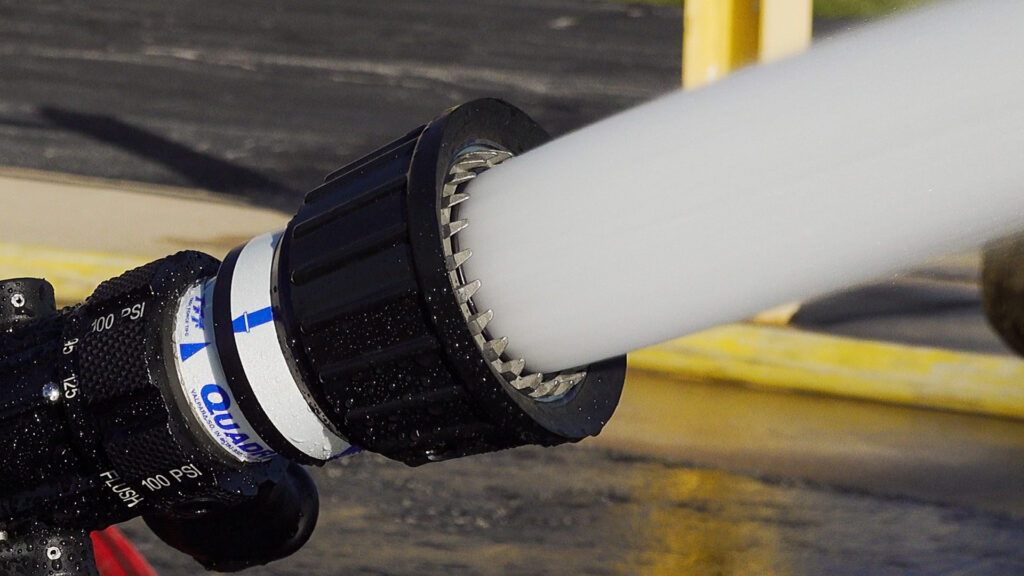

Spinning Metal Teeth

Durable stainless steel spinning teeth generate a finely atomized fog stream, maximizing heat absorption and steam conversion for superior fire suppression. This design enhances cooling efficiency, reduces heat buildup, and improves visibility, making it ideal for interior attacks and knockdown operations in intense firefighting environments.

Quadrafog.00 00 28 02.Still020

Fixed Metal Teeth

Rugged fixed metal teeth produce a consistent, fully filled fog pattern for reliable performance in demanding fireground conditions. This design is ideal for advancing hose lines, providing a protective fog shield that pushes back heat, flames, and smoke, enhancing firefighter safety during interior and exterior attacks.

Quadrafog.00 00 19 00.Still016

Control Your Pattern

The QuadraFog nozzle allows for quick transition between wide fog for exposure protection, narrow fog to cut through intense heat, and straight stream for when you need hard-hitting reach. Stream variation is a key feature for hydraulic ventilation, directing smoke and heat out of openings, such as windows.

Quadrafog.00 00 32 18.Still025

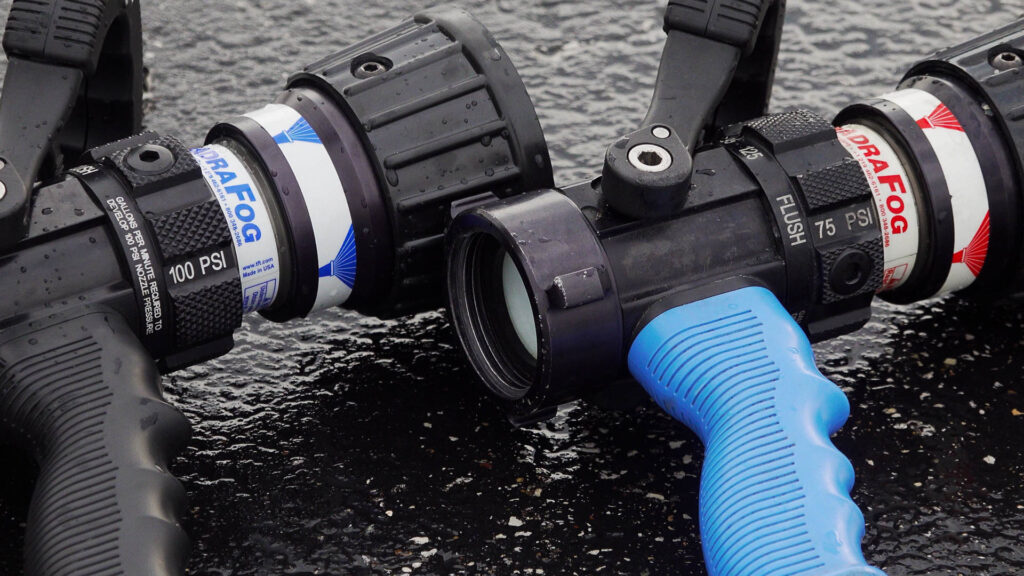

Wide Range of Inlet Options

The QuadraFog nozzle offers inlet sizes from 1″ (25mm) to 3″ (75mm), providing versatile compatibility with different hose setups. Choose between rigid or swivel rocker configurations for maximum operational flexibility, ensuring a secure and adaptable connection for any firefighting scenario.

QuadraFog Nozzle Comparison Chart

Explore the QuadraFog options side by side with this detailed comparison chart, designed to help firefighters quickly identify the best option for their specific operational needs. Compare flow ranges, inlet sizes, valve types, and teeth options to make an informed decision and ensure optimal performance on the fireground.

Feature75 PSI (5 bar)80 PSI (6 bar)100 PSI (7 bar)
Flow OptionsAvailable in 2 Selectable Flow RangesAvailable in 6 Selectable Flow RangesAvailable in 3 Selectable Flow Ranges
Inlet Size Options1″ (25mm), 1.5″ (38mm)1″ (25mm), 1.5″ (38mm), 2″ (52mm), 2.5″ (65mm), 3″ (75mm)1″ (25mm), 1.5″ (38mm), 2″ (52mm), 2.5″ (65mm)
Valve OptionsBall Valve, Integrated Valve, Tip OnlyBall ValveBall Valve, Integrated Valve
Teeth OptionsFixed Metal, Spinning MetalFixed Metal, Spinning MetalFixed Metal, Spinning Metal
