Flex Dual Crank 2000 Gpm (7600 Lpm) Monitor, Standard - 4&Quot; (100 Mm) Ansi 150/Dn100 Pn16 Rigid Flange Inlet, 3.5&Quot; (90 Mm) Nhm Rigid Outlet, Red

Flex Dual Crank 2000 GPM (7600 LPM) Monitor, Standard – 4″ (100 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 3.5″ (90 mm) NHM Rigid Outlet, Red

Name: Flex Dual Crank 2000 GPM (7600 LPM) Monitor, Standard - 4" (100 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 3.5" (90 mm) NHM Rigid Outlet, Red - Task Force Tips
Brand: Flex™
SKU: YN-M21A-Z
Availability: InStock

Call for Price: 219-462-6161

SKU: YN-M21A-Z Category: Fixed Monitors

The Best Monitor Money Can Buy

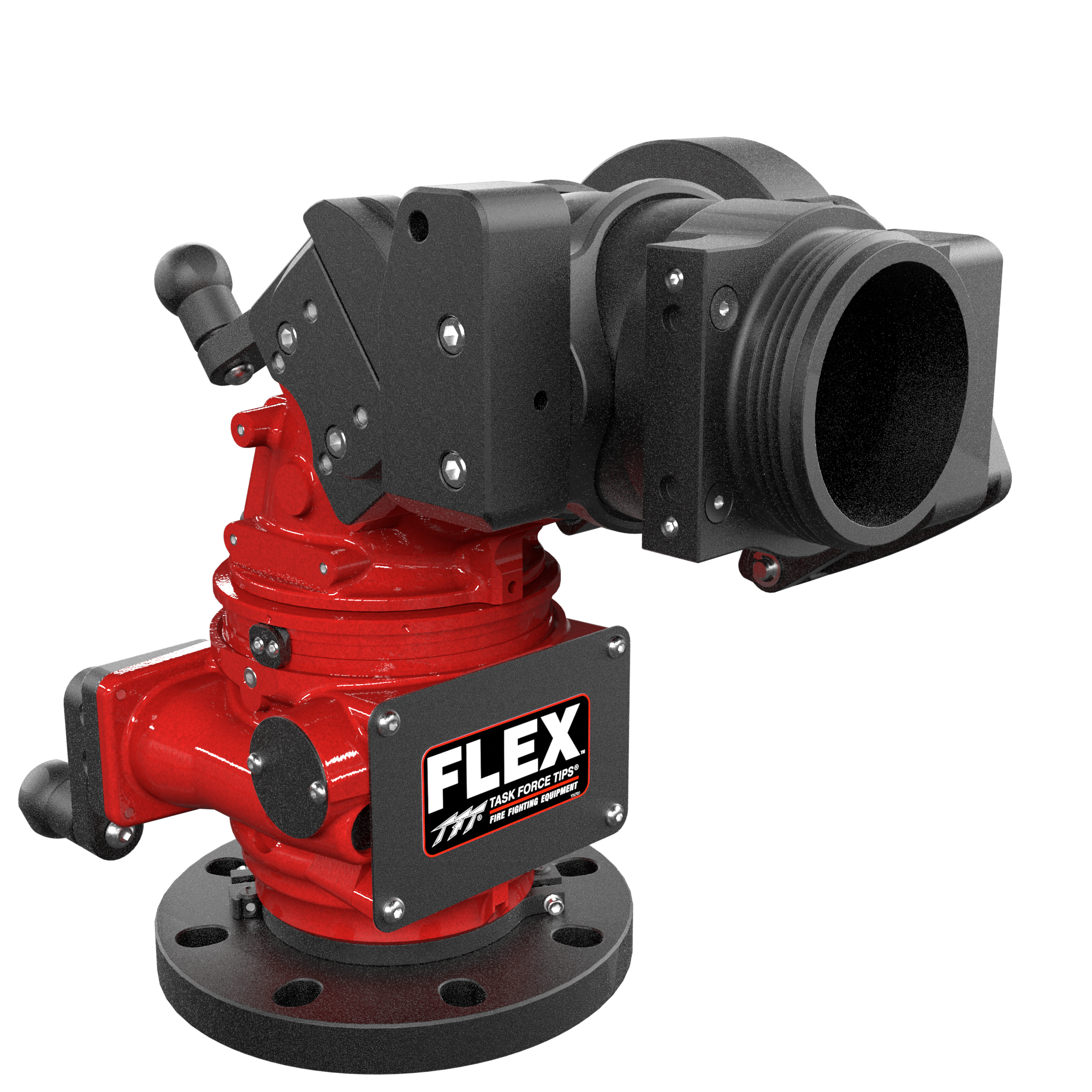

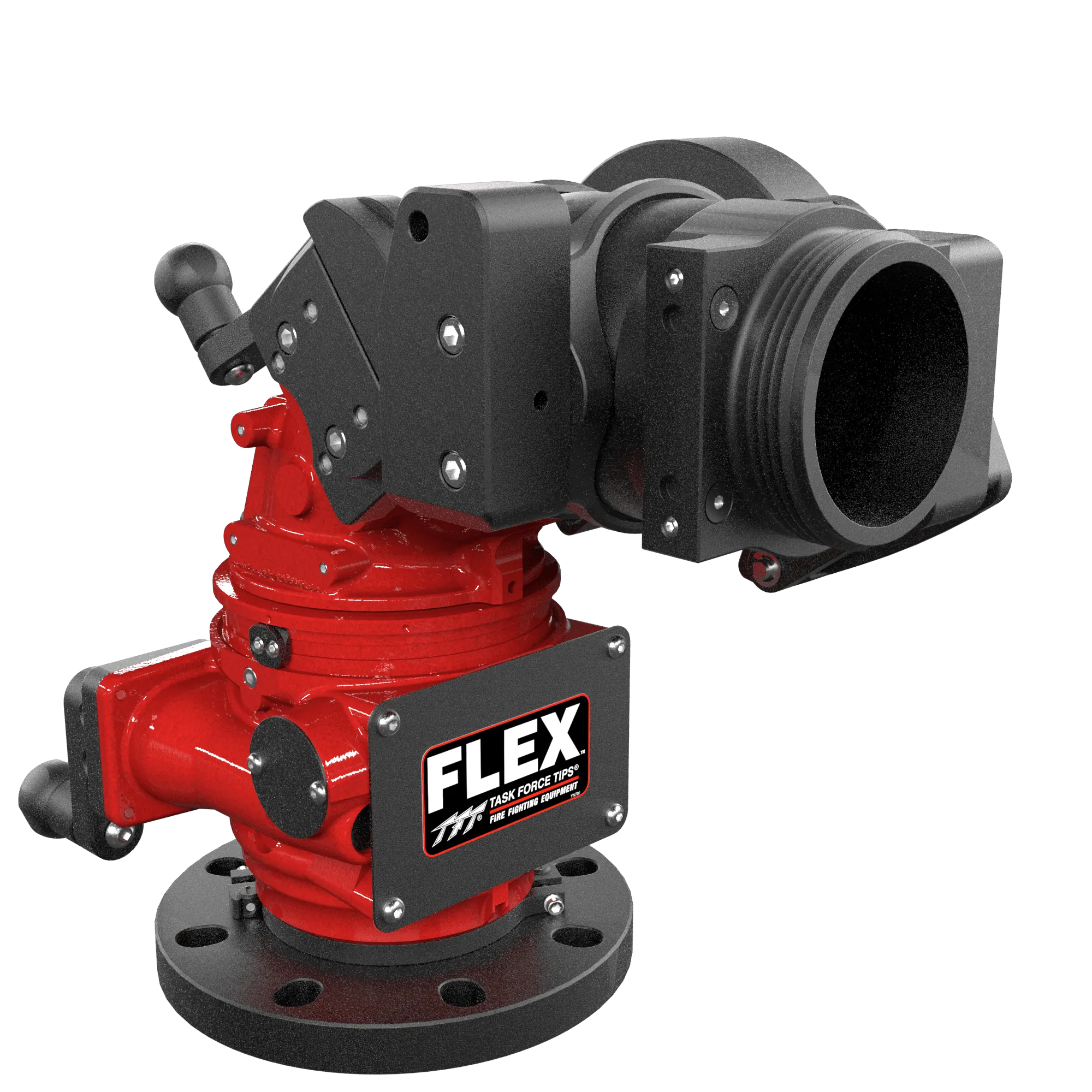

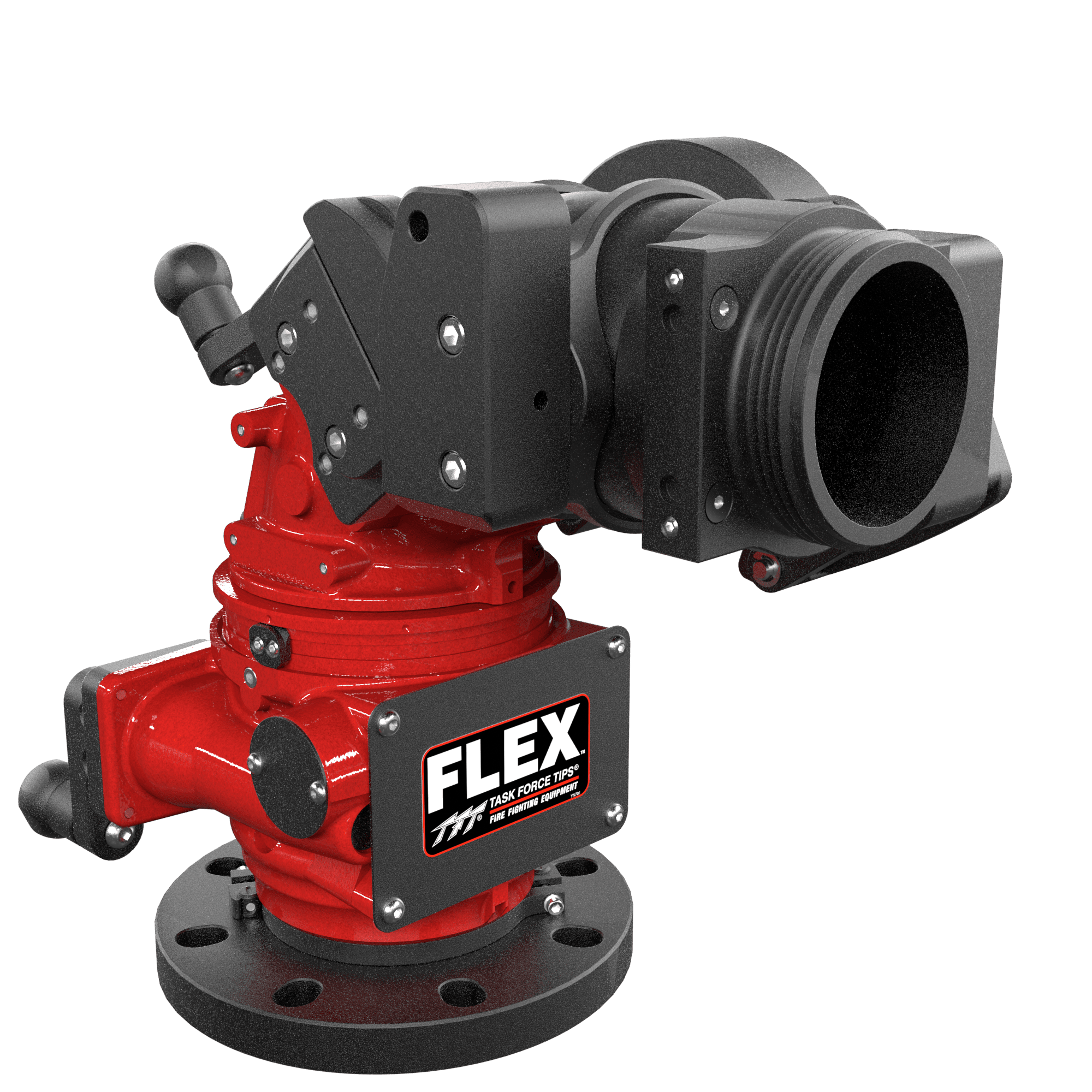

Flex™ is a compact master stream monitor offering high-capacity water delivery and unparalleled versatility. With flow options up to 2000 GPM (7600 LPM), customizable features, and durable construction, Flex is designed to adapt to any firefighting scenario while maximizing efficiency and precision.

Key Features:

Powerful Flow Options: Choose from 1250 GPM (4750 LPM), 1500 GPM (5700 LPM), or 2000 GPM (7600 LPM) to match your fireground needs, from high-flow blitz attacks to sustained operations
Compact Design: With a 16″ (40 cm) stow height and 6″ (15 cm) swing radius, Flex fits easily in tight spaces such as dunnage areas, aerial ladders, and apparatus platforms
Reduced Friction Loss: Patented articulating waterway minimizes bends, resulting in low friction loss: 3 PSI at 1250 GPM, 4 PSI at 1500 GPM, and 8 PSI at 2000 GPM – this ensures maximum flow rate and stream distance at any pump pressure
Wide Stream Range: Offers 165° vertical travel (120° above horizontal and 45° below) and 225° horizontal travel, totaling 450°, for comprehensive water coverage
Configurable Outlet Options: Choose between 2.5″ (65 mm) or 3.5″ (90 mm) outlets to tailor the monitor to your apparatus and operational requirements
Field Adjustable Stops: Vertical and horizontal hard stops are easily adjustable to prevent over-rotation, ensuring safe operation in confined spaces or near obstructions
Versatile Control Options: Available in manual, tiller bar, and remote-control (RC) models, with programmable buttons and SmartPlex™ app integration for seamless operation and diagnostics
Durable & Reliable: Built with rugged materials and tested to withstand dirt, ice, and fireground hazards – controller features enhanced protection against water and impact for long-term durability
Nozzle Compatibility: Compatible with Smooth Bore and Vortex® nozzles for a variety of fireground applications

All Prices in USD

Specifications
Documents

Specifications

Weight	39.800 lbs
Oscillation	N
Remote Control	N
Color	Red
Brand	Flex™
Bundle	Monitor Only
Monitor Type	Standard Mounting
Monitor Supply Size (Imp)	4"
Monitor Supply Size (Met)	100 mm
Monitor Supply Type	ANSI 150/DN100 PN16
Monitor Supply Style	Flange
Monitor Supply Swivel	Rigid
Monitor Horizontal Control	Crank
Monitor Horizontal Range	360°
Monitor Vertical Control	Crank
Monitor Vertical Range	-45° – 90°
Monitor Control	Dual Cranks
Monitor Supply Inlets	Single
Monitor Outlet Size (Imp)	3.5"
Monitor Outlet Size (Met)	90 mm
Monitor Outlet Type	NH Male
Monitor Outlet Style	Male Threads
Monitor Outlet Swivel	Rigid
Max Flow Rate (GPM)	2000 GPM
Max Flow Rate (LPM)	7600 LPM

Documents

Instructions For Installation, Safe Operation and Maintenance

Flex Monitor Manual
