Ef1 Rc Monitor, 200 Gpm (750 Lpm) - 1.5&Quot; (38 Mm) Ansi 150/Dn100 Pn16 Rigid Flange Inlet, 1.5&Quot; (38 Mm) Bspm Rigid Outlet, 12/24 Vdc Acc. Power, Rs485, Silver

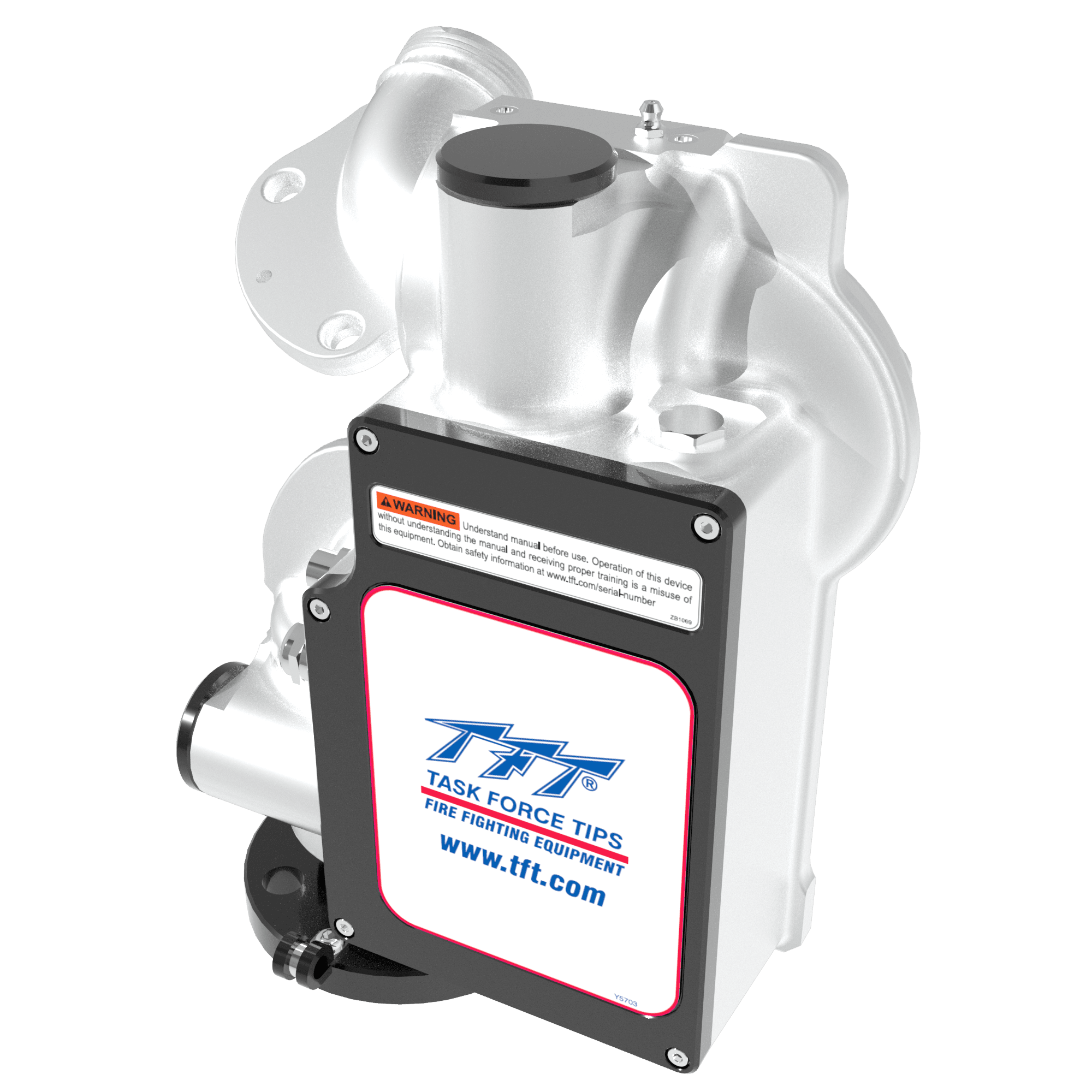

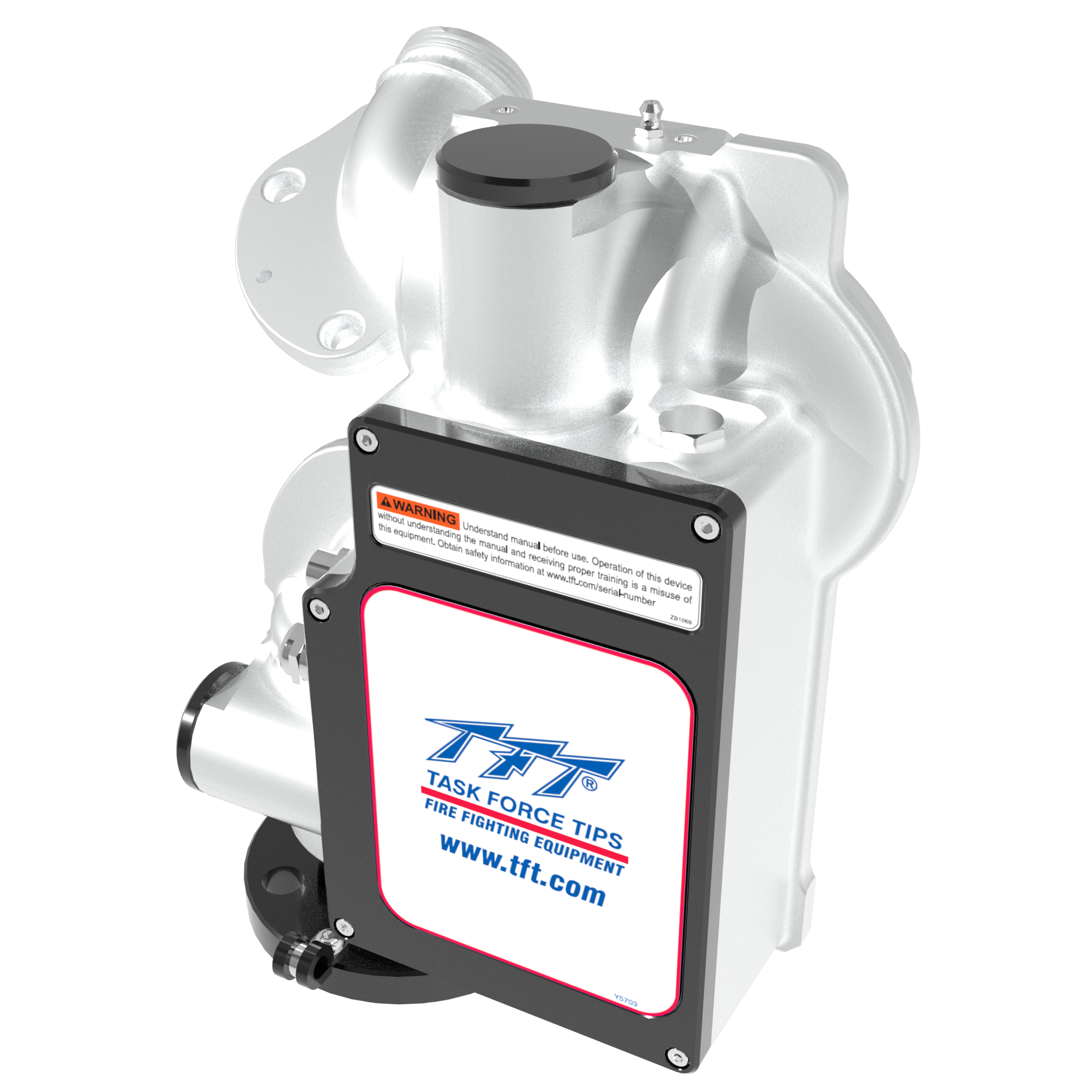

EF1 RC Monitor, 200 GPM (750 LPM) – 1.5″ (38 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 1.5″ (38 mm) BSPM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver

Name: EF1 RC Monitor, 200 GPM (750 LPM) - 1.5" (38 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 1.5" (38 mm) BSPM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver - Task Force Tips
Brand: EF1™
SKU: Y1-E31A
Price: 6102.00 USD
Availability: InStock

$6,102.00

SKU: Y1-E31A Category: Fixed Monitors

Compact Monitor for Wildland Firefighting

The EF1™ Remote-Controlled Monitor is designed to deliver powerful performance in a compact and rugged package. Capable of flowing up to 200 GPM (757 LPM), the EF1 is the ideal solution for wildland and interface apparatus. At just 12.6″ tall and built with hard coat anodized aluminum, this monitor is perfect for forestry bumper turrets and other off-road firefighting applications. Equipped with programmable park and oscillation modes, sealed electric drives, and waterproof controls, the EF1 is built to handle harsh conditions while delivering precise and efficient water flow.

Key Features:

High-Performance Flow: Supports up to 200 GPM (757 LPM), making it suitable for wildland and interface firefighting
Compact Design: Measures only 12.6” tall and 6.1” deep, ideal for forestry and off-road applications
Durable Construction: Built with hard coat anodized aluminum and powder-coated for extreme durability in harsh conditions
Wide Travel Range:
- Horizontal Travel: 135° left and right of center for a total of 270°
- Vertical Travel: 45° below center and 90° above center for a total of 135°
Programmable Features: Includes park and oscillation modes for operational flexibility and efficiency
Easy Installation: Simplified wiring with a single factory-installed plug and compatibility with various inlets and outlets, including quick-connect couplings
Waterproof Components: Electric drives and control box are sealed to protect against water and dust
Adjustable Travel Stops: Horizontal stops can be adjusted for a 180° range, providing more control over the monitor’s movement

All Prices in USD

Specifications
Documents

Specifications

Weight	17.300 lbs
Oscillation	N
Remote Control	N
Color	Silver
Brand	EF1™
Bundle	Monitor Only
Monitor Type	Standard Mounting
Monitor Electronic Protocol	RS485
Monitor Accessory Power	12/24 VDC
Monitor Supply Size (Imp)	1.5"
Monitor Supply Size (Met)	38 mm
Monitor Supply Type	ANSI 150/DN100 PN16
Monitor Supply Style	Flange
Monitor Supply Swivel	Rigid
Monitor Horizontal Control	Electronic
Monitor Horizontal Range	270°
Monitor Vertical Control	Electronic
Monitor Vertical Range	-45° – 90°
Monitor Control	Remote Control
Monitor Supply Inlets	Single
Monitor Outlet Size (Imp)	1.5"
Monitor Outlet Size (Met)	38 mm
Monitor Outlet Type	BSP Male
Monitor Outlet Style	Male Threads
Monitor Outlet Swivel	Rigid
Max Flow Rate (GPM)	200 GPM
Max Flow Rate (LPM)	750 LPM

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance

Stay Ahead of the Heat!

Delivering The Latest Gear, Tactics, & Videos

img:is([sizes="auto" i],[sizes^="auto," i]){contain-intrinsic-size:3000px 1500px;}.fancybox__container.iframe .fancybox__content,.fancybox__container.inline .fancybox__content{padding:0px;border:0px solid rgba(0,0,0,0);}img.wp-smiley,img.emoji{display:inline !important;border:none !important;box-shadow:none !important;height:1em !important;width:1em !important;margin:0 .07em !important;vertical-align:-.1em !important;background:none !important;padding:0 !important;}.wp-block-audio :where(figcaption){color:#555;font-size:13px;text-align:center;}.is-dark-theme .wp-block-audio :where(figcaption){color:rgba(255,255,255,.65);}.wp-block-audio{margin:0 0 1em;}.wp-block-code{border:1px solid #ccc;border-radius:4px;font-family:Menlo,Consolas,monaco,monospace;padding:.8em 1em;}.wp-block-embed :where(figcaption){color:#555;font-size:13px;text-align:center;}.is-dark-theme .wp-block-embed :where(figcaption){color:rgba(255,255,255,.65);}.wp-block-embed{margin:0 0 1em;}.blocks-gallery-caption{color:#555;font-size:13px;text-align:center;}.is-dark-theme .blocks-gallery-caption{color:rgba(255,255,255,.65);}:root :where(.wp-block-image figcaption){color:#555;font-size:13px;text-align:center;}.is-dark-theme :root :where(.wp-block-image figcaption){color:rgba(255,255,255,.65);}.wp-block-image{margin:0 0 1em;}.wp-block-pullquote{border-bottom:4px solid;border-top:4px solid;color:currentColor;margin-bottom:1.75em;}.wp-block-pullquote cite,.wp-block-pullquote footer,.wp-block-pullquote__citation{color:currentColor;font-size:.8125em;font-style:normal;text-transform:uppercase;}.wp-block-quote{border-left:.25em solid;margin:0 0 1.75em;padding-left:1em;}.wp-block-quote cite,.wp-block-quote footer{color:currentColor;font-size:.8125em;font-style:normal;position:relative;}.wp-block-quote:where(.has-text-align-right){border-left:none;border-right:.25em solid;padding-left:0;padding-right:1em;}.wp-block-quote:where(.has-text-align-center){border:none;padding-left:0;}.wp-block-quote.is-large,.wp-block-quote.is-style-large,.wp-block-quote:where(.is-style-plain){border:none;}.wp-block-search .wp-block-search__label{font-weight:700;}.wp-block-search__button{border:1px solid #ccc;padding:.375em .625em;}:where(.wp-block-group.has-background){padding:1.25em 2.375em;}.wp-block-separator.has-css-opacity{opacity:.4;}.wp-block-separator{border:none;border-bottom:2px solid;margin-left:auto;margin-right:auto;}.wp-block-separator.has-alpha-channel-opacity{opacity:1;}.wp-block-separator:not(.is-style-wide):not(.is-style-dots){width:100px;}.wp-block-separator.has-background:not(.is-style-dots){border-bottom:none;height:1px;}.wp-block-separator.has-background:not(.is-style-wide):not(.is-style-dots){height:2px;}.wp-block-table{margin:0 0 1em;}.wp-block-table td,.wp-block-table th{word-break:normal;}.wp-block-table :where(figcaption){color:#555;font-size:13px;text-align:center;}.is-dark-theme .wp-block-table :where(figcaption){color:rgba(255,255,255,.65);}.wp-block-video :where(figcaption){color:#555;font-size:13px;text-align:center;}.is-dark-theme .wp-block-video :where(figcaption){color:rgba(255,255,255,.65);}.wp-block-video{margin:0 0 1em;}:root :where(.wp-block-template-part.has-background){margin-bottom:0;margin-top:0;padding:1.25em 2.375em;}.cart-pdf-button{display:inline-flex;justify-content:center;text-align:center;}.wp-block-rank-math-toc-block nav ol{counter-reset:item;}.wp-block-rank-math-toc-block nav ol li{display:block;}.wp-block-rank-math-toc-block nav ol li:before{content:counters(item,".") ". ";counter-increment:item;}@-webkit-keyframes spin{0%{-webkit-transform:rotate(0deg);}100%{-webkit-transform:rotate(-360deg);}}@keyframes spin{0%{-webkit-transform:rotate(0deg);}100%{-webkit-transform:rotate(-360deg);}}@keyframes bounce{from{-webkit-transform:translateY(0px);transform:translateY(0px);}to{-webkit-transform:translateY(-5px);transform:translateY(-5px);}}@-webkit-keyframes bounce{from{-webkit-transform:translateY(0px);transform:translateY(0px);}to{-webkit-transform:translateY(-5px);transform:translateY(-5px);}}@-webkit-keyframes loading{0%{background-size:20% 50%,20% 50%,20% 50%;}20%{background-size:20% 20%,20% 50%,20% 50%;}40%{background-size:20% 100%,20% 20%,20% 50%;}60%{background-size:20% 50%,20% 100%,20% 20%;}80%{background-size:20% 50%,20% 50%,20% 100%;}100%{background-size:20% 50%,20% 50%,20% 50%;}}@keyframes loading{0%{background-size:20% 50%,20% 50%,20% 50%;}20%{background-size:20% 20%,20% 50%,20% 50%;}40%{background-size:20% 100%,20% 20%,20% 50%;}60%{background-size:20% 50%,20% 100%,20% 20%;}80%{background-size:20% 50%,20% 50%,20% 100%;}100%{background-size:20% 50%,20% 50%,20% 50%;}}:root{--rankmath-wp-adminbar-height:0;}#rank-math-rich-snippet-wrapper{overflow:hidden;}#rank-math-rich-snippet-wrapper h5.rank-math-title{display:block;font-size:18px;line-height:1.4;}#rank-math-rich-snippet-wrapper .rank-math-review-image{float:right;max-width:40%;margin-left:15px;}#rank-math-rich-snippet-wrapper .rank-math-review-data{margin-bottom:15px;}#rank-math-rich-snippet-wrapper .rank-math-total-wrapper{width:100%;padding:0 0 20px 0;float:left;clear:both;position:relative;-webkit-box-sizing:border-box;box-sizing:border-box;}#rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-total{border:0;display:block;margin:0;width:auto;float:left;text-align:left;padding:0;font-size:24px;line-height:1;font-weight:700;-webkit-box-sizing:border-box;box-sizing:border-box;overflow:hidden;}#rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-review-star{float:left;margin-left:15px;margin-top:5px;position:relative;z-index:99;line-height:1;}#rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-review-star .rank-math-review-result-wrapper{display:inline-block;white-space:nowrap;position:relative;color:#e7e7e7;}#rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-review-star .rank-math-review-result-wrapper .rank-math-review-result{position:absolute;top:0;left:0;overflow:hidden;white-space:nowrap;color:#ffbe01;}#rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-review-star .rank-math-review-result-wrapper i{font-size:18px;-webkit-text-stroke-width:1px;font-style:normal;padding:0 2px;line-height:inherit;}#rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-review-star .rank-math-review-result-wrapper i:before{content:"★";}body.rtl #rank-math-rich-snippet-wrapper .rank-math-review-image{float:left;margin-left:0;margin-right:15px;}body.rtl #rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-total{float:right;}body.rtl #rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-review-star{float:right;margin-left:0;margin-right:15px;}body.rtl #rank-math-rich-snippet-wrapper .rank-math-total-wrapper .rank-math-review-star .rank-math-review-result{left:auto;right:0;}@media screen and (max-width: 480px){#rank-math-rich-snippet-wrapper .rank-math-review-image{display:block;max-width:100%;width:100%;text-align:center;margin-right:0;}#rank-math-rich-snippet-wrapper .rank-math-review-data{clear:both;}}.clear{clear:both;}:root{--wp--preset--aspect-ratio--square:1;--wp--preset--aspect-ratio--4-3:4/3;--wp--preset--aspect-ratio--3-4:3/4;--wp--preset--aspect-ratio--3-2:3/2;--wp--preset--aspect-ratio--2-3:2/3;--wp--preset--aspect-ratio--16-9:16/9;--wp--preset--aspect-ratio--9-16:9/16;--wp--preset--color--black:#000;--wp--preset--color--cyan-bluish-gray:#abb8c3;--wp--preset--color--white:#fff;--wp--preset--color--pale-pink:#f78da7;--wp--preset--color--vivid-red:#cf2e2e;--wp--preset--color--luminous-vivid-orange:#ff6900;--wp--preset--color--luminous-vivid-amber:#fcb900;--wp--preset--color--light-green-cyan:#7bdcb5;--wp--preset--color--vivid-green-cyan:#00d084;--wp--preset--color--pale-cyan-blue:#8ed1fc;--wp--preset--color--vivid-cyan-blue:#0693e3;--wp--preset--color--vivid-purple:#9b51e0;--wp--preset--color--tft-blue:#0176bc;--wp--preset--color--tft-red:#ef4035;--wp--preset--color--tft-dark-gray:#2e2e2e;--wp--preset--color--tft-gray:#414042;--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple:linear-gradient(135deg,rgba(6,147,227,1) 0%,#9b51e0 100%);--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan:linear-gradient(135deg,#7adcb4 0%,#00d082 100%);--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange:linear-gradient(135deg,rgba(252,185,0,1) 0%,rgba(255,105,0,1) 100%);--wp--preset--gradient--luminous-vivid-orange-to-vivid-red:linear-gradient(135deg,rgba(255,105,0,1) 0%,#cf2e2e 100%);--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray:linear-gradient(135deg,#eee 0%,#a9b8c3 100%);--wp--preset--gradient--cool-to-warm-spectrum:linear-gradient(135deg,#4aeadc 0%,#9778d1 20%,#cf2aba 40%,#ee2c82 60%,#fb6962 80%,#fef84c 100%);--wp--preset--gradient--blush-light-purple:linear-gradient(135deg,#ffceec 0%,#9896f0 100%);--wp--preset--gradient--blush-bordeaux:linear-gradient(135deg,#fecda5 0%,#fe2d2d 50%,#6b003e 100%);--wp--preset--gradient--luminous-dusk:linear-gradient(135deg,#ffcb70 0%,#c751c0 50%,#4158d0 100%);--wp--preset--gradient--pale-ocean:linear-gradient(135deg,#fff5cb 0%,#b6e3d4 50%,#33a7b5 100%);--wp--preset--gradient--electric-grass:linear-gradient(135deg,#caf880 0%,#71ce7e 100%);--wp--preset--gradient--midnight:linear-gradient(135deg,#020381 0%,#2874fc 100%);--wp--preset--font-size--small:13px;--wp--preset--font-size--medium:20px;--wp--preset--font-size--large:36px;--wp--preset--font-size--x-large:42px;--wp--preset--font-size--normal:18px;--wp--preset--font-size--big:24px;--wp--preset--font-family--swmc-cabin:Cabin;--wp--preset--font-family--swmc-bitter:Bitter;--wp--preset--font-family--inter:"Inter",sans-serif;--wp--preset--font-family--cardo:Cardo;--wp--preset--spacing--20:.44rem;--wp--preset--spacing--30:.67rem;--wp--preset--spacing--40:1rem;--wp--preset--spacing--50:1.5rem;--wp--preset--spacing--60:2.25rem;--wp--preset--spacing--70:3.38rem;--wp--preset--spacing--80:5.06rem;--wp--preset--shadow--natural:6px 6px 9px rgba(0,0,0,.2);--wp--preset--shadow--deep:12px 12px 50px rgba(0,0,0,.4);--wp--preset--shadow--sharp:6px 6px 0px rgba(0,0,0,.2);--wp--preset--shadow--outlined:6px 6px 0px -3px rgba(255,255,255,1),6px 6px rgba(0,0,0,1);--wp--preset--shadow--crisp:6px 6px 0px rgba(0,0,0,1);}:root{--wp--style--global--content-size:800px;--wp--style--global--wide-size:1440px;}:where(body){margin:0;}.wp-site-blocks > .alignleft{float:left;margin-right:2em;}.wp-site-blocks > .alignright{float:right;margin-left:2em;}.wp-site-blocks > .aligncenter{justify-content:center;margin-left:auto;margin-right:auto;}:where(.is-layout-flex){gap:.5em;}:where(.is-layout-grid){gap:.5em;}.is-layout-flow > .alignleft{float:left;margin-inline-start:0;margin-inline-end:2em;}.is-layout-flow > .alignright{float:right;margin-inline-start:2em;margin-inline-end:0;}.is-layout-flow > .aligncenter{margin-left:auto !important;margin-right:auto !important;}.is-layout-constrained > .alignleft{float:left;margin-inline-start:0;margin-inline-end:2em;}.is-layout-constrained > .alignright{float:right;margin-inline-start:2em;margin-inline-end:0;}.is-layout-constrained > .aligncenter{margin-left:auto !important;margin-right:auto !important;}.is-layout-constrained > :where(:not(.alignleft):not(.alignright):not(.alignfull)){max-width:var(--wp--style--global--content-size);margin-left:auto !important;margin-right:auto !important;}.is-layout-constrained > .alignwide{max-width:var(--wp--style--global--wide-size);}body .is-layout-flex{display:flex;}.is-layout-flex{flex-wrap:wrap;align-items:center;}.is-layout-flex > :is(*,div){margin:0;}body .is-layout-grid{display:grid;}.is-layout-grid > :is(*,div){margin:0;}body{padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px;}a:where(:not(.wp-element-button)){text-decoration:underline;}:root :where(.wp-element-button,.wp-block-button__link){background-color:#32373c;border-width:0;color:#fff;font-family:inherit;font-size:inherit;line-height:inherit;padding:calc(.667em + 2px) calc(1.333em + 2px);text-decoration:none;}.has-black-color{color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-color{color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-color{color:var(--wp--preset--color--white) !important;}.has-pale-pink-color{color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-color{color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-color{color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-color{color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-color{color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-color{color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-color{color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-color{color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-color{color:var(--wp--preset--color--vivid-purple) !important;}.has-tft-blue-color{color:var(--wp--preset--color--tft-blue) !important;}.has-tft-red-color{color:var(--wp--preset--color--tft-red) !important;}.has-tft-dark-gray-color{color:var(--wp--preset--color--tft-dark-gray) !important;}.has-tft-gray-color{color:var(--wp--preset--color--tft-gray) !important;}.has-black-background-color{background-color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-background-color{background-color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-background-color{background-color:var(--wp--preset--color--white) !important;}.has-pale-pink-background-color{background-color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-background-color{background-color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-background-color{background-color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-background-color{background-color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-background-color{background-color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-background-color{background-color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-background-color{background-color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-background-color{background-color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-background-color{background-color:var(--wp--preset--color--vivid-purple) !important;}.has-tft-blue-background-color{background-color:var(--wp--preset--color--tft-blue) !important;}.has-tft-red-background-color{background-color:var(--wp--preset--color--tft-red) !important;}.has-tft-dark-gray-background-color{background-color:var(--wp--preset--color--tft-dark-gray) !important;}.has-tft-gray-background-color{background-color:var(--wp--preset--color--tft-gray) !important;}.has-black-border-color{border-color:var(--wp--preset--color--black) !important;}.has-cyan-bluish-gray-border-color{border-color:var(--wp--preset--color--cyan-bluish-gray) !important;}.has-white-border-color{border-color:var(--wp--preset--color--white) !important;}.has-pale-pink-border-color{border-color:var(--wp--preset--color--pale-pink) !important;}.has-vivid-red-border-color{border-color:var(--wp--preset--color--vivid-red) !important;}.has-luminous-vivid-orange-border-color{border-color:var(--wp--preset--color--luminous-vivid-orange) !important;}.has-luminous-vivid-amber-border-color{border-color:var(--wp--preset--color--luminous-vivid-amber) !important;}.has-light-green-cyan-border-color{border-color:var(--wp--preset--color--light-green-cyan) !important;}.has-vivid-green-cyan-border-color{border-color:var(--wp--preset--color--vivid-green-cyan) !important;}.has-pale-cyan-blue-border-color{border-color:var(--wp--preset--color--pale-cyan-blue) !important;}.has-vivid-cyan-blue-border-color{border-color:var(--wp--preset--color--vivid-cyan-blue) !important;}.has-vivid-purple-border-color{border-color:var(--wp--preset--color--vivid-purple) !important;}.has-tft-blue-border-color{border-color:var(--wp--preset--color--tft-blue) !important;}.has-tft-red-border-color{border-color:var(--wp--preset--color--tft-red) !important;}.has-tft-dark-gray-border-color{border-color:var(--wp--preset--color--tft-dark-gray) !important;}.has-tft-gray-border-color{border-color:var(--wp--preset--color--tft-gray) !important;}.has-vivid-cyan-blue-to-vivid-purple-gradient-background{background:var(--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple) !important;}.has-light-green-cyan-to-vivid-green-cyan-gradient-background{background:var(--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan) !important;}.has-luminous-vivid-amber-to-luminous-vivid-orange-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange) !important;}.has-luminous-vivid-orange-to-vivid-red-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-orange-to-vivid-red) !important;}.has-very-light-gray-to-cyan-bluish-gray-gradient-background{background:var(--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray) !important;}.has-cool-to-warm-spectrum-gradient-background{background:var(--wp--preset--gradient--cool-to-warm-spectrum) !important;}.has-blush-light-purple-gradient-background{background:var(--wp--preset--gradient--blush-light-purple) !important;}.has-blush-bordeaux-gradient-background{background:var(--wp--preset--gradient--blush-bordeaux) !important;}.has-luminous-dusk-gradient-background{background:var(--wp--preset--gradient--luminous-dusk) !important;}.has-pale-ocean-gradient-background{background:var(--wp--preset--gradient--pale-ocean) !important;}.has-electric-grass-gradient-background{background:var(--wp--preset--gradient--electric-grass) !important;}.has-midnight-gradient-background{background:var(--wp--preset--gradient--midnight) !important;}.has-small-font-size{font-size:var(--wp--preset--font-size--small) !important;}.has-medium-font-size{font-size:var(--wp--preset--font-size--medium) !important;}.has-large-font-size{font-size:var(--wp--preset--font-size--large) !important;}.has-x-large-font-size{font-size:var(--wp--preset--font-size--x-large) !important;}.has-normal-font-size{font-size:var(--wp--preset--font-size--normal) !important;}.has-big-font-size{font-size:var(--wp--preset--font-size--big) !important;}.has-swmc-cabin-font-family{font-family:var(--wp--preset--font-family--swmc-cabin) !important;}.has-swmc-bitter-font-family{font-family:var(--wp--preset--font-family--swmc-bitter) !important;}.has-inter-font-family{font-family:var(--wp--preset--font-family--inter) !important;}.has-cardo-font-family{font-family:var(--wp--preset--font-family--cardo) !important;}:where(.wp-block-post-template.is-layout-flex){gap:1.25em;}:where(.wp-block-post-template.is-layout-grid){gap:1.25em;}:where(.wp-block-columns.is-layout-flex){gap:2em;}:where(.wp-block-columns.is-layout-grid){gap:2em;}:root :where(.wp-block-pullquote){font-size:1.5em;line-height:1.6;}.woocommerce form .form-row .required{visibility:visible;}:root{--global-kb-font-size-sm:clamp(.8rem,.73rem + .217vw,.9rem);--global-kb-font-size-md:clamp(1.1rem,.995rem + .326vw,1.25rem);--global-kb-font-size-lg:clamp(1.75rem,1.576rem + .543vw,2rem);--global-kb-font-size-xl:clamp(2.25rem,1.728rem + 1.63vw,3rem);--global-kb-font-size-xxl:clamp(2.5rem,1.456rem + 3.26vw,4rem);--global-kb-font-size-xxxl:clamp(2.75rem,.489rem + 7.065vw,6rem);}:root{--global-palette1:#3182ce;--global-palette2:#2b6cb0;--global-palette3:#1a202c;--global-palette4:#2d3748;--global-palette5:#4a5568;--global-palette6:#718096;--global-palette7:#edf2f7;--global-palette8:#f7fafc;--global-palette9:#fff;}.epyt-gallery-thumb{width:33.333%;}.searchandfilter>ul>li[data-sf-field-input-type="checkbox"]:not(:has(li)),.searchandfilter>ul>li[data-sf-field-input-type="radio"]:not(:has(li + li)),.searchandfilter>ul>li[data-sf-field-input-type="select"]:not(:has(option + option)){display:none;}li[data-sf-field-input-type="select"]{padding-bottom:0;padding-bottom:0 !important;}.woocommerce-shop .searchandfilter>ul>li[class^="sf-field-taxonomy-pa_"]{display:none;}a.woocommerce-print-products-pdf-link{margin-left:.25em;}.sf-input-checkbox{display:inline-block !important;width:20px !important;}.sf-label-checkbox{display:inline-block !important;font-size:14px;}#my_custom_sidebar{flex:0 0 250px;}.header-extras .button{background-color:#ef4035;border-radius:5px;padding:7px 10px;color:white;font-size:14px;text-transform:capitalize;text-decoration:none;transition:background-color .05s ease;border:1px solid white;box-shadow:none;transform:none;}.header-extras .button:hover{color:#ef4035;background-color:rgba(255,255,255,1);border:1px;font-size:14px;box-shadow:none;transform:none;}#menu-item-23138{background-color:#ef4035;border:none;border-radius:5px;padding:0;margin:2px 4px;}#menu-item-23138 a{display:block;width:100px;height:16px;background-image:url("https://cdn-ilbjckn.nitrocdn.com/OxxwBaWnjLAxzGKfRxIZhICcaLoVazYG/assets/images/optimized/rev-784e4f1/tft.com/wp-content/uploads/2024/09/health-logo-top-nav-size.png");background-size:95% auto;background-repeat:no-repeat;background-position:center;text-indent:-9999px;padding:15px 0;margin:0;box-sizing:border-box;transition:background-size .2s ease;}#menu-item-23138 a.nitro-lazy{background-image:none !important;}#menu-item-23138 a:hover{background-image:url("https://cdn-ilbjckn.nitrocdn.com/OxxwBaWnjLAxzGKfRxIZhICcaLoVazYG/assets/images/optimized/rev-784e4f1/tft.com/wp-content/uploads/2024/09/health-logo-top-nav-size.png") !important;background-size:105% auto !important;background-position:center !important;text-indent:-9999px !important;background-color:#ef4035 !important;border:none !important;padding:15px 0 !important;margin:0 !important;box-shadow:none !important;box-sizing:border-box !important;}#menu-item-23138 a:hover.nitro-lazy{background-image:none !important;}.demo a.button{background-color:#ef4035;border-radius:10px;padding:7px 10px;color:white;font-size:14px;text-transform:capitalize;border:1px solid white;text-decoration:none;transition:background-color .05s ease-in-out,border .05s ease-in-out;}.demo a.button:hover{background-color:#d73c2f;border:1px solid white;}@media (max-width: 768px){.trending-report-logo{max-width:60% !important;}.footer-bravo{display:flex;flex-direction:column;align-items:center;}.footer-social{margin-top:10px;}.footer-bottom-inner{margin-bottom:75px;}.mini-menu{text-align:center;margin-top:10px;}}

EF1 RC Monitor, 200 GPM (750 LPM) – 1.5″ (38 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 1.5″ (38 mm) BSPM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver

Specifications

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance

Collection

Brand

Measurement Range

Inlet Connection

Outlet Connection

Type

Target Flow

Target Pressure

Hose Connection

Outlet Connection

Configuration

Target Flow

Application

Max Flow Rate

Controls

Supply Connection

Outlet Connection

Extension Options

Bundle Options

More Options

Type

Truck-Side

Street-Side

Controls

Pressure Relief Valve

Type

Hydrant Connection

Hose Inlet

Hose Outlet

More Options

Stay Ahead of the Heat!

EF1 RC Monitor, 200 GPM (750 LPM) – 1.5″ (38 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 1.5″ (38 mm) BSPM Rigid Outlet, 12/24 VDC Acc. Power, RS485, Silver

Specifications

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance

Related products

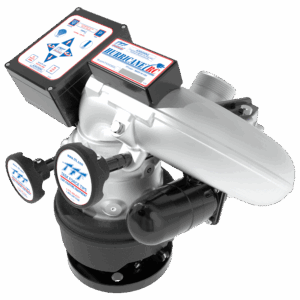

Hurricane RC 1250 GPM (4500 LPM) Monitor, Standard – 3″ (75 mm) ANSI 150/DN100 PN16 Rigid Flange Inlet, 2.5″ (65 mm) NHM Rigid Outlet, 12 VDC Acc. Power, RS485, Silver
