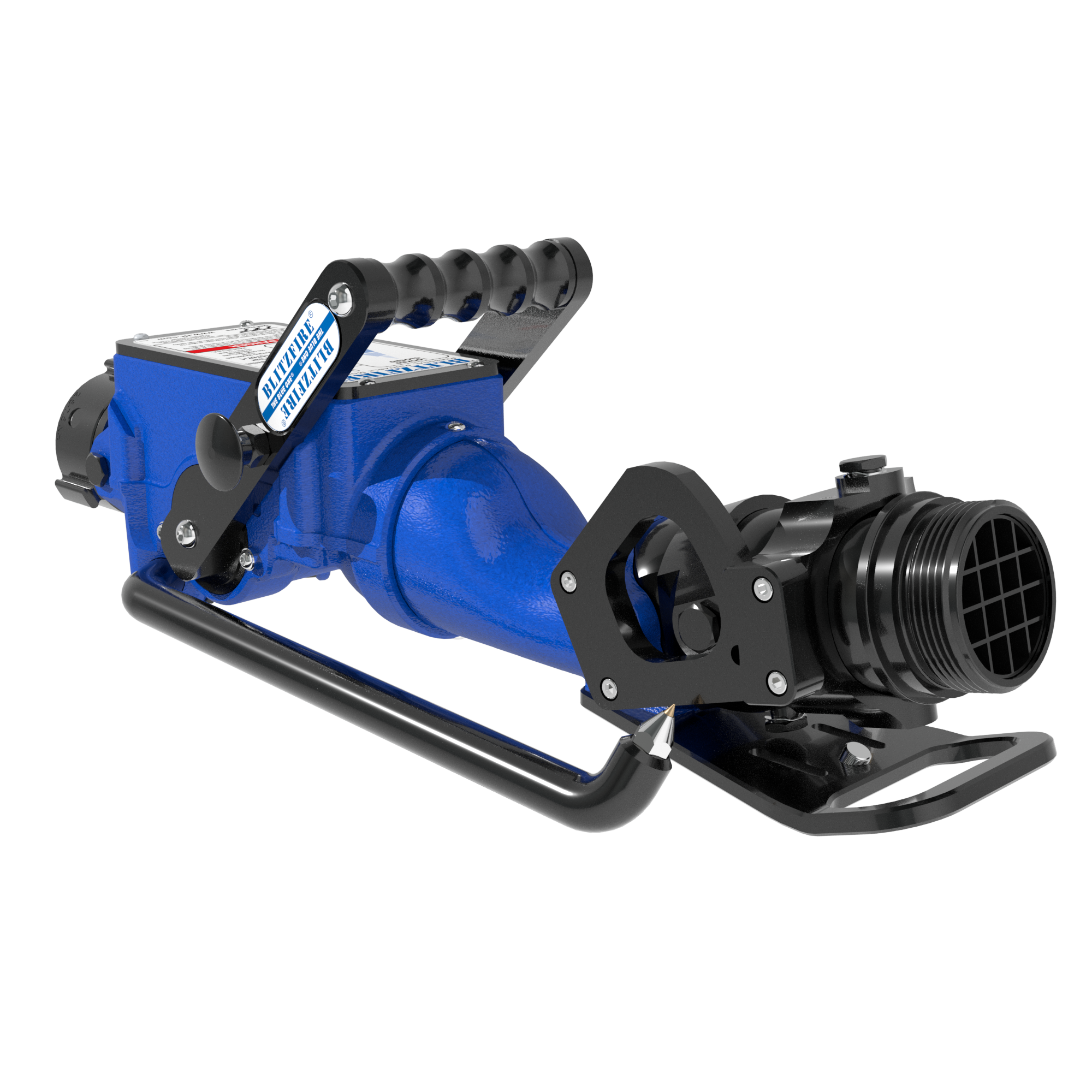

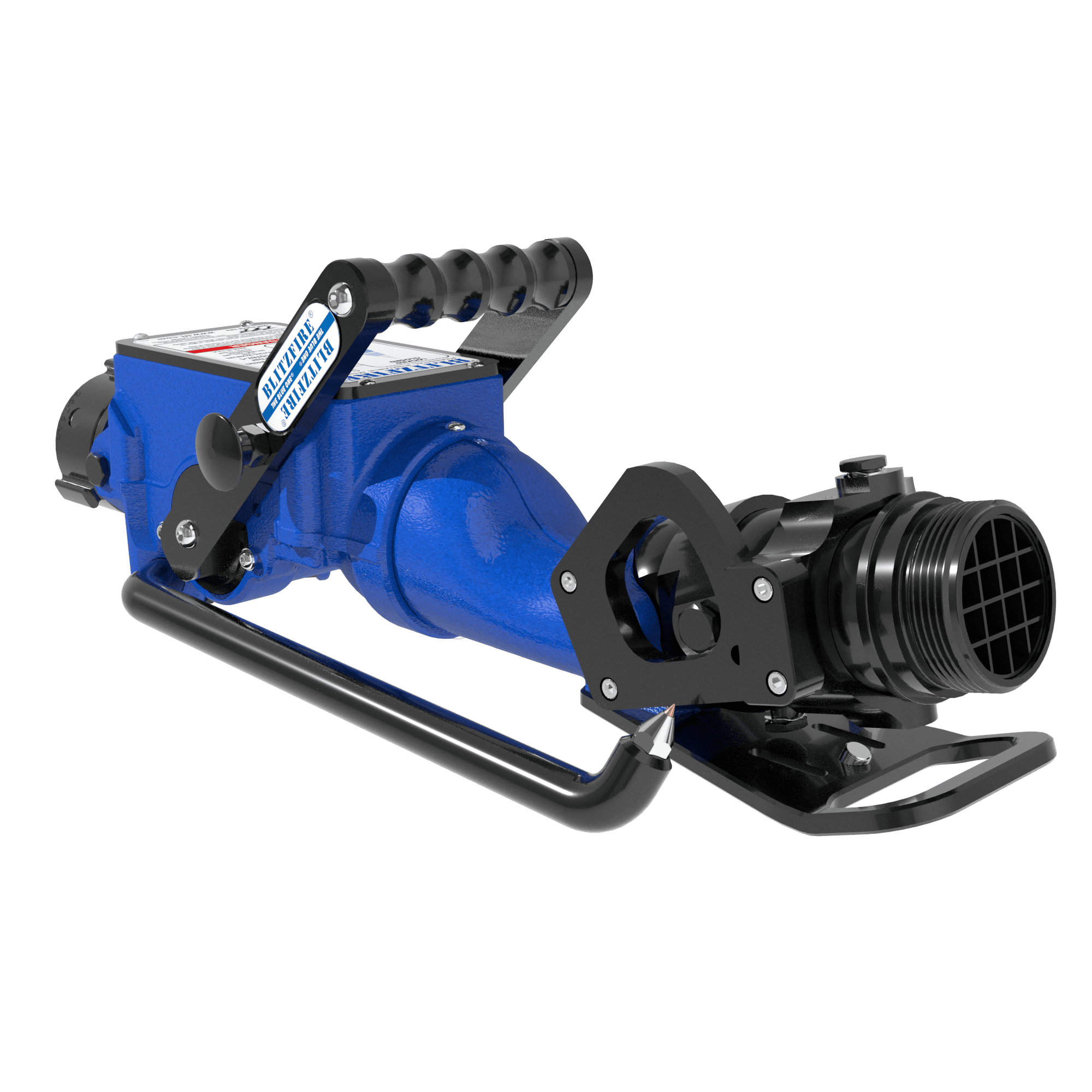

BlitzFire Portable Monitor – 65 mm BSPF Swivel Rocker Inlet, 65 mm BSPM Rigid Outlet

$4,967.00

image_pdf
SKU: XX132A-HE Category:

The Best Ground Monitor Money Can Buy

The BlitzFire® is an adaptable, high-performance portable water monitor, ideal for fire crews facing limited manpower or challenging firefighting conditions. Delivering up to 500 GPM (2000 LPM) with full control over water flow and attack angles, the BlitzFire® can be used in either attended or unattended mode. Its exclusive safety shutoff valve ensures operation under the safest possible conditions, while its compatibility with various nozzles and foam systems adds versatility to its use. Whether you need to adjust your stream angle to reach high or low locations, the BlitzFire® is a reliable, efficient solution that maximizes fireground capabilities.
Storage Bracket Sold Separately

Key Features:

  • Flow Rate: Flows up to 500 GPM (2000 LPM) for powerful water delivery
  • Safety Shutoff Valve: Automatically shuts off water in case of unintentional monitor movement
  • Adjustable Attack Angles: 10°-46° for standard models; up to 86° for high elevation units
  • Slide Valve Control: Provides complete control with six distinct detent positions for precise stream management
  • Foam Compatibility: Compatible with various foam systems for enhanced fire suppression
  • Optional Oscillation: Covers a range of 20°, 30°, or 40° without manual adjustment for effective cooling and exposure protection
  • Carbide-Tipped Legs: Offers enhanced stability on uneven terrain
  • Compact Storage: Easily mounted or stored in apparatus compartments for rapid deployment

All Prices in USD

Specifications

Weight 24.500 lbs
Package

Oscillation

Safety Shutoff

Color

High Elevation

N

Brand

BlitzFire®

Bundle

Monitor Only

Monitor Type

Ground Attack

Monitor Supply Size (Imp)

2.5"

Monitor Supply Size (Met)

65 mm

Monitor Supply Type

BSP Female

Monitor Supply Style

Rocker

Monitor Supply Swivel

Swivel

Monitor Horizontal Range

±20°

Monitor Vertical Range

10° – 86°

Monitor Supply Inlets

Single

Monitor Outlet Size (Imp)

2.5"

Monitor Outlet Size (Met)

65 mm

Monitor Outlet Type

BSP Male

Monitor Outlet Style

Male Threads

Monitor Outlet Swivel

Rigid

Max Flow Rate (GPM)

500 GPM

Max Flow Rate (LPM)

2000 LPM

Bundle Stream Straightener

Integrated

Monitor Valve Type

Slide Valve

Safety Features

Safety Shutoff & Tie Down Strap

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance

Certifications & Approvals
