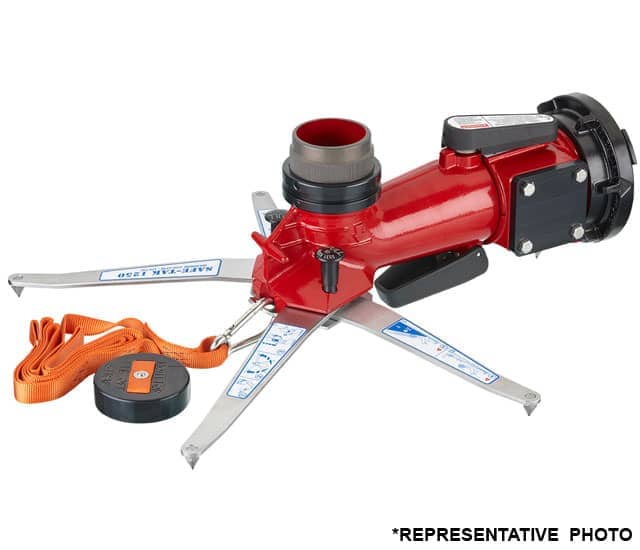

CrossFire SafeTak Portable Monitor Base – 4″ (100 mm) Storz Swivel Inlet

$3,602.00

image_pdf
SKU: XFH-1SP Category:

Safe, Secure & Portable Monitor Base

CrossFire® Monitor Bases are engineered for secure and stable setup on various terrains, featuring stainless steel carbide-tipped legs, safety inlet(s) and a safety strap for even more safety and security. Designed with single or dual inlets and multiple connection options, these bases ensure easy portability and reliable performance in demanding conditions, supporting flows up to 1250 GPM (4500 LPM).
Monitor Top & Nozzles Sold Separately

Key Features :

  • Sturdy Base : Stainless steel, carbide-tipped legs offer stability on rugged terrains
  • Compact Storage : Foldable legs for easy compartment storage or pre-connected carrying
  • Connection Options : Available with single or dual swivel inlets in various connection types for your response district
  • Safety Features : Includes safety inlets, an anchor strap, and storage cap for added security
  • Quick Setup : Designed for rapid connection and deployment during emergencies
  • High Flow Rates : Supports up to 1250 GPM (4500 LPM) for robust fire suppression

All Prices in USD

Specifications

Weight 30.200 lbs
Package

Oscillation

Safety Shutoff

Color

High Elevation

N

Brand

CrossFire®

Max GPM

1250 GPM

Max LPM

4500 LPM

Safety

Safety Inlet & Tie Down Strap

Bundle

Monitor Base

Portable Monitor Valve Type

Valveless

Portable Monitor Type

Monitor Base

Monitor Hose Inlets

Single

Monitor Hose Size (Imp)

4"

Monitor Hose Size (Met)

100 mm

Monitor Hose Type

STORZ

Monitor Hose Style

Quick-Connect

Monitor Hose Swivel

Swivel

Title Count

72

Documents

Technical Specifications and Drawings

Service Procedures

Instructions For Installation, Safe Operation and Maintenance
