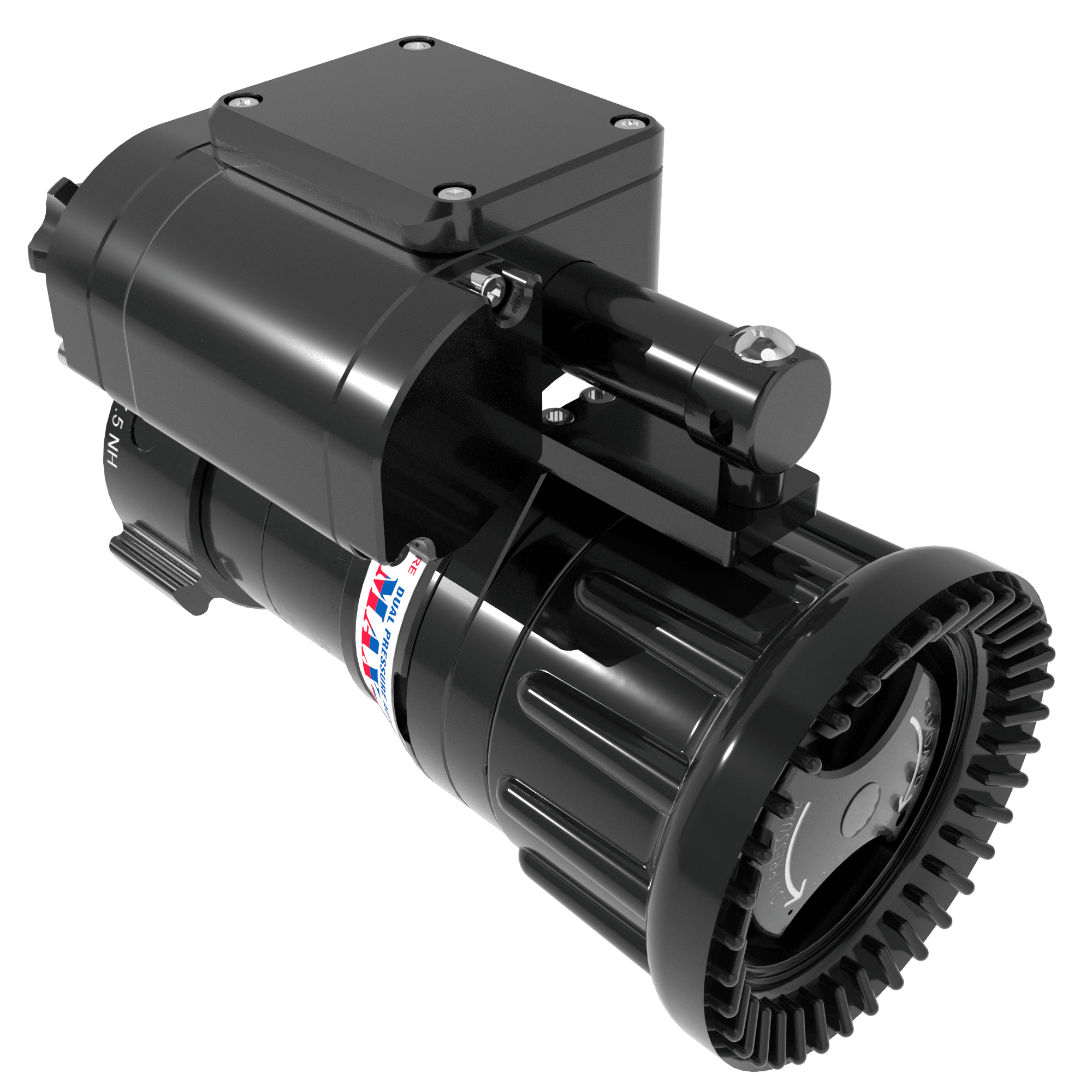

Max-Force RC Automatic Masterstream Nozzle – 100-500 GPM (400-2000 LPM) @ 55/100 PSI (4/7 Bar), 2.5″ (65 mm) NHF Rigid Rocker Inlet, 2-Wire Connection

Name: Max-Force RC Automatic Masterstream Nozzle - 100-500 GPM (400-2000 LPM) @ 55/100 PSI (4/7 Bar), 2.5" (65 mm) NHF Rigid Rocker Inlet, 2-Wire Connection - Task Force Tips
Brand: Max-Force™
SKU: MD-ER-12A
Availability: InStock

Call for Price: 219-462-6161

SKU: MD-ER-12A Category: Masterstream Nozzles

Versatile Masterstream Nozzle Performance

Max-Force™ nozzles deliver precision, adaptability, and power, ensuring efficient water delivery and enhanced fire suppression control.

Key Features:

Dual-Pressure Automatic: Max-Force™ offers standard (100 PSI/7 Bar) and low-pressure (55 PSI/4 Bar) settings for versatile firefighting
Wide Flow Range: Flow rates from 100 to 500 GPM (400 to 2000 LPM) for both initial attack and sustained operations
Stream Pattern Control: Switch seamlessly between a wide fog and straight stream for adaptable fire suppression
Built-In Ring: Integrated ring ensures smooth transitions between stream patterns
Remote & Manual Control: Models available with manual controls or remote operation via electric systems
Internal Stream Straightener: Ensures accurate and consistent water delivery for effective firefighting
Monitor Compatibility: Designed for use with portable monitors like BlitzFire® and BlitzForce™

All Prices in USD

Specifications
Documents

Specifications

Weight	10.800 lbs
Remote Control	N
Color	Black/Red/Blue
Brand	Max-Force™
Nozzle Type	Automatic
Nozzle Valve Style	Sold Separately
Nozzle Teeth	Rubber Teeth
Nozzle Style	Tip Only
Target Nozzle Flow (Imp)	100-500 GPM
Target Nozzle Flow (Met)	400-2000 LPM
Target Nozzle Pressure (Imp)	55/100 PSI
Target Nozzle Pressure (Bar)	4/7 Bar
Nozzle Shaper Actuation	Remote Control
Nozzle Power	12/24 VDC
Nozzle Power Connection	Electric Remote 2-Wire
Target Nozzle Pressure (KPA)	400/700 kPa
Nozzle Inlet Size (Imp)	2.5"
Nozzle Inlet Size (Met)	65 mm
Nozzle Inlet Connection Type	NH Female
Nozzle Inlet Coupling Style	Rocker
Nozzle Inlet Coupling Swivel	Rigid

Documents

Technical Specifications and Drawings

Service Procedures

Instructions For Installation, Safe Operation and Maintenance
