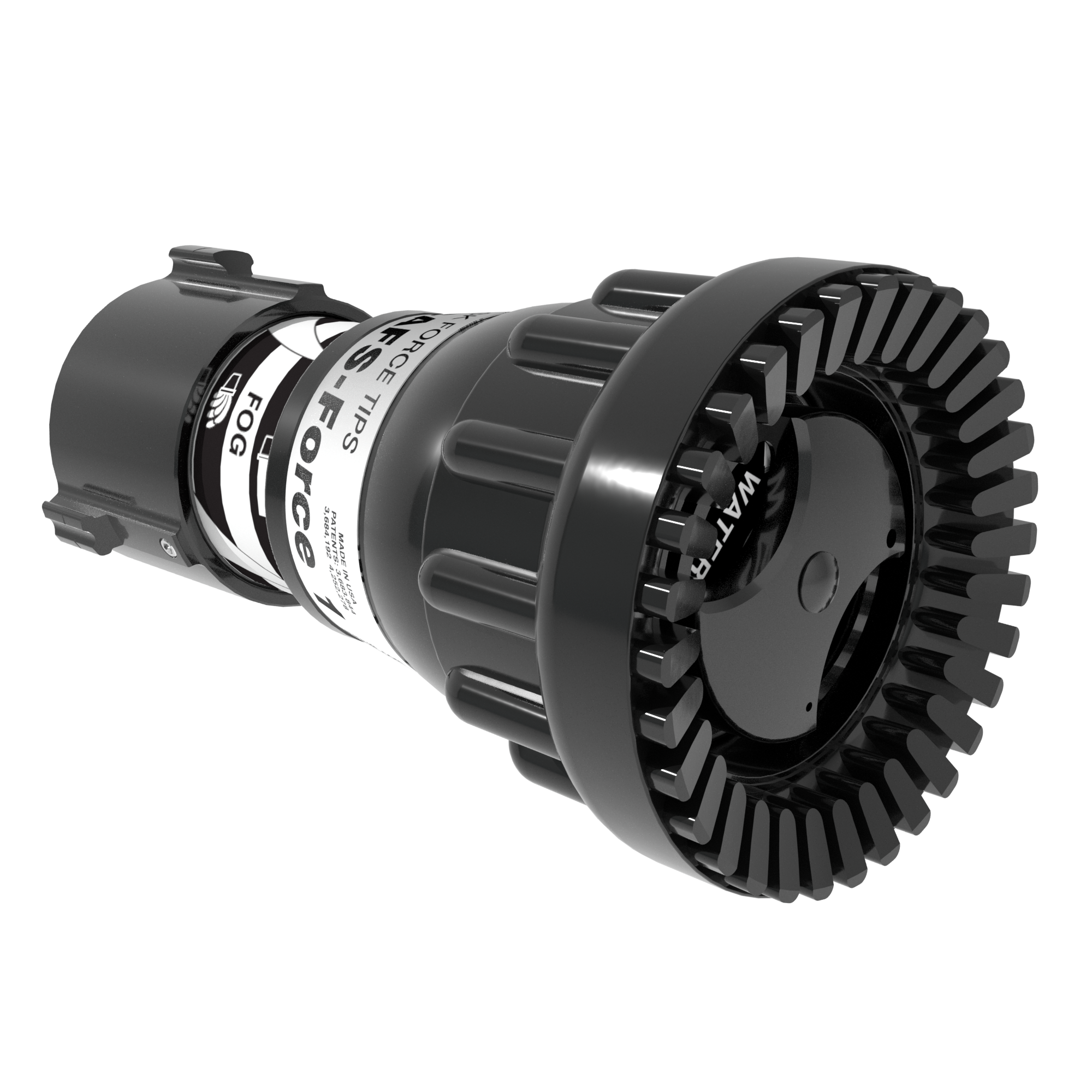

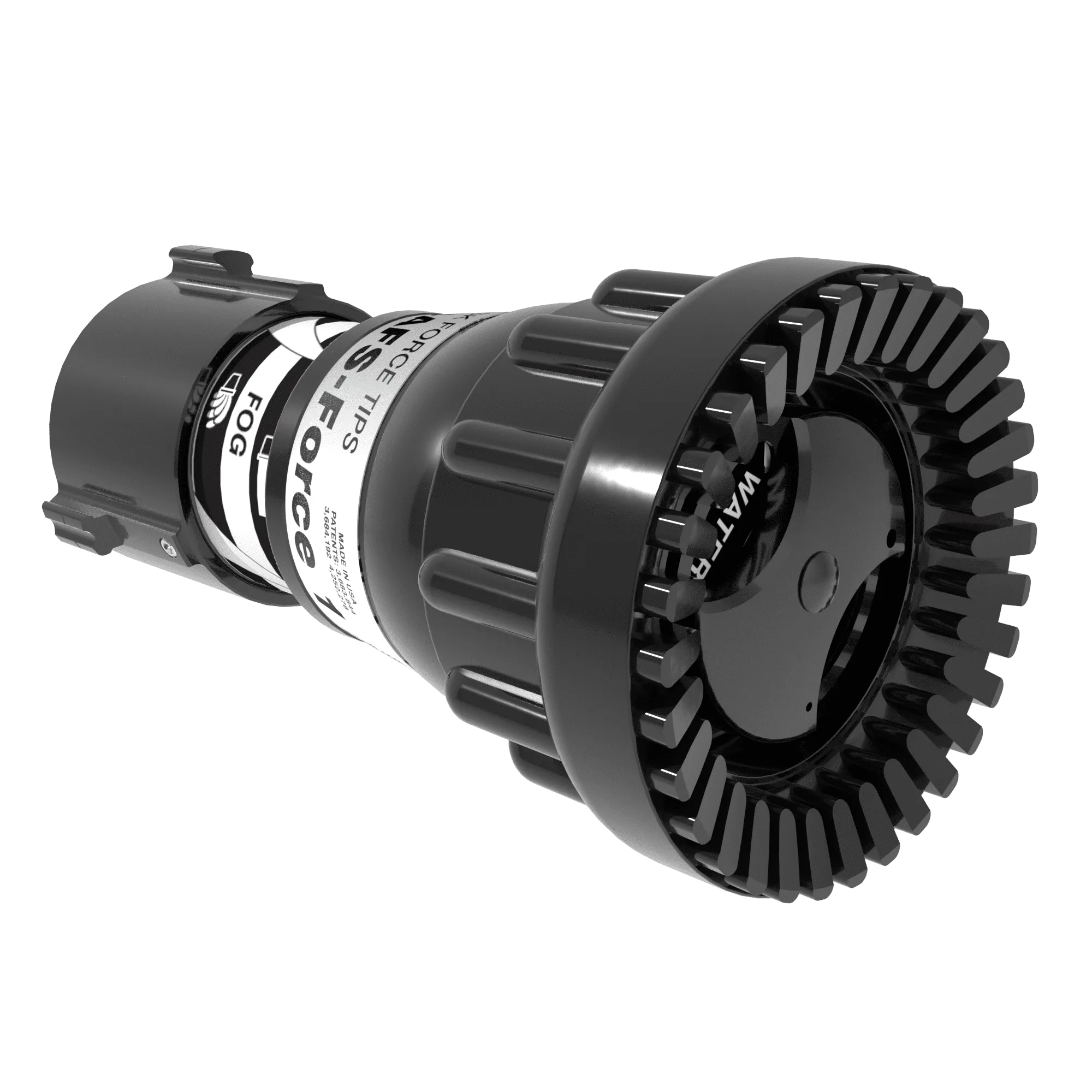

CAFS-FORCE1 TIP 1.5″NHF

$1,331.00

image_pdf
SKU: HMDC-TO Category:

70-200 GPM @ 75 PSI DUAL PRESSURE

The ONLY automatic nozzle combination designed specifically for Compressed Air Foam (CAFS) and water applications, CAFS-Force is engineered to provide optimal foam stream performance, as well as offering low pressure nozzle operations when using water alone. The CAFS-Force 1 tip features an automatic dual-pressure control with a water flow capacity of 70-200 gpm @ 75 psi (265-757 l/min @ 5 bar) that may be switched from standard low pressure (water application) to CAFS mode. 1.5″ NH (38 mm) rocker lug coupling is standard.

All Prices in USD

Specifications

Weight 2.900 lbs
Operating Pressure

Fog Teeth

Type

Automatic

Inlet Coupling Style

Remote Control

N

Valve Design

Pistol Grip

Body Size

1.5" (38 mm)

Break-Apart Style

Tip Only

Pressure Mode

Flow Rate

Style

Bumper Material

Rubber – bonded

Inlet Coupling Swivel

Straight Tip

N

Documents

Technical Specifications and Drawings

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
