HANDLINE PLAYPIPE 2.5″F

SKU H-2BLITZ Category

Call for Price: 219-462-6161

Print, Post, or Pass It On!

SKU H-2BLITZ Category
Email
Facebook
LinkedIn

95-300 GPM @ 100 PSI

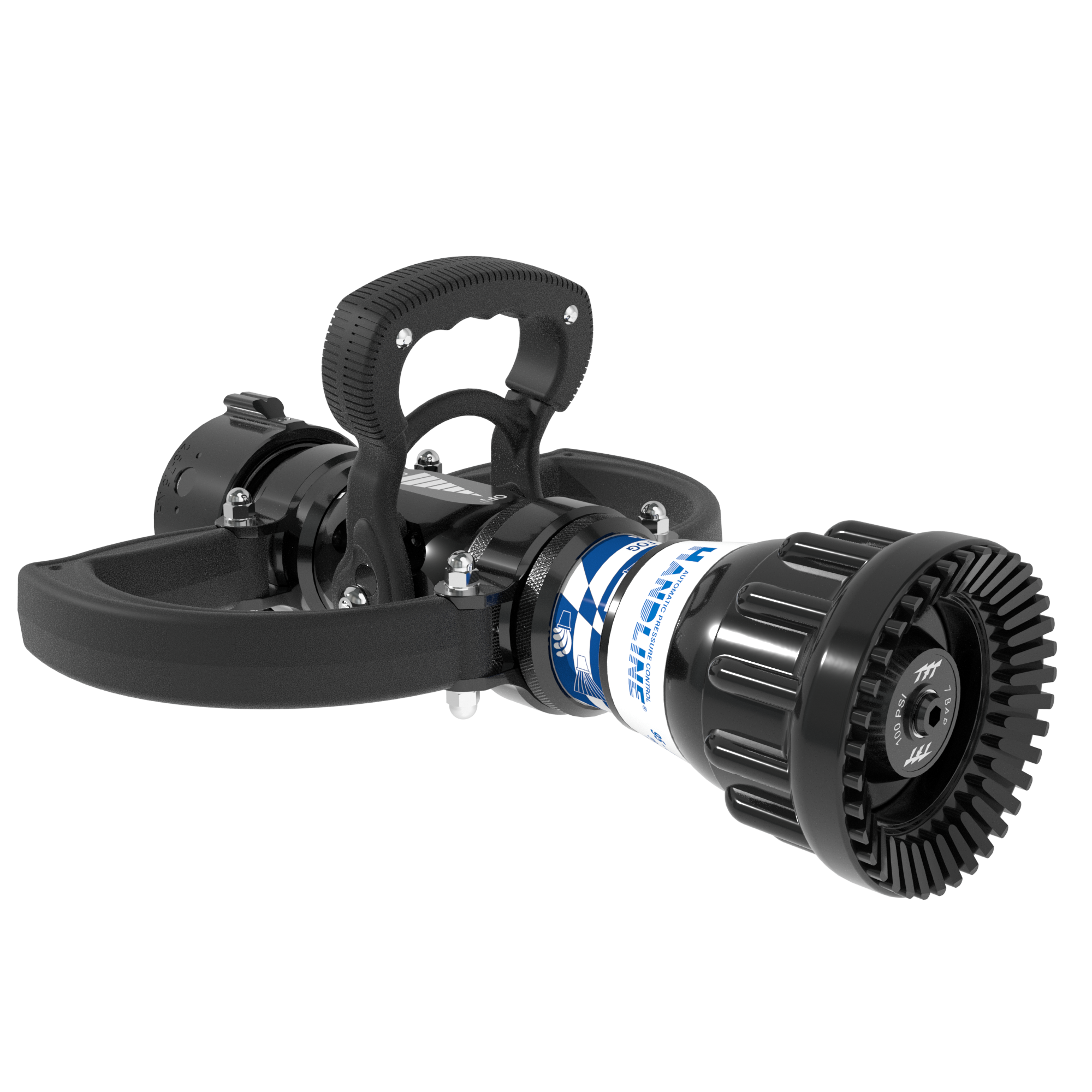

Smallest, most compact nozzle/playpipe combination available for use on 2.5″ (65 mm) or 3″ (75 mm) lines. Automatic 100 psi (7 bar) pressure control with a flow capacity of 95-300 gpm (360-1150 l/min). Includes flush without shutting down, patented slide-type valve for turbulence-free flow control, six detent flow positions, molded rubber teeth for full-fill “power fog” pattern, and “Gasket Grabber” inlet screen. Lightweight hard coat anodized aluminum materials for maximum resistance to corrosion and wear. Nozzle is attached to valve and is not removable. Rubber coated handles are designed to reduce fatigue. 2.5″ NH (65 mm) rocker lug full-time swivel coupling is standard.

Specifications

Weight 12.000 lbs
Valve Design

Flow Rate

Inlet Coupling Style

Body Size

2.5" (65 mm)

Inlet Coupling Swivel

Style

Pressure Mode

Type

Automatic

Bumper Material

Rubber – bonded

Fog Teeth

Operating Pressure

Reviews

There are no reviews yet.

Be the first to review “HANDLINE PLAYPIPE 2.5″F”

Your email address will not be published. Required fields are marked *

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
