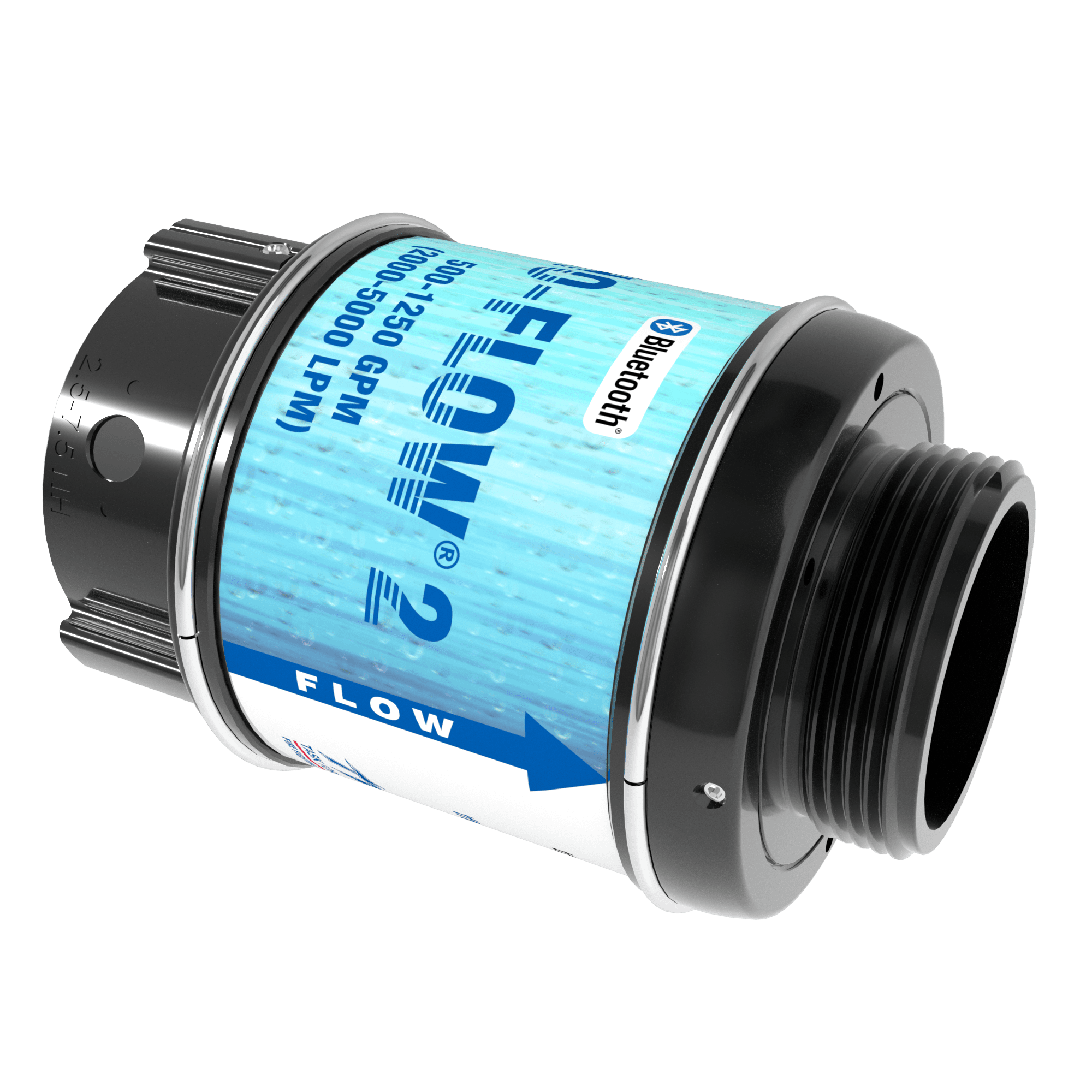

SHO-FLOW 2: 2.5” NPSHF X 2.5” NPSHM

Call for Price: 219-462-6161

image_pdf
SKU: EFJ-IJIJ1250 Category:

500-1250 GPM (2000-5000 LPM)

TFT’s SHO-FLOW 2 HIGH FLOW BLUETOOTH® generates its own power using an unobstructed water driven turbine, with a built in stream straightener, that will pass debris up to 1.7″ (43 mm) in diameter. Starting at 500 GPM (2000 l/min), the turbine generates power needed to supply a BLUETOOTH® connection to any smart device. Choose units you want displayed from your smart device; gpm, gps, l/min or l/sec. Full flow range 500 – 1250 gpm (8.3 – 20.8 gps) (2000 – 5000 l/min) (31.6 – 75 l/sec)

All Prices in USD

Specifications

Weight 4.600 lbs
Outlet Connection Type

Communication Wireless

Inlet Coupling Style

Outlet Coupling Style

Outlet Coupling Swivel

Waterway Size

Accuracy

+/-2.5% Full Scale

Inlet Connection Type

Inlet

Maximum Operating Pressure

Flow Range

Outlet

Inlet Coupling Swivel

Documents

Technical Specifications and Drawings

Instructions For Installation, Safe Operation and Maintenance
