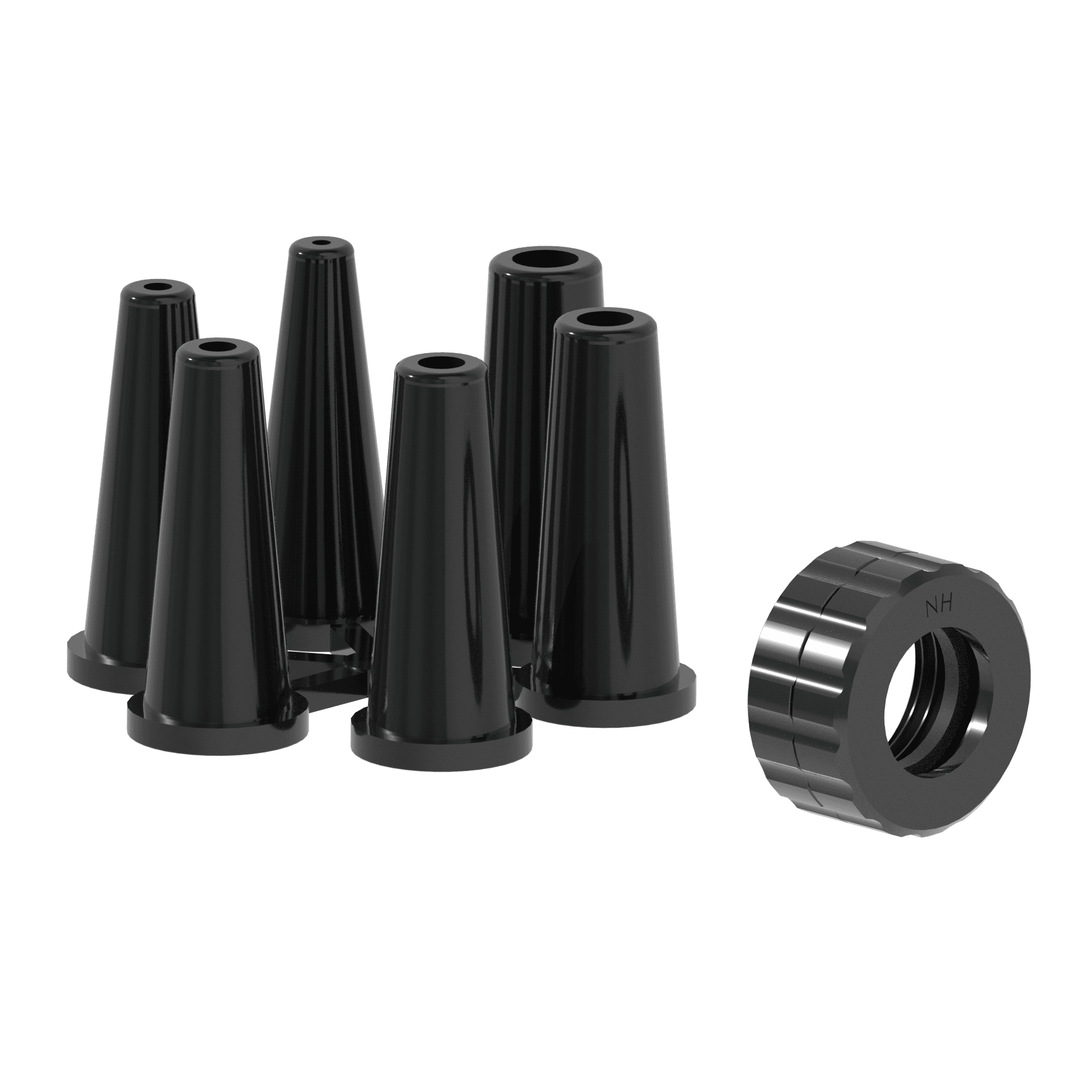

Smooth Bore Nozzle Six Tip Set (1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″) – 1″ NHF Rigid Inlet

Call for Price: 219-462-6161

image_pdf
SKU: DSB Category:

1″ Smooth Bore Handline Nozzle Tip Sets

Experience unparalleled performance with our 1.0″ Smooth Bore Handline Nozzle Tip Sets, designed for maximum reach and penetration on the fireground. These sets include a range of tip sizes from 1/8″ to 7/16″, allowing you to choose the perfect flow rate and pressure for any firefighting scenario. Each tip is precision-engineered from high-quality aluminum alloy and hard coat anodized for exceptional durability. The recessed orifice edge and protective aluminum bumper ensure consistent stream quality, even in the toughest conditions. Our tips come with an easy-to-read pressure and flow chart, laser engraved for quick reference during critical moments.

Key Features:

  • Set Includes Six Tips: 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″
  • Inlet Options: Available with 1.0″ NHF or NPSHF inlets
  • High-Quality Construction: Aluminum alloy with hard coat anodizing
  • Enhanced Protection: Recessed orifice edge and aluminum bumper for added durability
  • Quick Reference: Laser-engraved pressure and flow chart for easy selection

All Prices in USD

Specifications

Weight 0.300 lbs
Pistol Grip

Remote Control

N

Color

Straight Tip

N

Brand

Smooth Bore

Nozzle Type

Smooth Bore

Nozzle Valve Style

Sold Separately

Nozzle Teeth

Toothless

Nozzle Style

Tip Set

Target Nozzle Flow (Imp)

3-40 GPM

Target Nozzle Flow (Met)

11-150 LPM

Target Nozzle Pressure (Imp)

50 PSI

Target Nozzle Pressure (Bar)

3.5 Bar

Target Nozzle Pressure (KPA)

350 KPA

Nozzle Hose Size (Imp)

1"

Nozzle Hose Size (Met)

25 mm

Nozzle Hose Connection Type

NH Female

Nozzle Hose Coupling Style

Threaded Collar

Nozzle Hose Coupling Swivel

Rigid

Nozzle Orifice Size (Imp)

1/8", 3/16", 1/4", 5/16", 3/8", 7/16"

Nozzle Orifice Size (Met)

3 mm, 5 mm, 6 mm, 8 mm, 10 mm, 11 mm

Product Length (Imp)

3.2"

Product Length (Met)

8.13 cm
