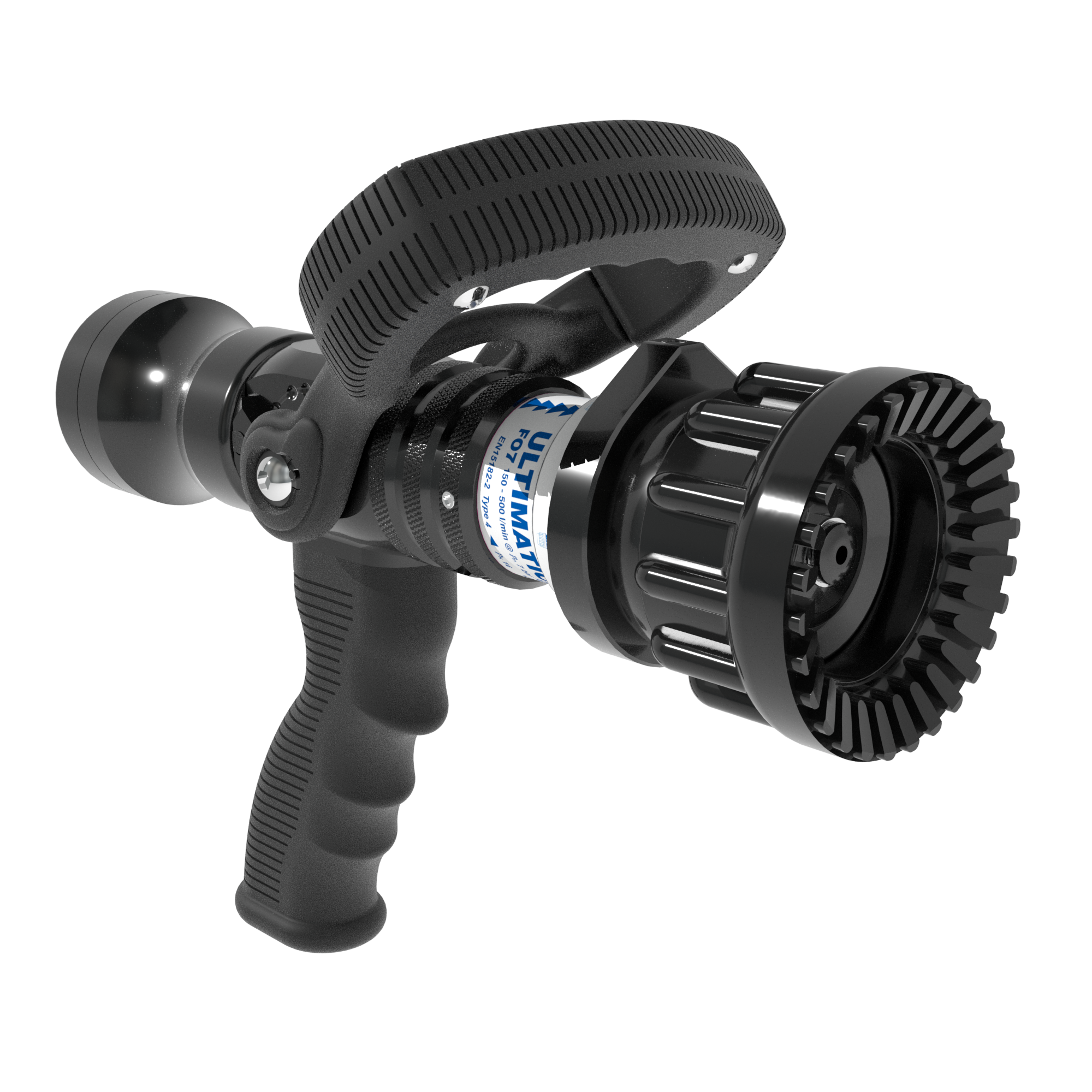

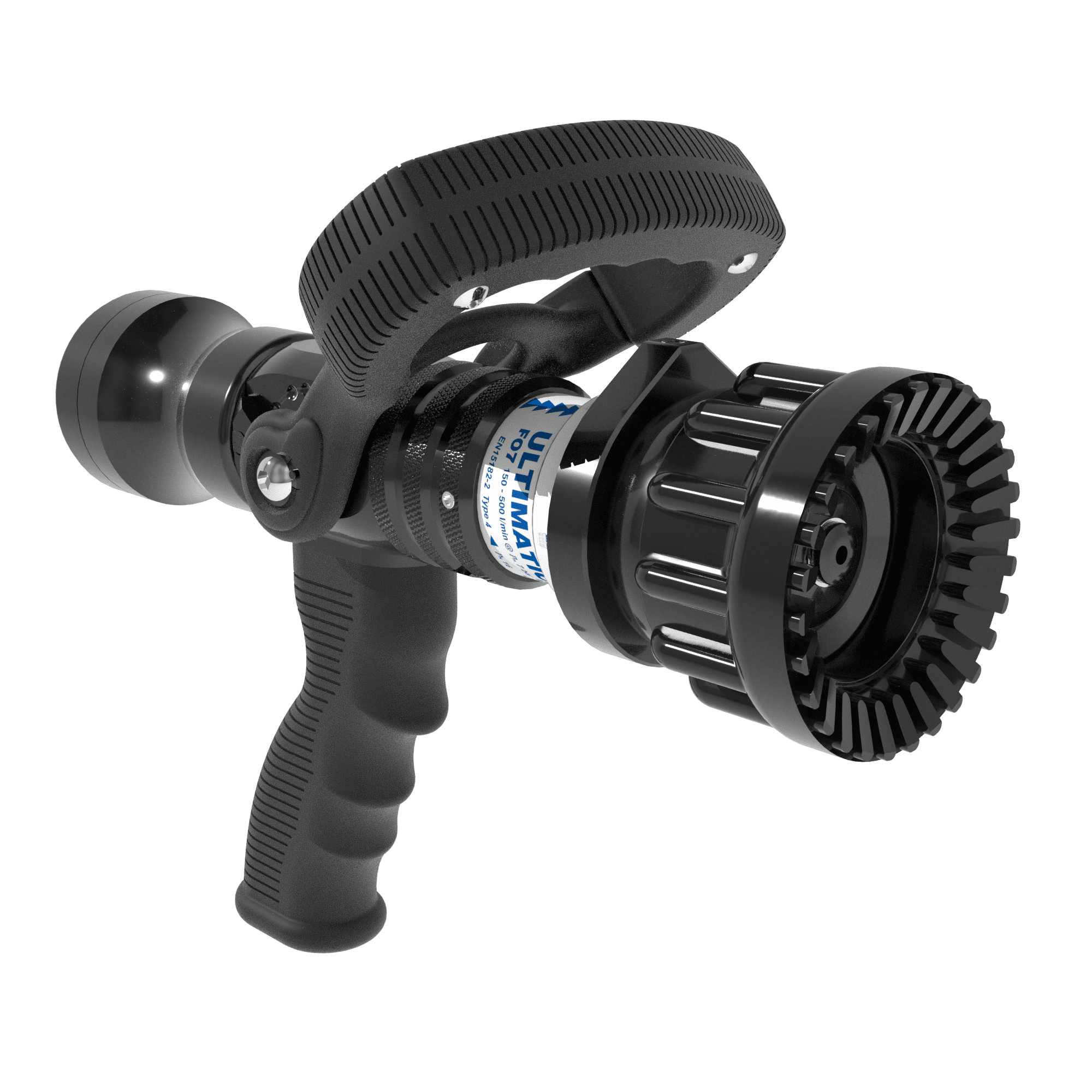

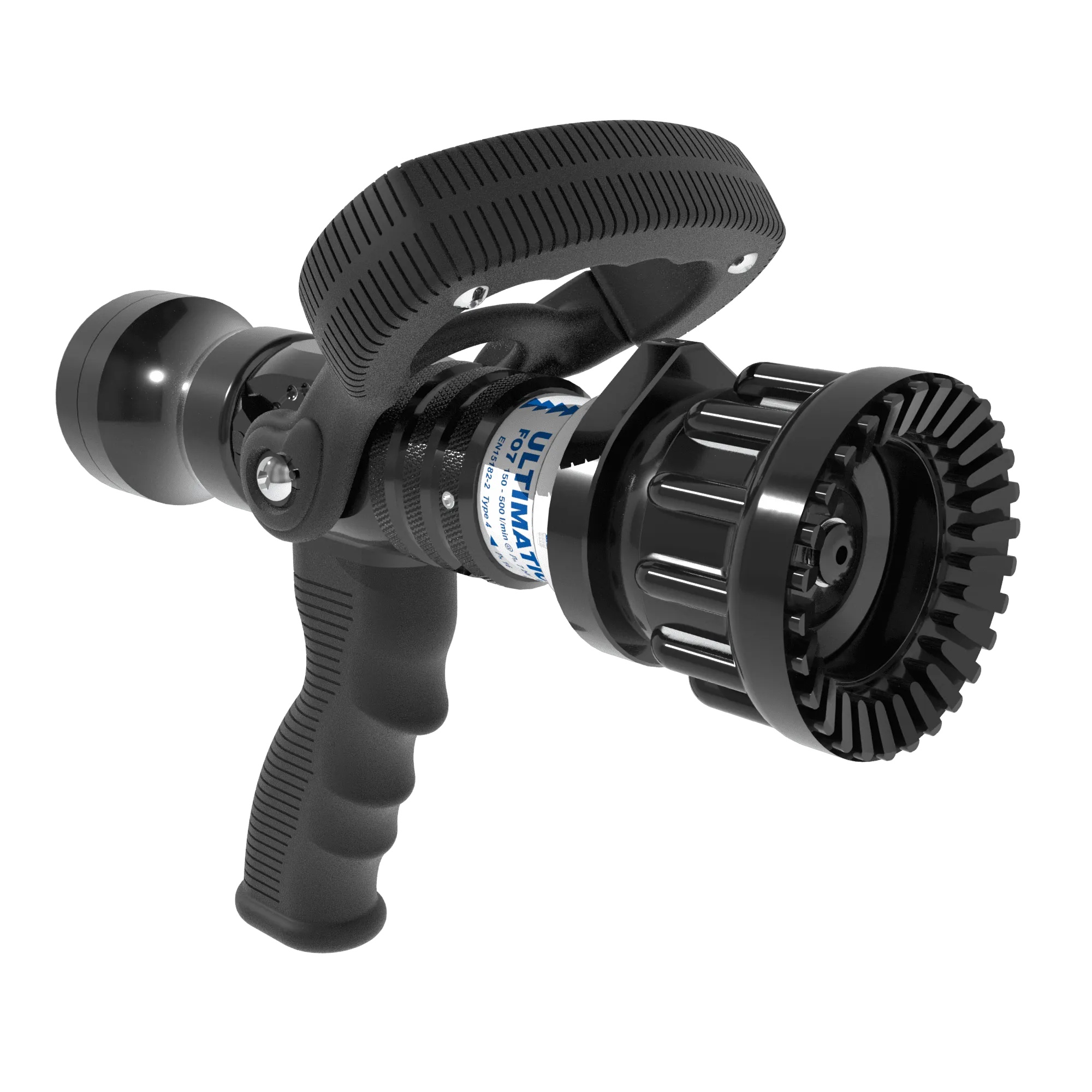

Ultimatic Automatic One-Piece FO7 Flashover Nozzle With Pistol Grip, Slide Valve – 150-500 LPM @ 7 Bar, 38 mm BSPF Swivel Inlet, Rubber Teeth

$1,348.00

image_pdf
SKU: BP20-058 Category:

High-Performance Automatic Firefighting Nozzles

The Ultimatic® series is a robust, automatic firefighting nozzle that delivers reliable, adjustable flow rate configuration for demanding fire ground scenarios. With a full assortment of flow-range options, Ultimatic® nozzles are ideal for discerning fire departments that are in pursuit of the most consistent attack package. Designed for quick and easy stream adjustments, these nozzles offer precision and power, with patented slide or trigger valve systems for dependable performance.

Key Features:

  • Automatic Flow Adjustment: Automatically adjusts flow rates to provide 10-125 GPM (40-500 LPM) for versatile firefighting applications
  • High & Low-Pressure Options: Available in both 100 PSI (7 bar) and 75 PSI (5 bar) models for tailored pressure needs
  • Dual Valve Styles: Choose between patented slide and trigger valves for precise stream control
  • Durable Construction: Built for rugged environments with options for rocker lug, knurled, and quick-connect inlets
  • Ergonomic Design: Available with pistol grip handles for enhanced control and ease of use
  • Foam Compatible: Works seamlessly with foam solutions, including specialized flashover nozzle options
  • Adaptable Stream Patterns: Adjustable from straight stream to dense fog with detent flow control for precision targeting
  • Hose Compatibility: Compatible with 1″ (25 mm) and 1.5″ (38 mm) hoses, and options for BSP, NH, and Storz connections

All Prices in USD

Specifications

Weight 3.000 lbs
Remote Control

N

Pistol Grip

Color

Straight Tip

N

Brand

Ultimatic®

Nozzle Type

Automatic

Nozzle Valve Style

Slide Valve

Nozzle Teeth

Fixed Rubber

Nozzle Style

One-Piece

Nozzle Grip

Pistol

Target Nozzle Flow (Imp)

40-130 GPM

Target Nozzle Flow (Met)

150-500 LPM

Target Nozzle Pressure (Imp)

100 PSI

Target Nozzle Pressure (Bar)

7 Bar

Target Nozzle Pressure (KPA)

700 KPA

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

BSP Female

Nozzle Hose Coupling Style

Knurled

Nozzle Hose Coupling Swivel

Swivel

Nozzle Pulsing & Flashover

Flashover Nozzle

Documents

Certifications & Approvals

Instructions For Installation, Safe Operation and Maintenance
