Gated Wye Quarter Turn Valve - Single 5&Quot; (125 Mm) Storz Swivel Inlet, Double 5&Quot; (125 Mm) Storz Swivel Outlets, Silver

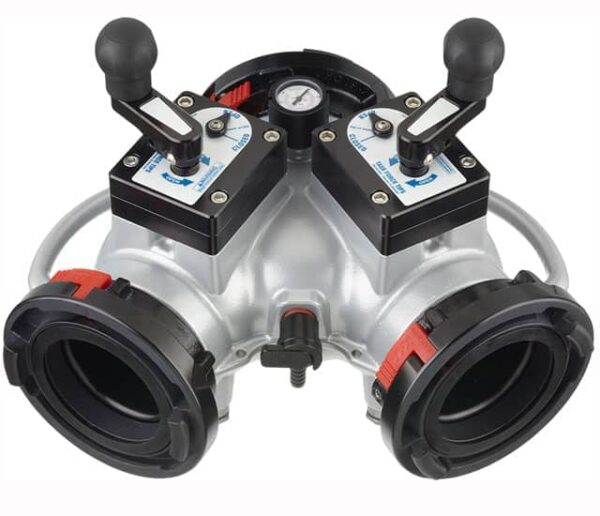

Gated Wye Quarter Turn Valve – Single 5″ (125 mm) Storz Swivel Inlet, Double 5″ (125 mm) Storz Swivel Outlets, Silver

Name: Gated Wye Quarter Turn Valve - Single 5" (125 mm) Storz Swivel Inlet, Double 5" (125 mm) Storz Swivel Outlets, Silver - Task Force Tips
SKU: AL22T2T0
Availability: InStock

Call for Price: 219-462-6161

SKU: AL22T2T0 Category: Wye & Siamese Valves

Split Water Supply Lines with Precision

The LDH Gated Wye is a lightweight, low friction-loss valve that can be used in many water distribution applications. Dual robust valve mechanisms from the TFT Ball Intake Valve are streamlined to a large waterway for the ultimate in versatility. Valve seats are field replaceable, devices include a 300 PSI pressure gage and quarter turn air vent and drain valve. Two robust carrying handles make for easy deployment. A polymer bearing ring prevents galvanic corrosion on LDH couplings.

All Prices in USD

Specifications
Documents

Specifications

Weight	40.500 lbs
Pressure Relief Valve	N
LDH Outlet	N
LDH Inlet	N
Color	Silver
Hose Valve Style	Gated Wye
Hose Valve Type	Quarter Turn
Hose Valve Flow Direction	Bi-Directional
Hose Valve Inlet Count	Single
Hose Valve Inlet Size (Imp)	5"
Hose Valve Inlet Size (Met)	125 mm
Hose Valve Inlet Type	Storz
Hose Valve Inlet Style	Quick-Connect
Hose Valve Inlet Swivel	Swivel
Hose Valve Outlet Count	Double
Hose Valve Outlet Size (Imp)	5"
Hose Valve Outlet Size (Met)	125 mm
Hose Valve Outlet Type	Storz
Hose Valve Outlet Style	Quick-Connect
Hose Valve Outlet Swivel	Swivel

Documents

Technical Specifications and Drawings

AL22T2T0 Item Specification

Instructions For Installation, Safe Operation and Maintenance

LDH GATED WYE Manual
